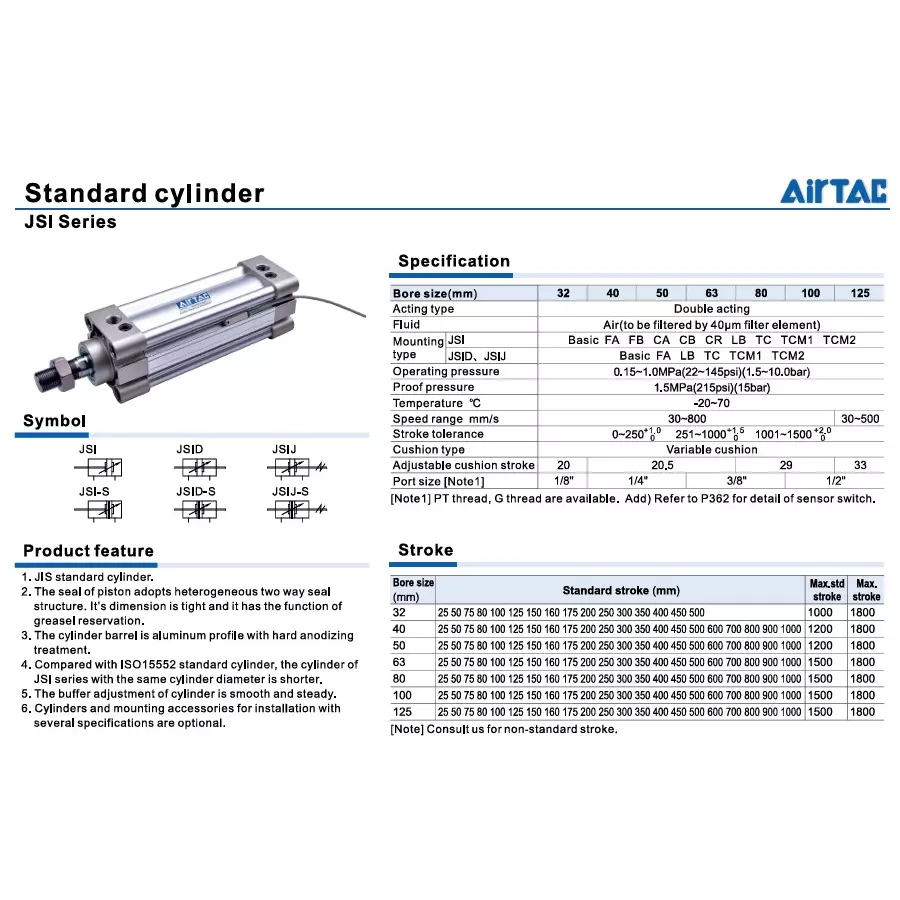

| Type of Product | Standard Cylinder |
| Temperature | -20~70°C |
| Series | JSI |
| Operating Pressure | 0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar) |
Type of Product |
Standard Cylinder |
Temperature |
-20~70°C |
Series |
JSI |
Operating Pressure |
0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar) |
Cushion Type |
Variable Cushion |
Port size |
3/8 inch (9.5 mm) |
Bore Diameter |
63 mm |
Acting Type |
Double Acting |
Country of Origin |
India |
Barrel |
Aluminium Profile with Hard Anodizing Treatment |
Proof Pressure |
1.5 MPa (215 psi) (15 bar) |
Speed Range |
30~800 mm/s |
Cushion Strokes |
Adjustable: 20.5 mm |
Mounting Type |

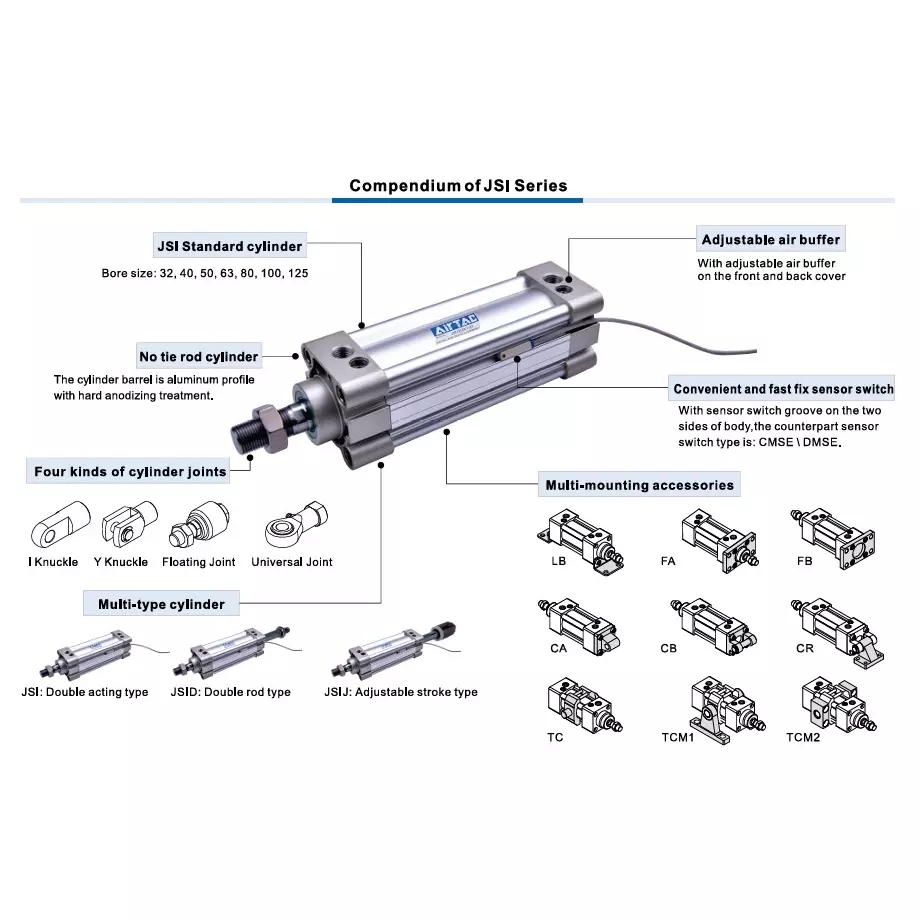

JSI = Basic, FA, FB, CA, CB, CR, LB, TC, TCM1, TCM2, JSID, JSIJ = Basic, FA, LB, TC, TCM1, TCM2 |
Stroke Size |
>250-300 mm |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Fluid |
Air (to be filtered by 40 μm filter element) |
Stroke Tolerance |
0-250 (+1.0 / 0), 251-1000 (+1.5 / 0), 1001-1500 (+2.0 / 0) |
