Chat
Ships within 10 days
Stroke Size
View
View
View
View

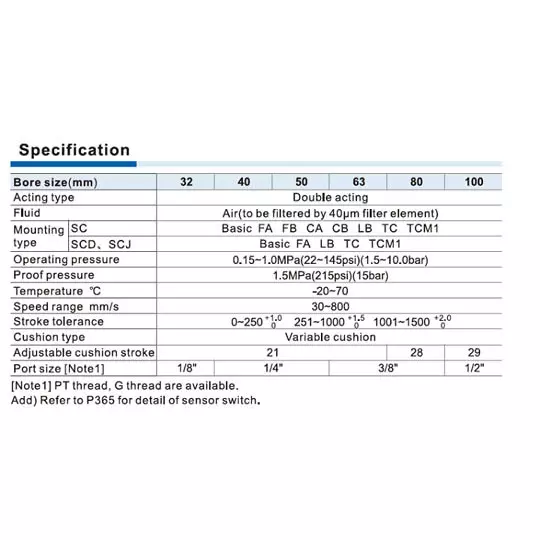

| Bore Size | Ø 63 mm |
| Type of Product | Standard Cylinder (Tie-Rod) |
| Temperature | -20-70 °C |
| Material | Aluminium Alloy |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Bore Size |
Ø 63 mm |
Type of Product |
Standard Cylinder (Tie-Rod) |
Temperature |
-20-70 °C |
Material |
Aluminium Alloy |
Series |
SC Series |
Operating Temperature Range |
0-150 °C |
Operating Pressure |
0.15-1.0 MPa(22~145 Psi)(1.5-10-0 Bar) |
Cushion Type |
Varlable Cushion |
Acting Type |
Double Acting |
Country of Origin |
India |
Proof Pressure |
1.5 MPa(215 Psi)\(15 Bar) |
Speed Range |
30-800 mm/s |
Mounting Type |
Basic FA FB CA CB LB TC TCM1 |
Stroke Size |
75 mm |
Rod Size |
20 mm |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Fluid |
Air (to be filtered by 40 µm filter element) |
