Ships within 10 days
Stroke Size
View
View
View
View
| Bore Size | Ø 16 mm |

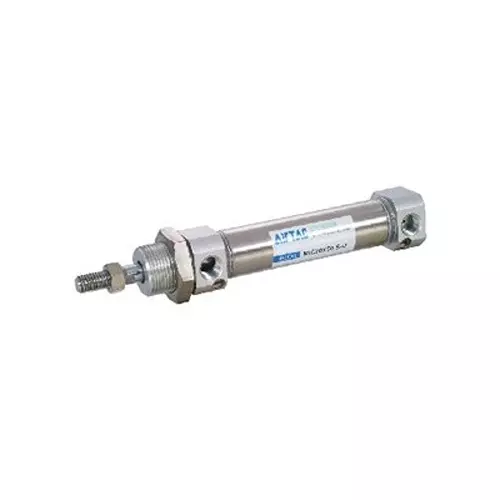

| Type of Product | Mini Cylinder |
| Temperature | -20-70 °C |
| Material | Stainless Steel |
Bore Size |
Ø 16 mm |
Type of Product |
Mini Cylinder |
Temperature |
-20-70 °C |
Material |
Stainless Steel |
Series |
Mi Series |
Operating Pressure |
0.15-1.0 Mpa (22-145 Psi) (1.5-10.0 Bar} |
Acting Type |
Double Acting |
Country of Origin |
India |
Proof Pressure |
1.5 Mpa (215 Psi) (15 Bar) |
Speed Range |
30-800 mm/s |
Standard |
ISO 6432 |
Stroke Size |
175 mm |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Fluid |
Air (to be filtered by 40 µm filter element) |
Stroke Tolerance |
0-150+1.0° >150+1.0° |
