| Action Type | Double Acting |

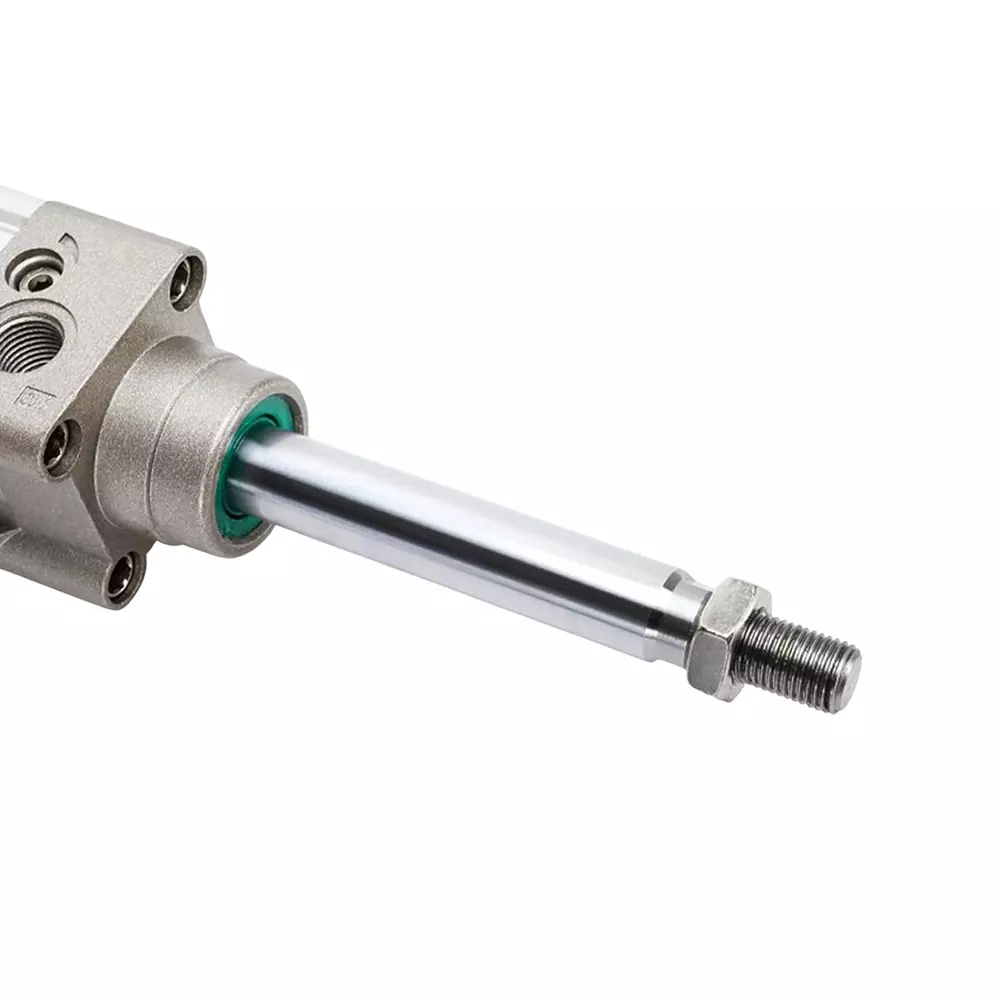

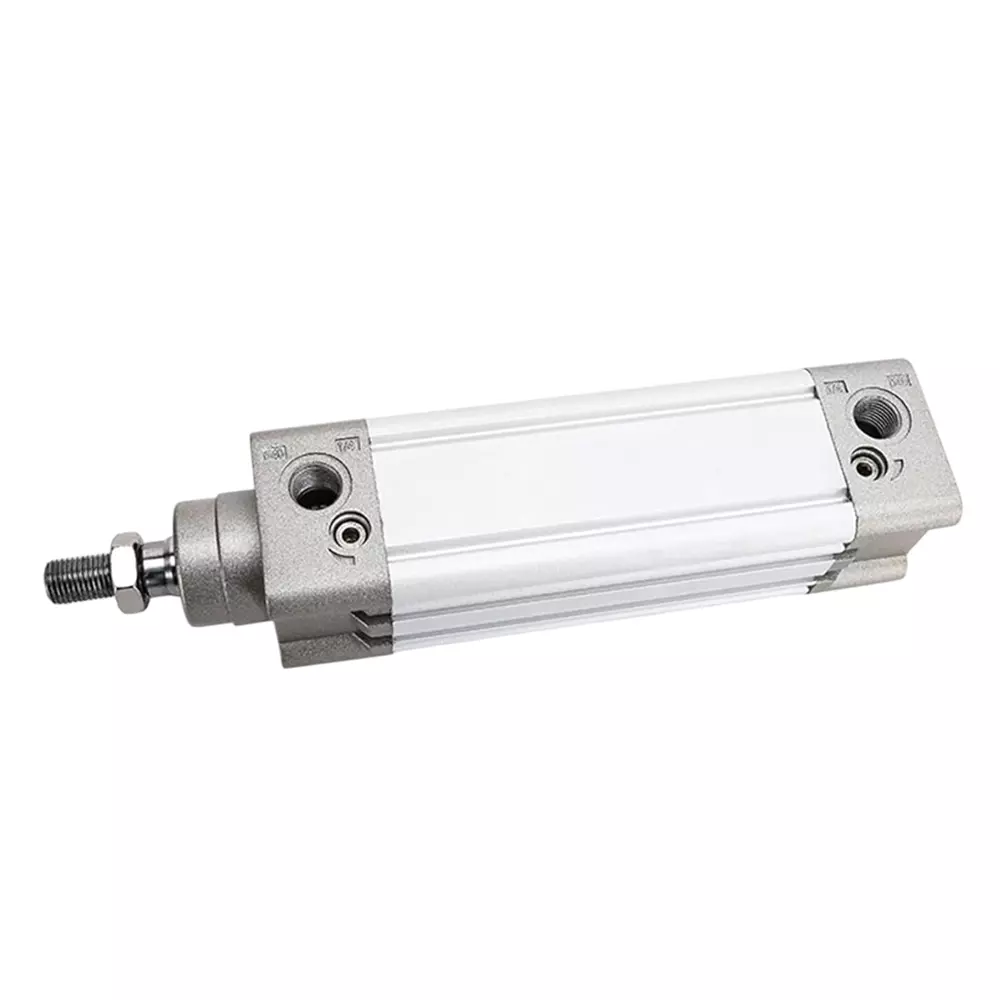

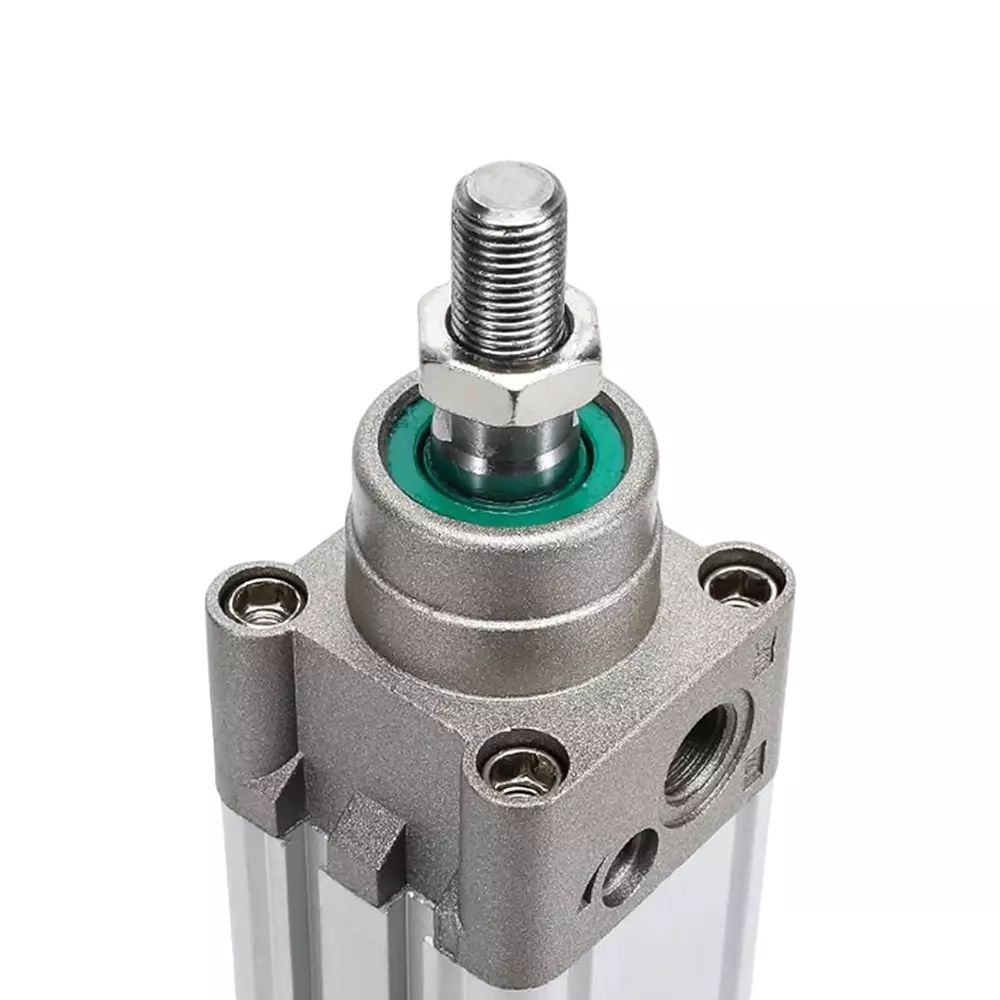

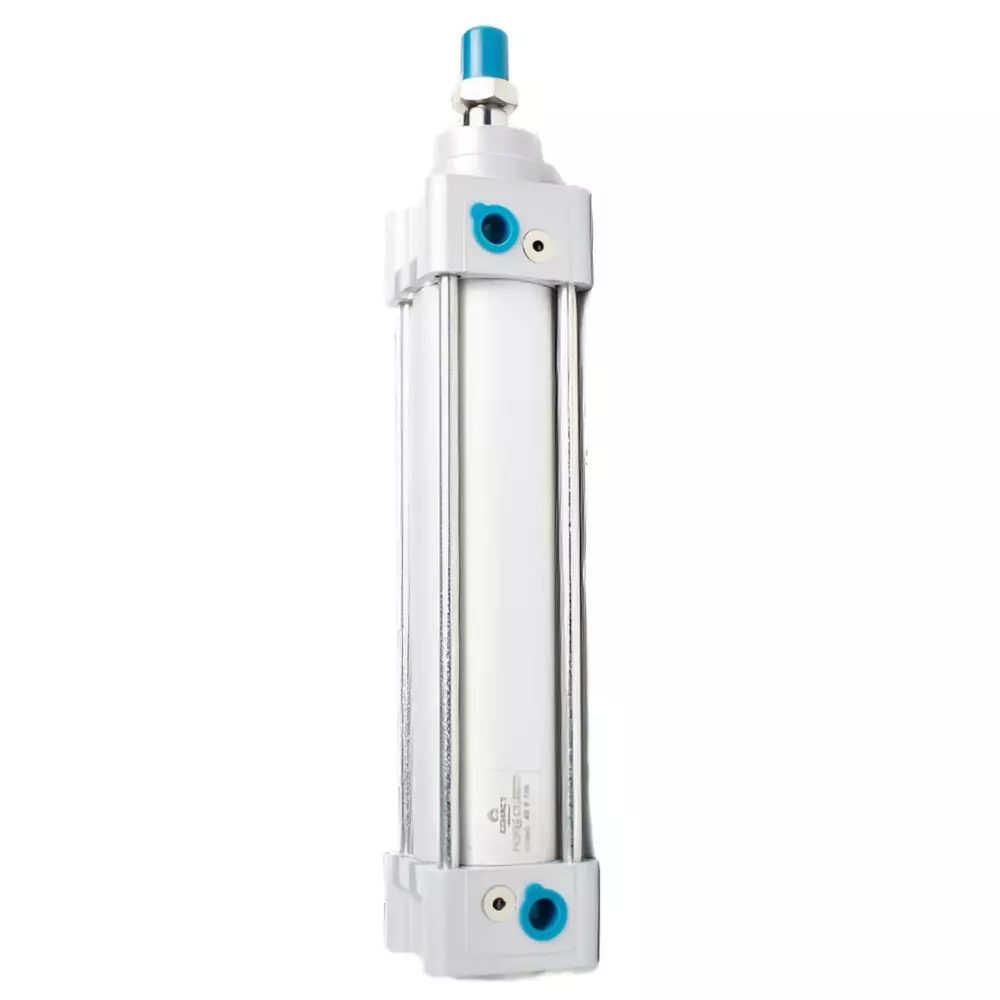

| Type of Product | Tie Rod Magnetic Cylinder |
| Stroke | 700 mm |
| Series | C14 |
Action Type |
Double Acting |
Type of Product |
Tie Rod Magnetic Cylinder |
Stroke |
700 mm |
Series |
C14 |
Operating Temperature Range |
-5 to 70°C |
Operating Pressure |
1-10 Kgf/cm² |
Cushion Type |
Adjustable At Both Ends |
Fluid Type |
Compressed Air, Lubricated & Filtered |
Port size |
G3/8 inch |
Diameter |
63 mm |
Country of Origin |
India |
Standard |
ISO 15552 |
Name of Manufacturer/Packer/Importer |
PV ENGINEERING ASSOCIATES PVT LTD |
Port Size 1 |
G 9.5 mm |
