CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 63 mm Dia

Ships within 15 days

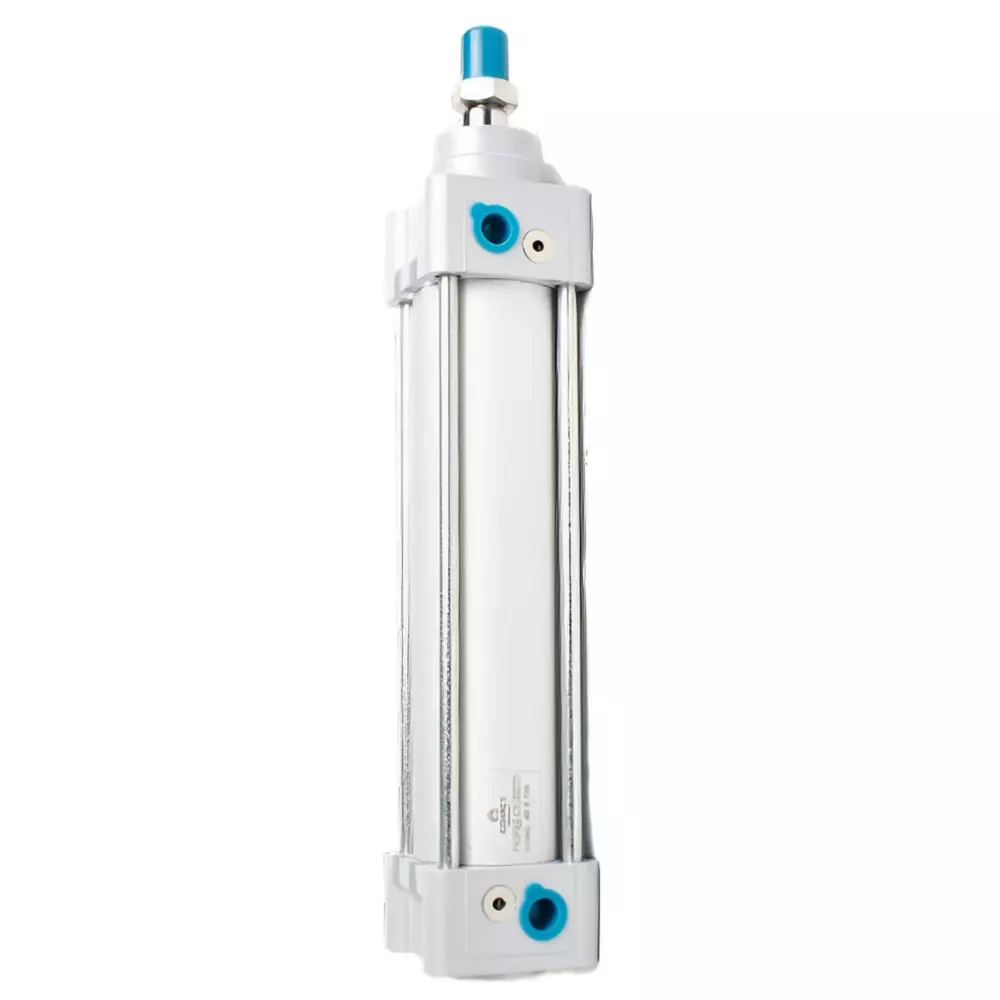

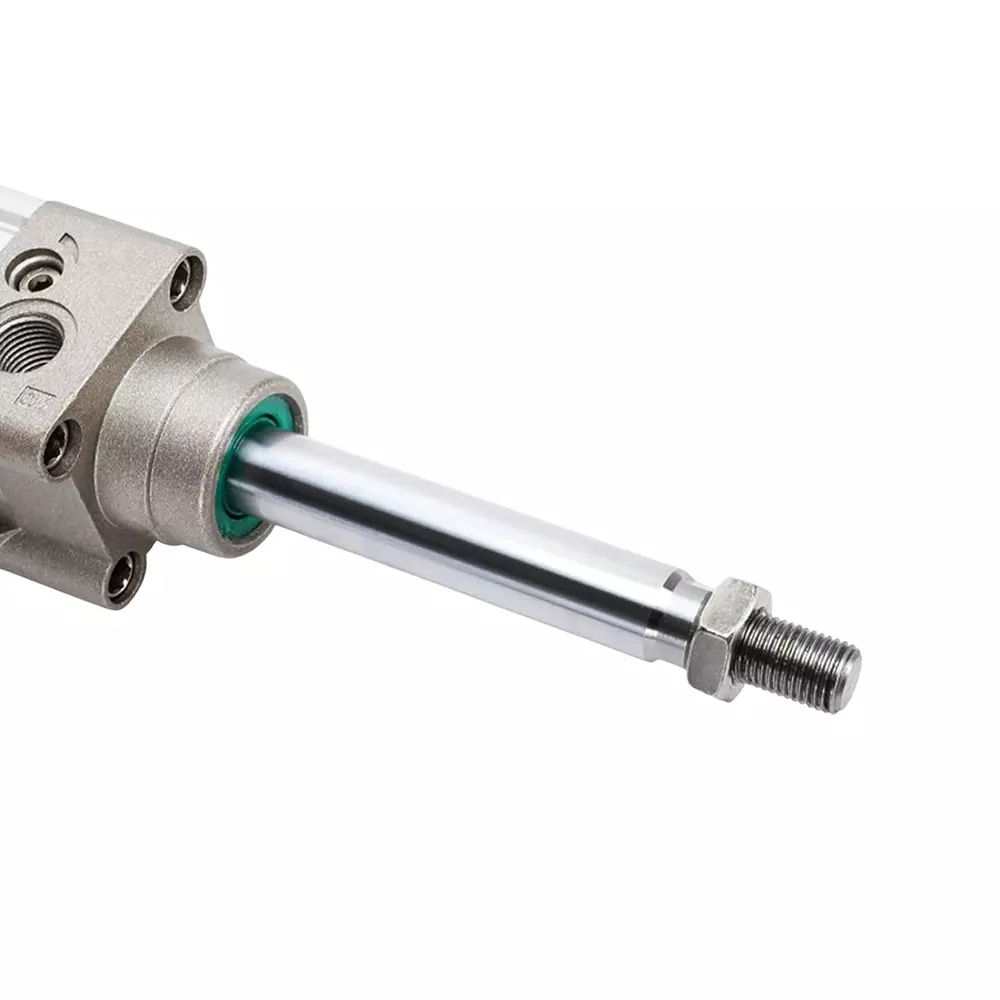

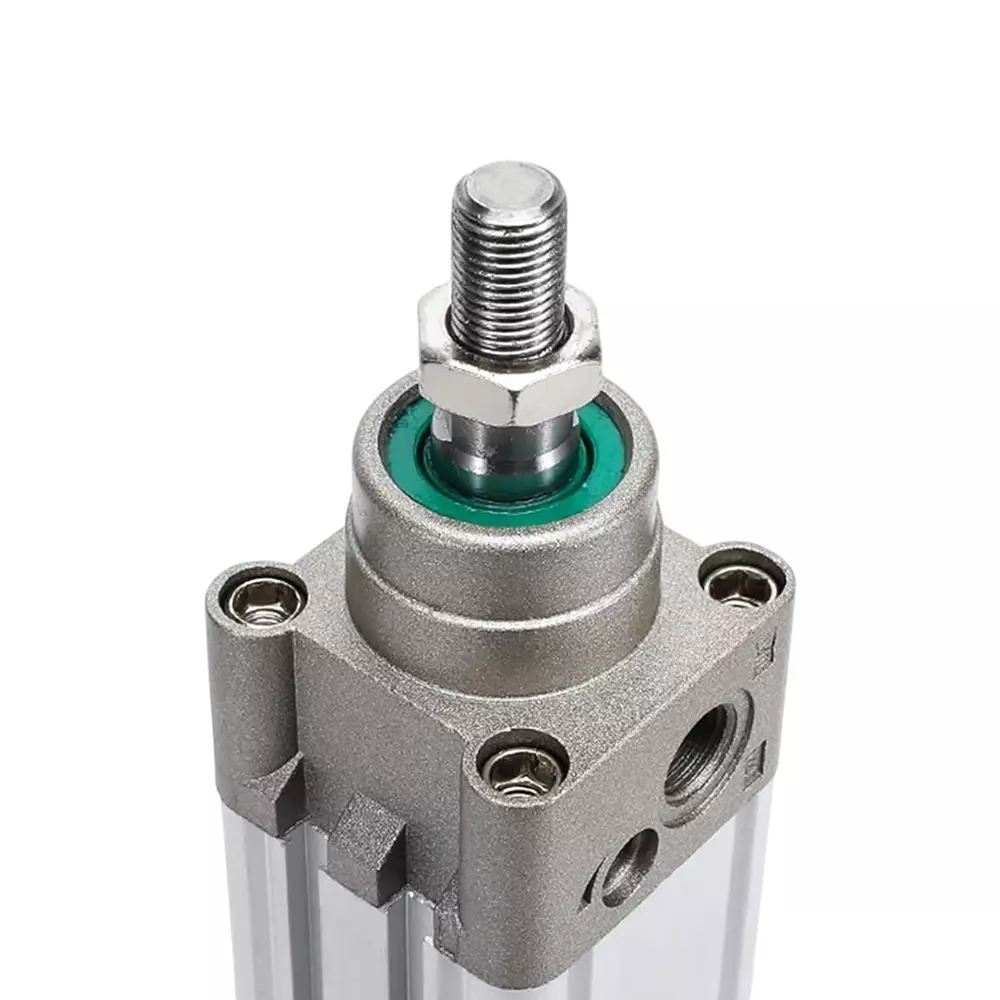

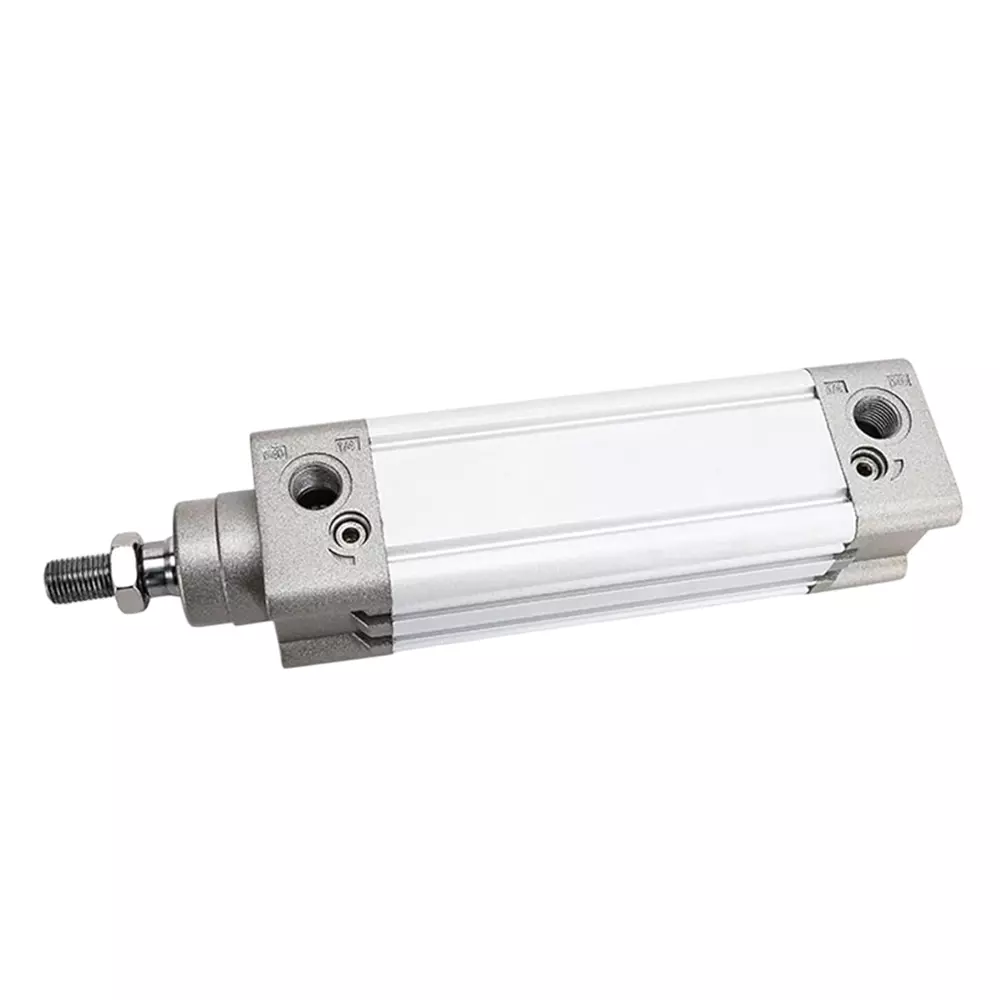

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 63 mm Dia

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 63 mm Dia

Name: CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 63 mm Dia
Brand: CONACT
SKU: HYD.PNE.529478687
Price: 5663 INR
Availability: InStock

Visit the CONACT Store

EMI starts at ₹503/month. No Cost EMI available.

Port size

Port Size 1

Diameter

Explore 6 more variants

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Action Type	Double Acting
Type of Product	Tie Rod Non Magnetic Cylinder
Stroke	850 mm
Series	C15

More CONACT Pneumatic Cylinders products More Pneumatic Cylinders products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

EXPLORE OTHER VARIANTS

Ships within 15 days

SKU ID: HYD.PNE.629478926

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 80 mm Dia

Port size

G3/8 inch

Diameter

80 mm

Port Size 1

G 9.5 mm

₹7,669 ~~₹11,499~~

You save ₹3,830!

33.31% OFF

Ships within 15 days

SKU ID: HYD.PNE.629478441

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 50 mm Dia

Port size

G1/4 inch

Diameter

50 mm

Port Size 1

G 6.35 mm

₹4,955 ~~₹7,508~~

You save ₹2,553!

34.01% OFF

Ships within 15 days

SKU ID: HYD.PNE.429479406

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 125 mm Dia

Port size

G1/2 inch

Diameter

125 mm

Port Size 1

G 12.7 mm

₹17,699 ~~₹25,941~~

You save ₹8,242!

31.77% OFF

Ships within 15 days

SKU ID: HYD.PNE.129479160

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 100 mm Dia

Port size

G1/2 inch

Diameter

100 mm

Port Size 1

G 12.7 mm

₹9,675 ~~₹14,698~~

You save ₹5,023!

34.18% OFF

Ships within 15 days

SKU ID: HYD.PNE.129478208

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 40 mm Dia

Port size

G1/4 inch

Diameter

40 mm

Port Size 1

G 6.35 mm

₹3,657 ~~₹5,455~~

You save ₹1,798!

32.96% OFF

Ships within 15 days

SKU ID: HYD.PNE.229477966

CONACT C15 Tie Rod Non Magnetic Cylinder Double Acting 850 mm Stroke 32 mm Dia

Port size

G1/8 inch

Diameter

32 mm

Port Size 1

G 3.175 mm

₹3,185 ~~₹4,761~~

You save ₹1,576!

33.11% OFF

specifications

description

Action Type	Double Acting
Type of Product	Tie Rod Non Magnetic Cylinder
Stroke	850 mm
Series	C15
Operating Temperature Range	-5 to 70°C
Operating Pressure	1-10 Kgf/cm²
Cushion Type	Adjustable At Both Ends
Fluid Type	Compressed Air, Lubricated & Filtered
Port size	G3/8 inch
Diameter	63 mm
Country of Origin	India
Standard	ISO 15552
Name of Manufacturer/Packer/Importer	PV ENGINEERING ASSOCIATES PVT LTD
Port Size 1	G 9.5 mm
