| Operating Temperature Range | 0 to 60°C (no freezing) |
| Thread Type | R |
| Country of Origin | JAPAN |
| Shape | Straight |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Operating Temperature Range |
0 to 60°C (no freezing) |
Thread Type |
R |
Country of Origin |
JAPAN |
Shape |
Straight |
Series |
E3 / E7 series |
Monotaro ID |
35315314 |
Type of Product |
Coupling Socket |
Weight |
11 g |
Thread |
1/8 |
Vacuum Pressure |
-100 kPa |
Model No |
CPSE3-01 |
Product Type |
Separate type |
Maximum Operating Pressure |
0.9 MPa |
Suitable Fluid |
Air, Water (Conditions Apply) |

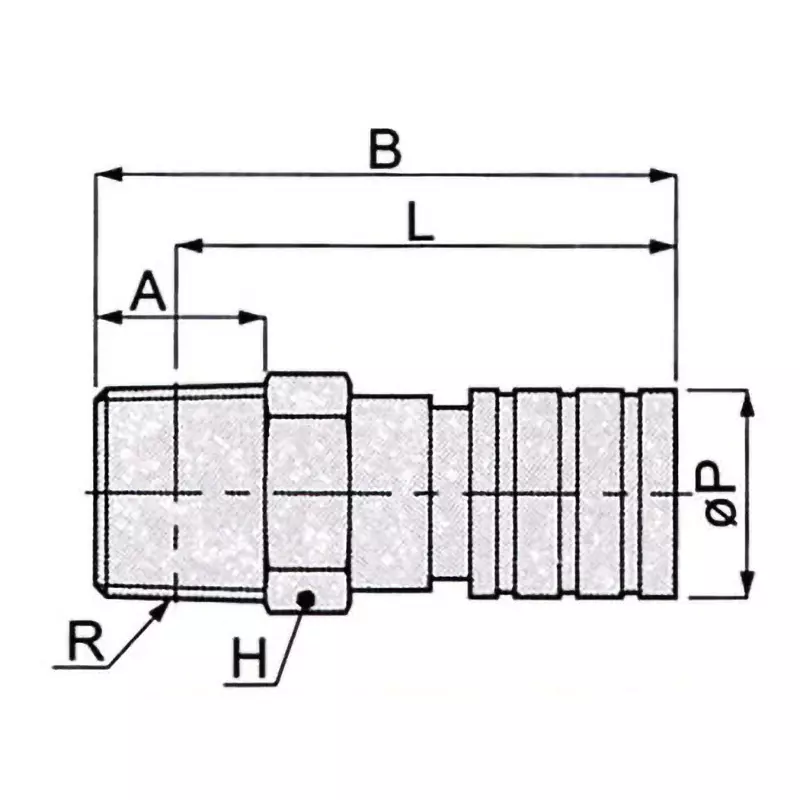

Dimensions L (mm) |
23.8 mm |
Dimensions B (mm) |
27.8 mm |
Dimensions A (mm) |
8 mm |
Section Area |
3.8 mm² |
Width Across Flats |
10 mm |
Dimension P1 (mm) |
9.5 |
Trusco Part No. |
378-0902 |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
Thread (mm) |
3.17 mm |
