| Operating Temperature Range | 0 to 60℃ |
| Country of Origin | JAPAN |
| Shape | Union straight |
| Material | Lock claw/stainless steel, Release ring/cap lever/polyacetal (POM), Tube/polyurethane or nylon, Guide ring, metal body, spool/brass (electroless nickel plating), Elastic sleeve/O ring/Nitrile rubber (NBR), Resin body/polybutylene terephthalate (PBT) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Operating Temperature Range |
0 to 60℃ |
Country of Origin |
JAPAN |
Shape |
Union straight |
Material |
Lock claw/stainless steel, Release ring/cap lever/polyacetal (POM), Tube/polyurethane or nylon, Guide ring, metal body, spool/brass (electroless nickel plating), Elastic sleeve/O ring/Nitrile rubber (NBR), Resin body/polybutylene terephthalate (PBT) |
Monotaro ID |
87959855 |
Type of Product |

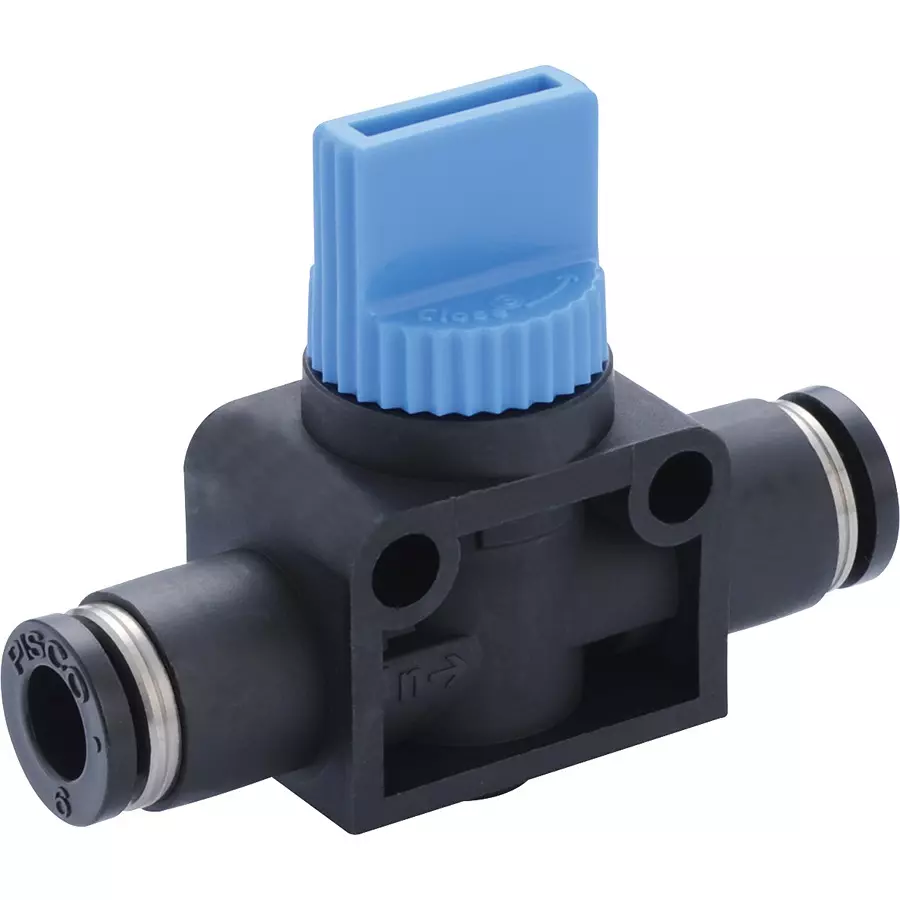

Hand Valve Union |
Weight |
45 g |
Color |
Standard Color (Resin Body & Open Ring: Black, Cap Lever: Blue) |
Model No |
HV3/8-3/8-2 |
Tube Diameter |
9.53 mm |
Suitable Fluid |
Air |
No. of Port |
2 |
Section Area |
17 mm² |
Dimension P2 (mm) |
17.5 mm |
Dimension C2 (mm) |
20.2 mm |
Dimension C1 (mm) |
20.2 mm |
Dimension P |
17.5 mm |
Dimension E1 |
21.7 mm |
Dimension E2 |
41 mm |
Operating Pressure Range (MPa) |
0 to 0.9 MPa |
Dimension F1 |
24 mm |
Dimension F2 |
11 mm |
Dimension B1 (mm) |
32.2 mm |
Dimension B2 |
32.2 mm |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
Tube Diameter (mm) |
9.53 mm |
