| Operating Temperature Range | 0 to 60°C (no freezing) |
| Country of Origin | JAPAN |
| Packaging Type | Normal packaging |
| Shape | Bulkhead Union Elbow |
Operating Temperature Range |
0 to 60°C (no freezing) |
Country of Origin |
JAPAN |
Packaging Type |
Normal packaging |
Shape |
Bulkhead Union Elbow |
Outer Diameter |
Φ12 mm |
Material |
Release ring/POM, resin body/PBT |
Monotaro ID |
10369396 |
Type of Product |
Bulkhead Union Elbow |
Weight |
59 g |
Orifice Diameter |
Φ9.5 mm |
Color |
Opening ring / resin body: Black |
Model No |
PML12 |
Product Type |
Standard type |
Maximum Operating Pressure |
1 MPa |
Suitable Fluid |
Air, Water (Conditions Apply) |

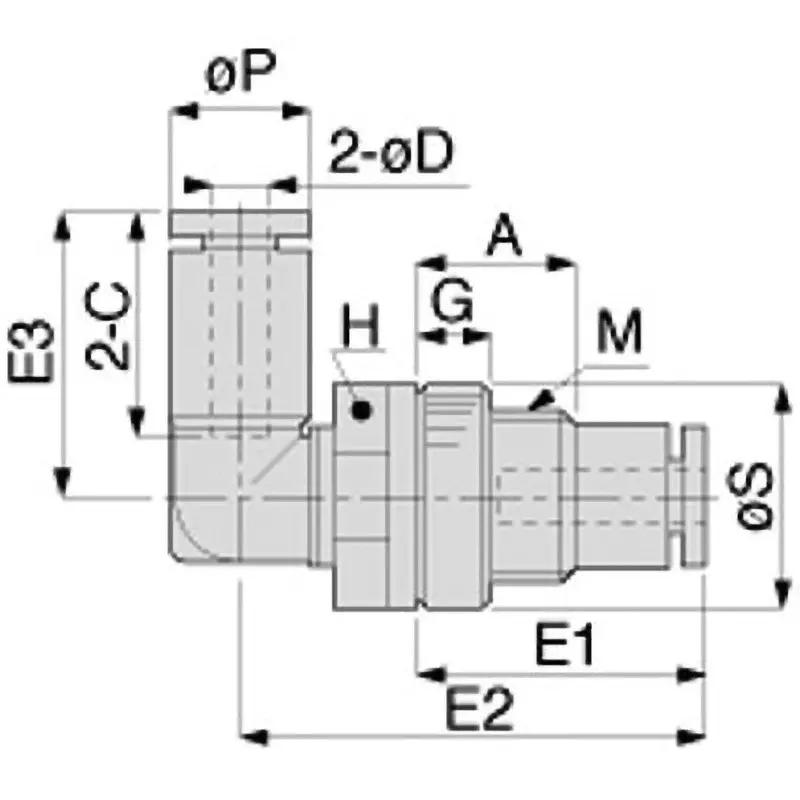

Dimensions A (mm) |
18.5 mm |
Import Country |
Direct Import from Japan |
Section Area |
37.2 mm² |
Dimensions J (mm) |
24 mm |
Dimension C2 (mm) |
23.4 mm |
Dimension C1 (mm) |
23.4 mm |
Dimension E |
32.6 mm |
Dimension E1 |
33.2 mm |
Dimension E2 |
54.7 mm |
Dimensions M (mm) |
M24×2 mm |
Dimension (S) |
Φ31 mm |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
