| Country of Origin | JAPAN |
| Shape | Union Tee |
| Outer Diameter | Φ16 mm |
| Material | Metal body: brass + nickel plating Resin body: Polybutylene terephthalate (PBT) Release ring: Polyacetal (POM) Metal Hood: Brass (electroless nickel plating) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
JAPAN |
Shape |
Union Tee |
Outer Diameter |
Φ16 mm |
Material |
Metal body: brass + nickel plating Resin body: Polybutylene terephthalate (PBT) Release ring: Polyacetal (POM) Metal Hood: Brass (electroless nickel plating) |
Monotaro ID |
9147406 |
Type of Product |
Union Tee |
Weight |
44 g |
Orifice Diameter |
Φ13 mm |
Color |
Opening ring / resin body: Black |
Vacuum Pressure |
-100 kPa |
Model No |
PE16 |
Product Type |
Standard type |
Maximum Operating Pressure |
1 MPa |
Suitable Fluid |
Air, Water (Conditions Apply) |

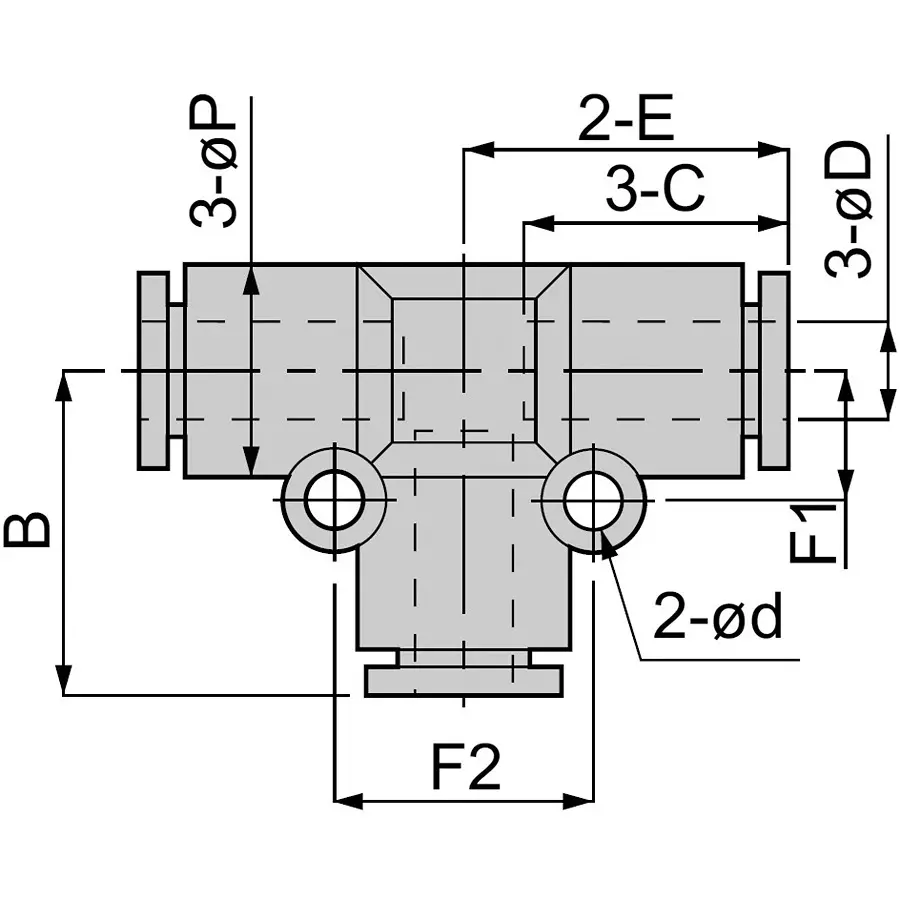

Dimensions C (mm) |
24.1 mm |
Dimensions E (mm) |
33.1 mm |
Dimensions B (mm) |
33.1 mm |
Section Area |
89.8 mm² |
Dimension P1 (mm) |
25 |
Trusco Part No. |
290-9421 |
Dimension F1 |
12 mm |
Dimension F2 |
24 mm |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
