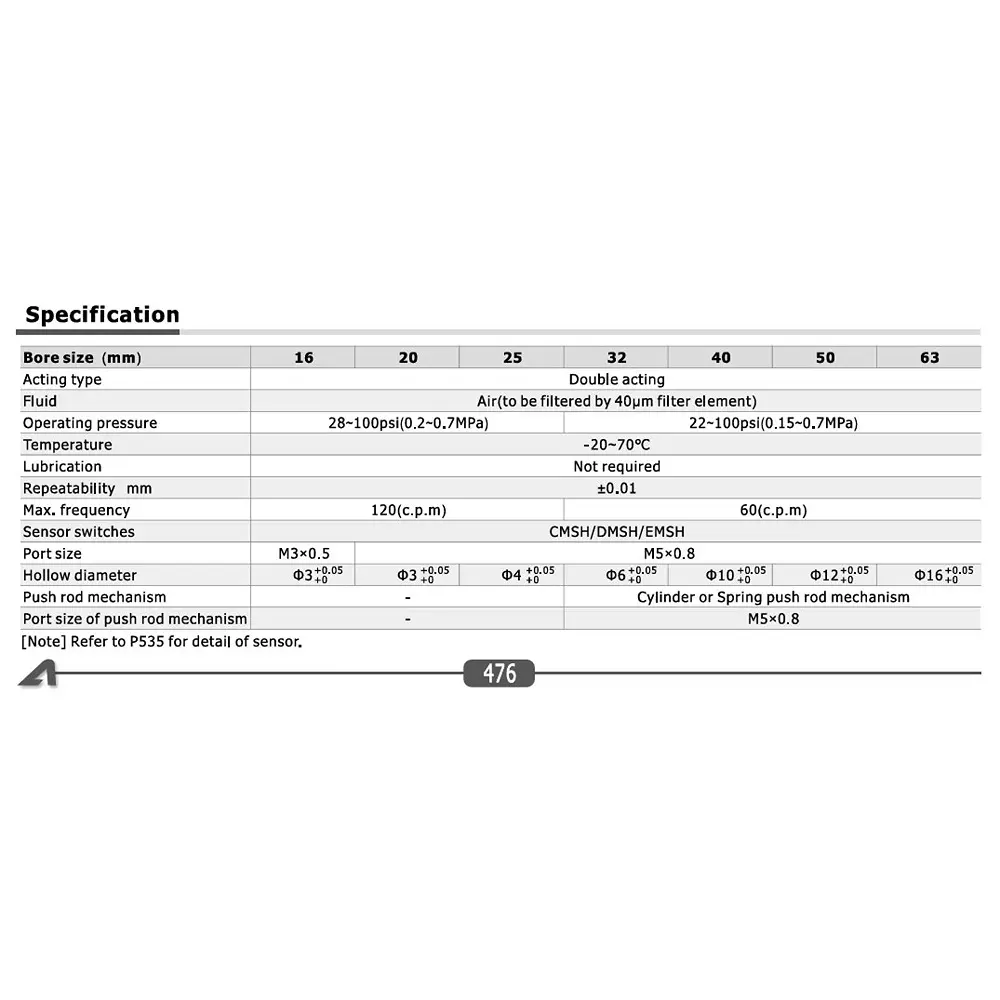

| Type of Product | Air Gripper |
| Model No | HFCQ 63 |
| Operating Pressure | 22-100 psi (0.15-0.7 MPa) |
| Port size | M5x0.8 mm |
Type of Product |
Air Gripper |
Model No |
HFCQ 63 |
Operating Pressure |
22-100 psi (0.15-0.7 MPa) |
Port size |
M5x0.8 mm |
Diameter |
Hollow: 16 mm (+0.05 to +0) |
Type |
Parallel Hollow |
Lubrication |
Not Required |
Acting Type |
Double Acting |
Series |
HFCQ |
Bore Size |
63 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Temperature |
-20 to 70°C |
Sensor Switches |
CMSH/DMSH/EMSH |
Maximum Frequency |
60 (cpm) |
Fluid |
Air (to be filtered by 40 μm filter element) |
Model Type |
Air Finger |
Repeatability |
±0.01 mm |
Finger Type |
Three Grippers |
Mechanism |
Without Push Rod Mechanism |
