| Type | Poppet Type |
| Model No | SV10-21 |
| Ambient Temperature | -40 to 70 °C (-40 to 160 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 160 °F) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Poppet Type |
Model No |
SV10-21 |
Ambient Temperature |
-40 to 70 °C (-40 to 160 °F) |
Storage Temperature |
-40 to 70 °C (-40 to 160 °F) |
Type of Product |

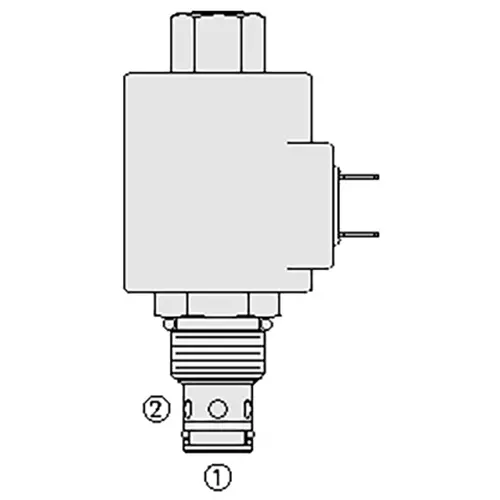

Solenoid Directional Cartridge |
Features |
Continuous-Duty Rated Coil, Hardened Seat For Long Life And Low Leakage, Optional Coil Voltages And Terminations, Unitized, Molded Coil Design, Optional Waterproof E-Coils Rated Up To Ip69K, Industry Common Cavity |
Country of Origin |
India |
Size |
350 Bar |
No. of Way |
2 Way |
Name of Manufacturer/Packer/Importer |
Pravahi Hydraulics |
Burst Pressure |
779 Bar (11300 Psi) |
Pressure Rating |
207 Bar (3000 Psi) |
Proof Pressure |
344 Bar (5000 Psi) |
Design |
Normally Open |
Fluid |
Mineral Based Or Synthetic Hydraulic Fluid With Lubricating Properties |
