| Type | Poppet Type |
| Model No | SV08-20 |
| Ambient Temperature | -40 to 70 °C (-40 to 160 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 160 °F) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Poppet Type |
Model No |
SV08-20 |
Ambient Temperature |
-40 to 70 °C (-40 to 160 °F) |
Storage Temperature |
-40 to 70 °C (-40 to 160 °F) |

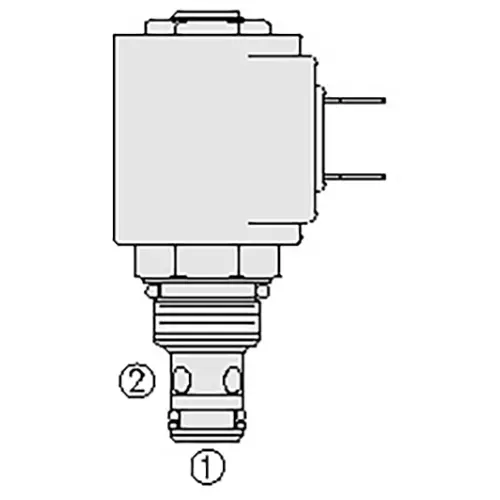

Type of Product |
Solenoid Directional Cartridge |
Features |
Continuous-Duty Rated Coil, Hardened Seat For Long Life And Low Leakage, Optional Coil Voltages And Terminations, Manual Override Option, Industry Common Cavity, Compact Size |
Country of Origin |
India |
Size |
15 Bar |
No. of Way |
2 Way |
Name of Manufacturer/Packer/Importer |
Pravahi Hydraulics |
Burst Pressure |
620 Bar (9000 Psi) |
Pressure Rating |
207 Bar (3000 Psi) |
Proof Pressure |
241 Bar (3500 Psi) |
Design |
Normally Close |
Fluid |
Mineral Based Or Synthetic Hydraulic Fluid With Lubricating Properties |
Maximum Torque |
54 N-m (40 ft-lb) |
