| Type | Spool Type |
| Model No | SV10-40 |
| Ambient Temperature | -40 to 70 °C (-40 to 160 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 160 °F) |
Type |
Spool Type |
Model No |
SV10-40 |
Ambient Temperature |
-40 to 70 °C (-40 to 160 °F) |
Storage Temperature |
-40 to 70 °C (-40 to 160 °F) |
Type of Product |

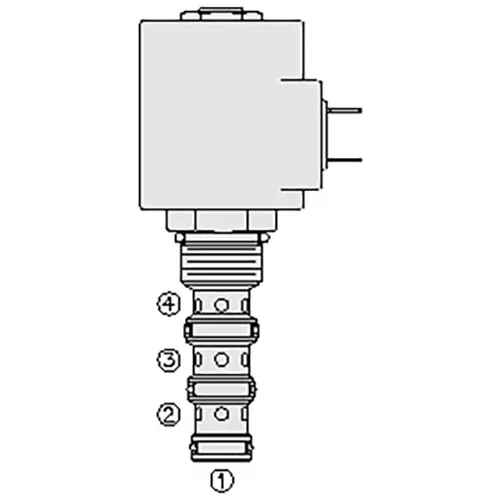

Solenoid Directional Cartridge |
Features |
Continuous-Duty Rated Coil, Hardened Precision Spool And Cage For Long Life, Optional Coil Voltages And Terminations, Efficient Wet-Armature Construction, All Ports May Be Fully Pressurized, Optional Waterproof E‑Coils Rated Up To Ip69K |
Country of Origin |
India |
Size |
250 Bar |
Name of Manufacturer/Packer/Importer |
Pravahi Hydraulics |
No. of Port |
4 Port |
Burst Pressure |
621 Bar (9000 Psi) |
Pressure Rating |
207 Bar (3000 Psi) |
Proof Pressure |
276 Bar (4000 Psi) |
Fluid |
Mineral Based Or Synthetic Hydraulic Fluid With Lubricating Properties |
Maximum Torque |
54 N-m (40 ft-lb) |
Flow Rating |
23 Lpm (6 Gpm) |
