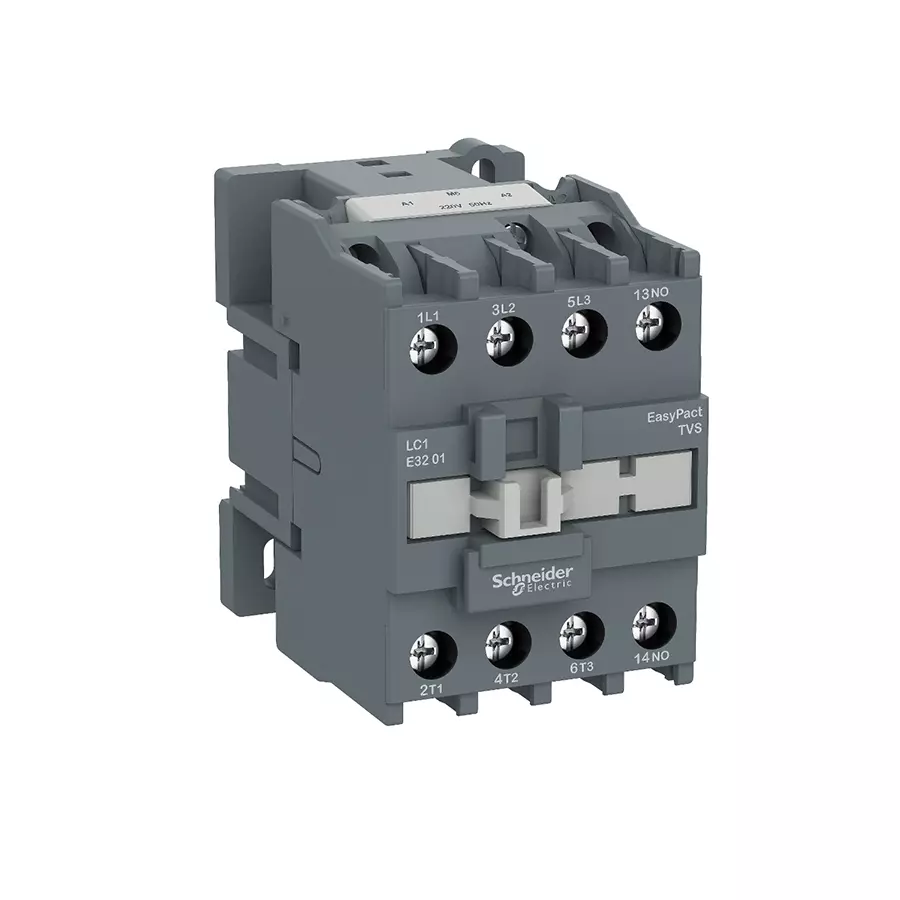

| Type of Product | TVS Contactor |
| Model No | LC1E3810N5WB |
| Country of Origin | India |
| Application | Resistive load, Motor control |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
TVS Contactor |
Model No |
LC1E3810N5WB |
Country of Origin |
India |
Application |
Resistive load, Motor control |
Series |
EasyPact |
Pole |
3 |
Standard |
IEC 60947-4-1, IEC 60947-5-1 |
Average Impedance |
2.5 mOhm - Ith 50 A 50 Hz for power circuit |
Mechanical Durability |
8 Mcycles |
Device Short Name |
LC1E |
Mounting Support |
DIN rail, Plate |
Protection |
IP20 conforming to IEC 60529 |
Heat Dissipation |
2…3 W for control circuit |
Tightening Torque |
Control circuit: 1.2 N.m, Power circuit: 2.1 N.m |
Height |
84 mm |
Width |
56 mm |
Control Circuit |
AC at 50 Hz wide range |
Fire Resistance |
850 °C conforming to IEC 60695-2-1 |
Rated Breaking Capacity |
304 A at 440 V |
Certification |
EAC |
Power Dissipation Per Pole |
2.9 W AC-3, 5 W AC-1 |
Operating Time |
12...22 ms on closing, 4...19 ms on opening |
Protective Treatment |
TH conforming to IEC 60068 |
Over Voltage Category |
III |
Product or component Type |
Contactor |
Fuse Rating |
63 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V for signalling circuit |
Rated Operational Voltage (Ue) |
Power circuit: <= 690 V AC 50/60 Hz |
Control Circuit Voltage Limits |
415 V AC 50 Hz |
Pole Contact Composition |
3 NO |
Utilisation Category |
AC-1, AC-3 |
Maximum Operating Rate |
1800 cyc/h 60 °C |
Depth |
86 mm |
Net Weight |
450 g |
Motor Power (KW) |
18.5 kW at 500 V, 18.5 kW at 660...690 V, 9 kW at 220...230 V AC 50/60 Hz, 18.5 kW at 380...400 V, 18.5 kW at 415 V, 18.5 kW at 440 V |
Pollution degree |
3 |
Electrical Durability |
0.35 Mcycles AC-1, 0.9 Mcycles AC-3 |
Minimum Switching Current |
5 mA for signalling circuit |
Minimum Switching Voltage |
17 V for signalling circuit |
Operating Altitude |
3000 m without derating |
Connection Terminal |
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid, Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid, Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid |
Rated making capacity |
380 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
Rated Insulation Voltage |
690 V conforming to IEC 60947-4-1 |
Name of Manufacturer/Packer/Importer |
Schneider Electric |
