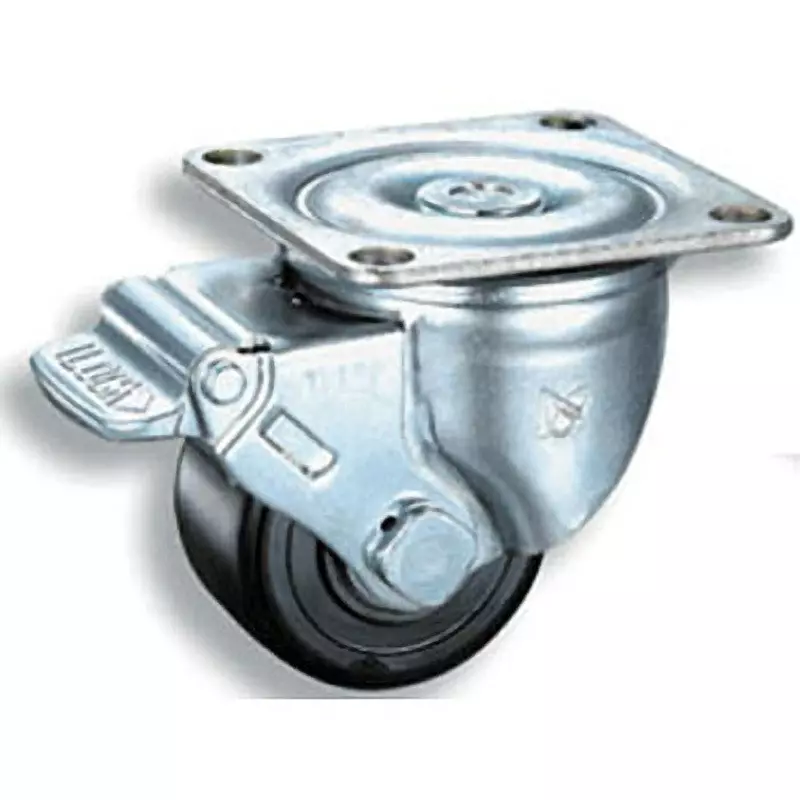

| Type of Product | Swivel Caster |
| Wheel Material | Phenol (PH) |
| Model No | K-611JS-75-PH |
| Weight | 1.205 Kg |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Swivel Caster |
Wheel Material |
Phenol (PH) |
Model No |
K-611JS-75-PH |
Weight |
1.205 Kg |
Country of Origin |
Japan |
Monotaro ID |
61129242 |
Shape |
With Free Wheel Stopper |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Zinc Plating Chromate Treatment (MFZn-C) |
Main Unit Material |
Hot Rolled Steel Plate (SPHC) |

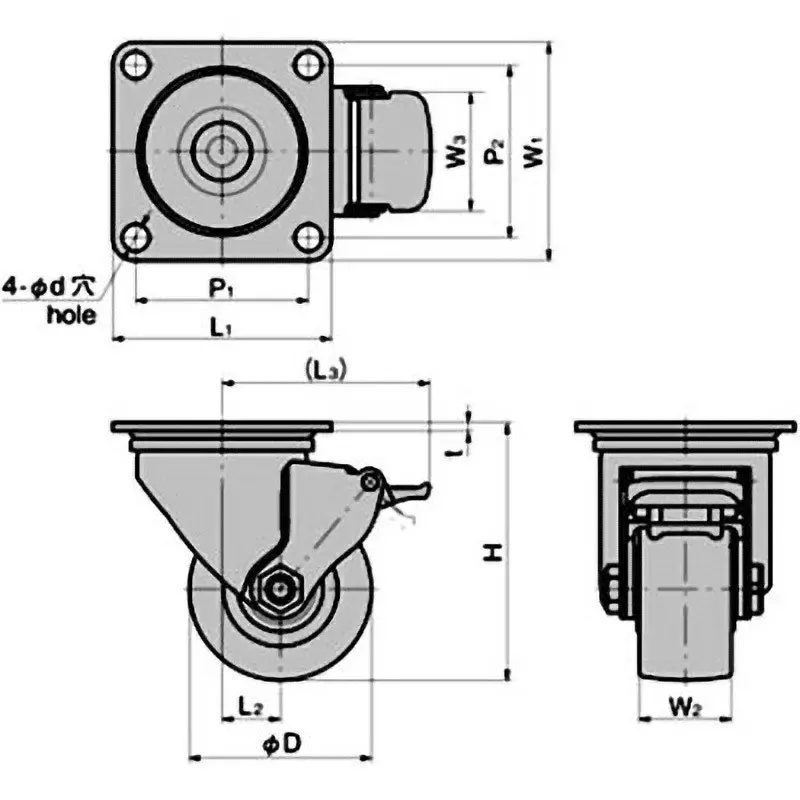

Dimension D (Φmm) |
75 |
TAKIGEN Code |
31857 |
Turning Radius |
88 mm |
Allowable Loads |
2.2N |
Dimensions W2 (mm) |
38 |
Dimensions l2 (mm) |
25 |
Dimensions P1 x P2 (mm) |
71x71 |
Dimensions (L1 x W1) (mm) |
90x90 |
Dimensions H (mm) |
106 |
Dimensions T (mm) |
3.5 |
Dimension L3 (mm) |
85 |
Dimension W3 (mm) |
49 |
