Ships within 90 days
View
View
View
View

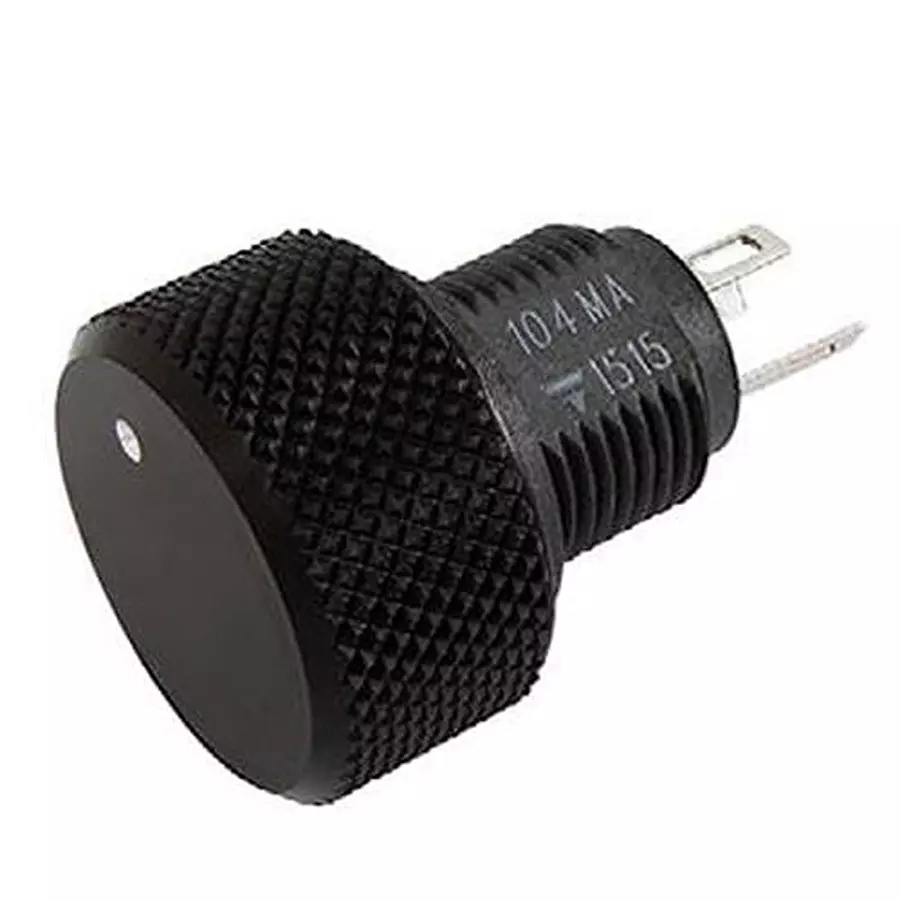

| Type of Product | Potentiometer |
| Resistance | 10 kOhms |
| Tolerance | 0.2 |
| Type | Knob Potentiometer |
Type of Product |
Potentiometer |
Resistance |
10 kOhms |
Tolerance |
0.2 |
Type |
Knob Potentiometer |
Series |
P16 |
Termination Style |
Solder Lug Termination |
Power Rating |
1 W |
Mounting Type |
Panel Mount |
Number of Turns |
1 Turn |
No. of Gangs |
1 Gang |
Taper |
Linear |
IP Rating |
IP67 |
Voltage Rating |
100 V |
Name of Manufacturer/Packer/Importer |
Vishay |
Orientation |
Vertical |
Maximum Operating Temperature |
+ 85 C |
Minimum Operating Temperature |
- 40 C |
Ordering ID |
72-P16NP103MAB15CV1F |
Manufacturer Part Number |
P16NP103MAB15CV1F |
RoHS Compliant |
RoHS Compliant By Exemption |
Packaging Type |
Bulk |
Element Type |
Cermet |
No. of Detents |
1 Detent |
Product |
Potentiometers |
Life Cycle |
50000 Cycle |
