| Model No | 157B103MX9001 |
| Type of Product | Rotary Potentiometer |
| Tolerance | ±20% |
| Type | Rotary |
Model No |
157B103MX9001 |
Type of Product |
Rotary Potentiometer |
Tolerance |
±20% |
Type |
Rotary |
Series |
157 |
Country of Origin |
Japan |
Maximum Resistance |
10 |
Termination Style |
Turret |
Name of Manufacturer/Packer/Importer |
Vishay |
Electrical Taper |
linear |
Pack of |
10 Pcs |
Height (mm) |
34.159999999999997 |
Import Country |
Direct Import from Japan |
Monotaro ID |
48846876 |
RoHS Directive |
Correspondence |
Specifications |

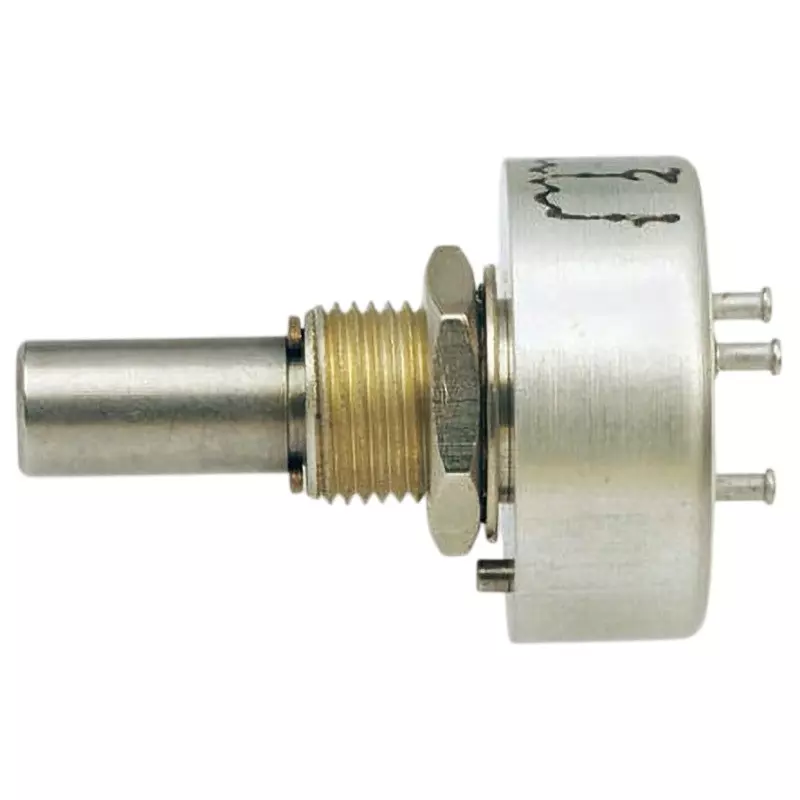

metal lockwasher and nut. 22 mmBush Mount 157 Series. Vishay offers a high quality Model 157, 7/8 inch (22.2 mm) precision industrial potentiometer housed in a rugged, one-piece metal housing. This potentiometer is available as a servo/bush mounting type and optionally has a sealed structure (bush mounting only). The Model 157 potentiometer offers long rotational life and a wide operating temperature range. Features. Long life: 10 million cycles (servo), 5 million cycles (bush) Optional special electrical angle Cost-effective component solution Temperature range: -55 → +125°C 22.2 mmlead (Pb) free Linearity: Min. ±0.25% (special). Applications. Servo control of industrial valves Various functions for forklift trucks/tractors, joysticks, wheel balancing equipment for automobiles. |
Rotational Speed |
1 |
Rated power (W) |
1 |
Shank Diameter (Φmm) |
6.35 |
Number of Bands |
1 |
Shaft Length (mm) |
22.2 |
Material (cushion) |
Conductive plastic |
Type of Sign |
Panel mount |
