| Model No | M43P501KB40 |
| Type of Product | Trimmer Resistor |
| Length | 20.57 mm |
| Height | 6.35 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
M43P501KB40 |
Type of Product |
Trimmer Resistor |
Length |
20.57 mm |
Height |
6.35 mm |

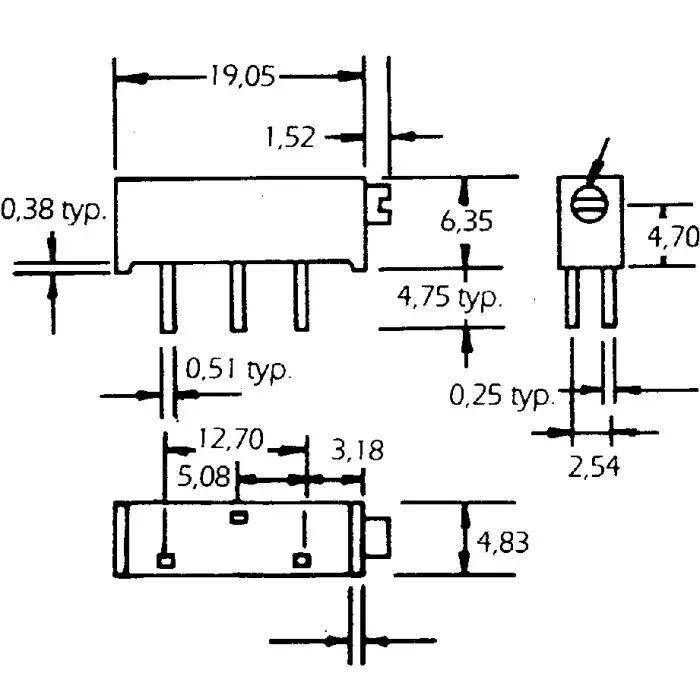

Dimension |
20.57x4.83x6.35 mm |
Tolerance |
±10% |
Series |
43P |
Country of Origin |
Mexico |
Maximum Resistance |
500 Ω |
Termination Style |
Pin |
Shaft Diameter |
2.5 mm |
Power Rating |
1/2 W |
Mounting Type |
Through Hole |
Number of Turns |
20 |
Depth |
4.83 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Pack of |
1 Pc |
Orientation |
Side Adjust |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-55°C |
Temperature coefficient |
±100 ppm/°C |
