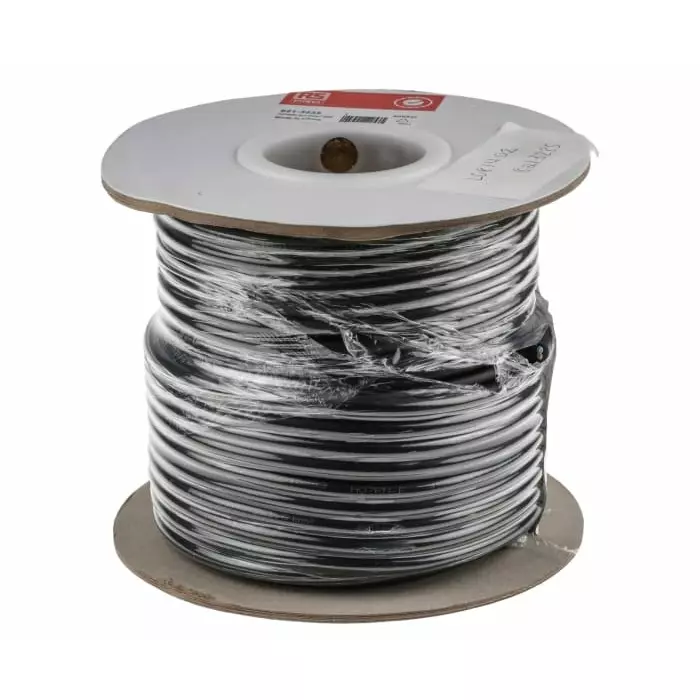

| Type of Product | Power Cable |
| Model No | 8213235 |
| Conductor Material | Copper Conductor |
| No of Core | 2 Core |
Type of Product |
Power Cable |
Model No |
8213235 |
Conductor Material |
Copper Conductor |
No of Core |
2 Core |
Voltage Rating |
450-750 V |
Nominal Area |
1 Sqmm |
Insulation Material |
EPR Insulated |
Sheath Material |
CPE |
Color |
Black |
Length |
50 m |
Country of Origin |
China |
Stranded Size |
0.25 mm |
Standard Met |
VDE 0282 |
Conductor Resistance |
19.5 Ω/km |
Wire Gauge |
17 AWG |
Outer Diameter |
8.3 mm |
Maximum Operating Temperature |
+60°C |
Conductor Type |
Stranded |
Harmonization Code |
H07RN-F |
Wire Shape |
Multicore |
Armoured / Unarmoured |
- |
Name of Manufacturer/Packer/Importer |
RS Component |
