| Cable Type | TRS |

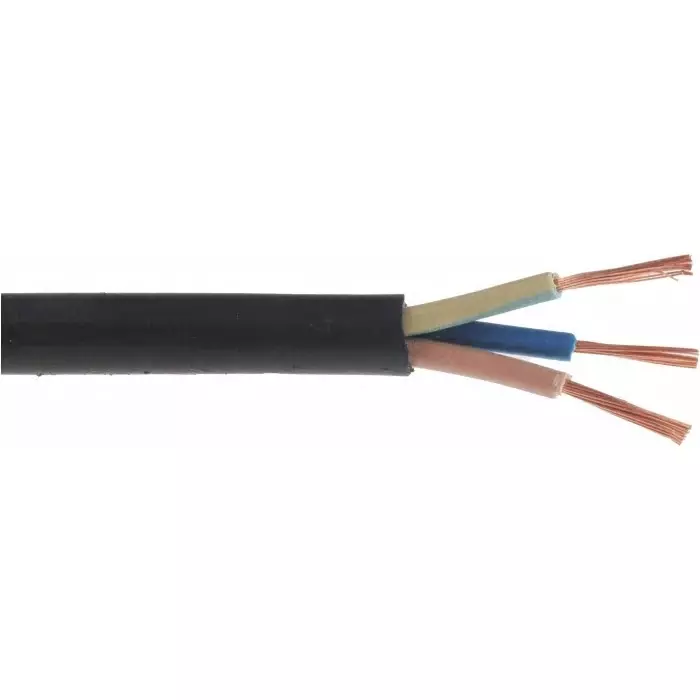

| Type of Product | Power Cable |
| Model No | 8634002 |
| Conductor Material | Copper Conductor |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Cable Type |
TRS |
Type of Product |
Power Cable |
Model No |
8634002 |
Conductor Material |
Copper Conductor |
No of Core |
3 Core |
Voltage Rating |
300-500 V |
Nominal Area |
0.75 Sqmm |
Insulation Material |
EPDM Insulated |
Sheath Material |
CPE |
Current Rating |
6 A |
Color |
Black |
Length |
100 m |
No. of Strands |
24 |
Country of Origin |
China |
Stranded Size |
0.19 mm |
Standard Met |
Euroclass Eca |
Conductor Resistance |
26 Ω/km |
Wire Gauge |
18 AWG |
Outer Diameter |
6.4-6.8 mm |
Maximum Operating Temperature |
+60°C |
Conductor Type |
Stranded |
Minimum Operating Temperature |
-25°C |
Strands |
24/0.19 mm |
Harmonization Code |
H05RR-F |
Armoured / Unarmoured |
- |
Name of Manufacturer/Packer/Importer |
RS Component |
