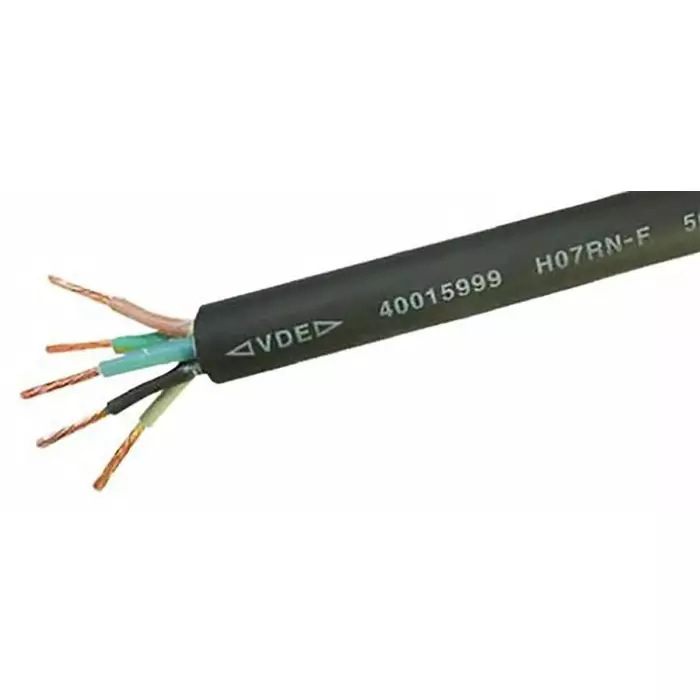

| Type of Product | Power Cable |
| Model No | 7739092 |
| Conductor Material | Copper Conductor |
| No of Core | 5 Core |
Type of Product |
Power Cable |
Model No |
7739092 |
Conductor Material |
Copper Conductor |
No of Core |
5 Core |
Voltage Rating |
450-750 V |
Nominal Area |
6 Sqmm |
Insulation Material |
EPR Insulated |
Sheath Material |
CPE |
Current Rating |
45 A |
Color |
Black |
Length |
100 m |
No. of Strands |
84 |
Country of Origin |
China |
Stranded Size |
0.286 mm |
Standard Met |
VDE 0285-525-2-21 |
Conductor Resistance |
3.3 Ω/km |
Wire Gauge |
9 AWG |
Outer Diameter |
19.1 mm |
Maximum Operating Temperature |
+60°C |
Conductor Type |
Stranded |
Minimum Operating Temperature |
-25°C |
Strands |
84/0.286 mm |
Harmonization Code |
H07RN-F |
Fire Extinguisher Type |
Flame Retardant |
Armoured / Unarmoured |
- |
Name of Manufacturer/Packer/Importer |
RS Component |
