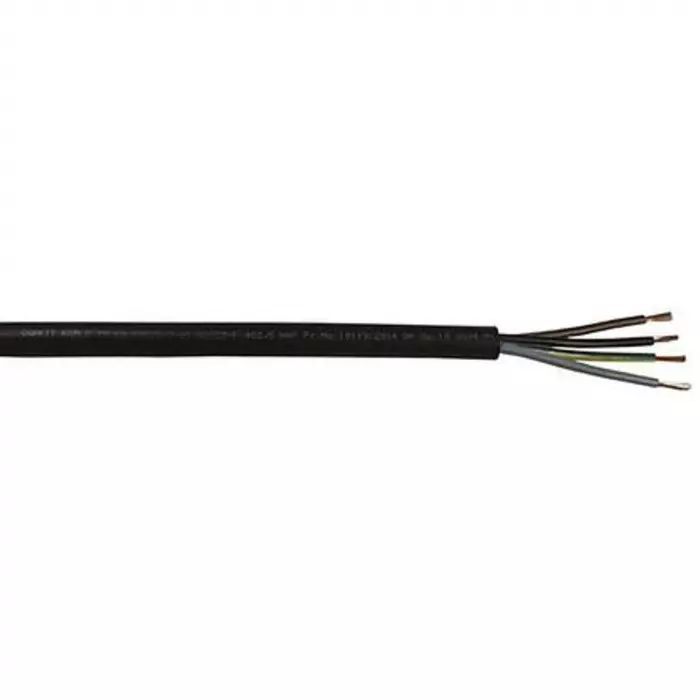

| Type of Product | Power Cable |
| Model No | 8360707 |
| Conductor Material | Copper Conductor |
| No of Core | 4 Core |
Type of Product |
Power Cable |
Model No |
8360707 |
Conductor Material |
Copper Conductor |
No of Core |
4 Core |
Voltage Rating |
750 V |
Nominal Area |
1.5 Sqmm |
Insulation Material |
Cross-linked Elastomeric Compound EI7 |
Sheath Material |
Cross-Linked Compound, Type EM 8 to EN 50363-6 |
Length |
100 m |
No. of Strands |
27 |
Country of Origin |
Turkey |
Stranded Size |
0.25 mm |
Standard Met |
Euroclass Eca |
Conductor Resistance |
13.3 Ω/km |
Wire Gauge |
15 AWG |
Outer Diameter |
10.2-13.1 mm |
Maximum Operating Temperature |
+90°C |
Conductor Type |
Stranded |
Minimum Operating Temperature |
-5°C |
Strands |
27/0.25 mm |
Harmonization Code |
H07ZZ-F |
Wire Shape |
Round |
Armoured / Unarmoured |
- |
Name of Manufacturer/Packer/Importer |
RS Component |
