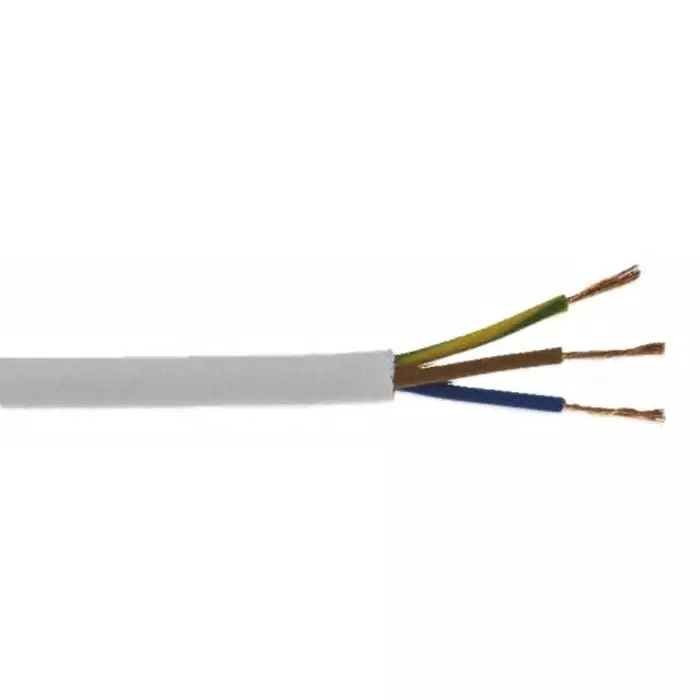

| Cable Type | 2183Y |
| Type of Product | Power Cable |
| Model No | 8412256 |
| Conductor Material | Copper Conductor |
Cable Type |
2183Y |
Type of Product |
Power Cable |
Model No |
8412256 |
Conductor Material |
Copper Conductor |
No of Core |
3 Core |
Voltage Rating |
300 V |
Nominal Area |
0.75 Sqmm |
Insulation Material |
PVC Insulated |
Sheath Material |
PVC |
Length |
100 m |
Country of Origin |
United Kingdom |
Standard Met |
BASEC, IEC 60227-5, IEC 60228 Class 5, RoHS Compliant, TS 9760 HD 21.5.S3, VDE 0281-5 |
Conductor Resistance |
26 Ω/km |
Wire Gauge |
18 AWG |
Outer Diameter |
5.97 mm |
Maximum Operating Temperature |
+70°C |
Conductor Type |
Stranded |
Minimum Operating Temperature |
-50°C |
Harmonization Code |
H03VV-F |
Armoured / Unarmoured |
- |
Name of Manufacturer/Packer/Importer |
RS Component |
