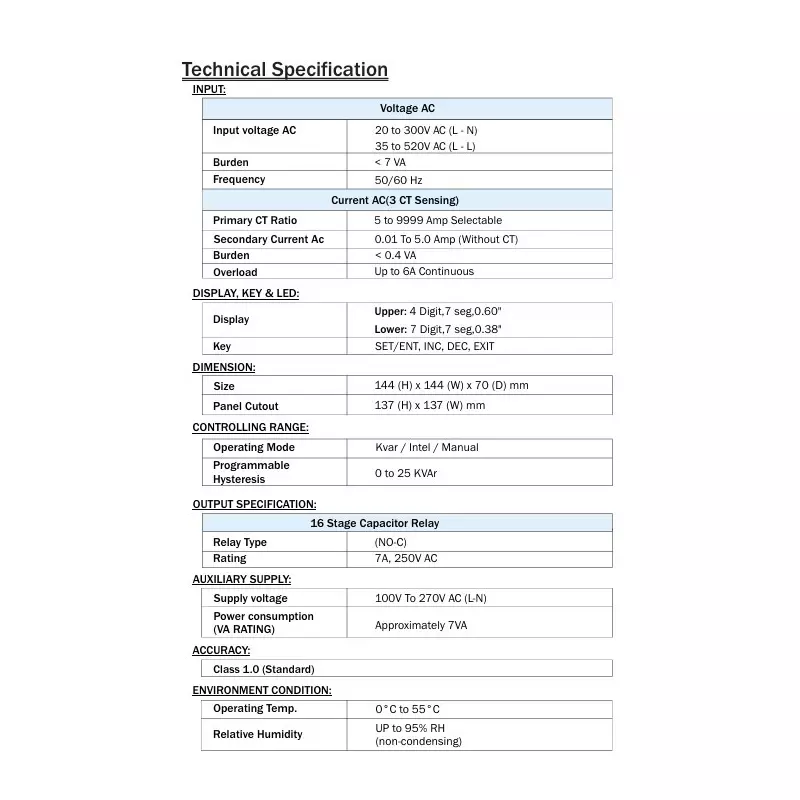

| Model No | APFC-316 |
| Phase | 3 Phase |
| Type of Product | Automatic Power Factor Controller |
| Frequency | 50/60 Hz |
Model No |
APFC-316 |
Phase |
3 Phase |
Type of Product |
Automatic Power Factor Controller |
Frequency |
50/60 Hz |
Output |
16 Relay Output |
Relative Humidity |
UP to 95% RH (non-condensing) |
Display |
Upper: 4 Digit, 7 seg, 0.60 inch (15.24 mm), Lower: 7 Digit, 7 seg, 0.38 inch (9.65 mm) |
Size |
144 X 144 X 70 mm |
Country of Origin |
India |
Power Consumption |
Approximately 7 VA |
Operating Temperature |
0°C to 55°C |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Supply Voltage |
100 V to 270 V AC (L-N) |
Rating |
7 A, 250 V AC |
Relay Type |
(NO-C) |
Input Voltage (AC) |
20 to 300 V AC (L - N), 35 to 520 V AC (L - L) |
Burden |
< 7 VA |
Hysteresis |
0 to 25 KVAr |
Secondary Current |
0.01 to 5.0 A (Without CT) |
Key |
SET/ENT, INC, DEC, EXIT |
Operating Mode |
Kvar / Intel / Manual |
Panel Cutout |
137 (H) x 137 (W) mm |
Accuracy Class |
Class 1.0 (Standard) |
CT ratio |
Primary: 5 to 9999 A Selectable |
Overload |
Up to 6A Continuous |
