| Voltage Accuracy | ±0.5% +2 Digits |
| Power Source | Battery, Mains |
| Display Type | Backlit LCD |
| Battery Life | 20h |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Voltage Accuracy |
±0.5% +2 Digits |
Power Source |
Battery, Mains |
Display Type |
Backlit LCD |
Battery Life |
20h |
No. of Phases |
1, 3 |
Battery Type |
AA |
Type of Product |

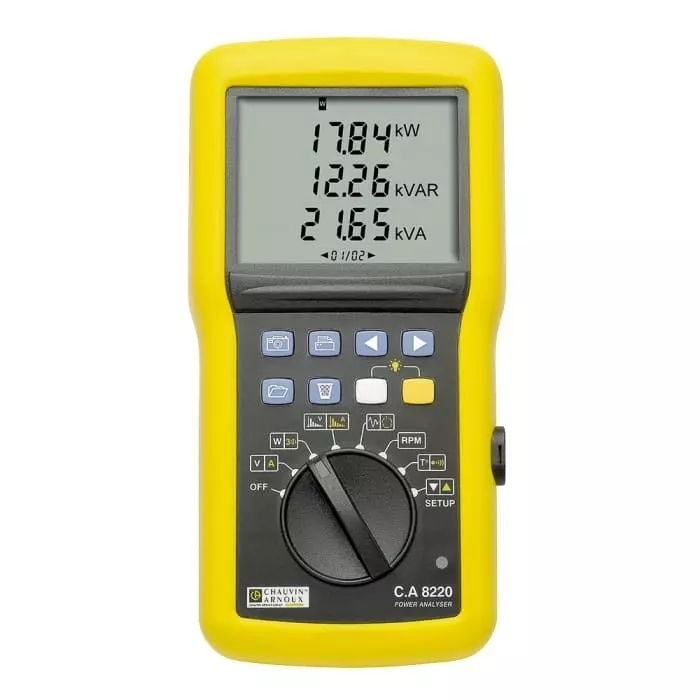

Power Quality Analyser |
Weight |
880 g |
Dimension |
211 x 108 x 60 mm |
Model No |
CA 8220 |
Length |
211 mm |
Country of Origin |
France |
Width |
108 mm |
Height |
60 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Frequency |
69Hz |
Minimum Frequency |
40 Hz |
Manufacturer Part Number |
P01160620 |
Absolute Maximum Power Measurement |
9999 kW, 9999 kVar, 9999kVA |
Minimum Operating Temperature |
0°C |
Maximum Operating Temperature |
+50°C |
Measurement type |
Current, Energy, Frequency, Harmonics, Inrush Current, Phase rotation, Power, Resistance (winding), RPM, Temperature, Voltage |
Current Measurement Accuracy |
±0,5% +1 Digit |
Maximum Voltage |
600 V AC |
Interface Type |
RS232, USB |
Measurement Standards |
IEC62301 |
Maximum Current Measurement |
Absolute: 6500 A AC, 1700 A DC |
