| Basic Accuracy | (Active power) ±0.1%rg.±0.1%fs(C), ±0.1%rg.±0.05%fs(45zto66zatInput<50%fs), ±0.15%rg.(45zto66zat50%fs≦Input) |
| Input Resistance | Voltage: 2MΩ Current: 1mΩ or less (direct input) (50/60Hz) |
| Power Supply | AC 100 V to 240 V， 50/60 Hz， 40 VA |

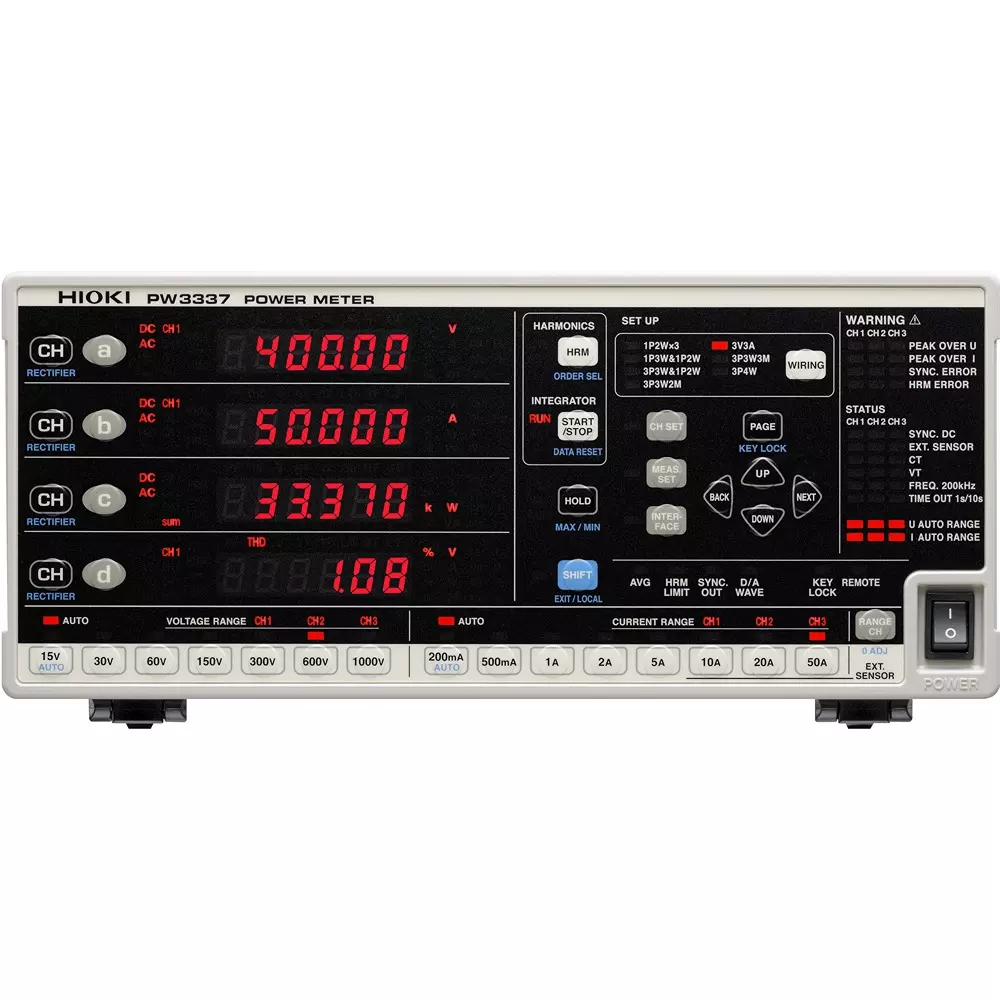

| Type of Product | Power Meter |
Basic Accuracy |
(Active power) ±0.1%rg.±0.1%fs(C), ±0.1%rg.±0.05%fs(45zto66zatInput<50%fs), ±0.15%rg.(45zto66zat50%fs≦Input) |
Input Resistance |
Voltage: 2MΩ Current: 1mΩ or less (direct input) (50/60Hz) |
Power Supply |
AC 100 V to 240 V， 50/60 Hz， 40 VA |
Type of Product |
Power Meter |
Measurement Range |
[Voltage] AC/DC 0.15 V to 1000 V, [Current] Direct input: AC/DC 2 mA to 65 A, AC/DC current sensor usage example: AC/DC 4 A to 2000 A (CT6877A, typical accuracy ±0.348 %), AC sensor usage example: AC 10 A to 5000 A (CT9667-01, typical accuracy ±2.6%) |
Interface |
RS-232C/LAN standard equipment GP-IB compatible |
Model No |
PW3337-03 |
Country of Origin |
Japan |
Included Components |
Instruction manual x 1 Measurement guide x 1 Power cord x 1 |
Monotaro ID |
52596095 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Output |
D/A: 16c (select output item from below) Level output C±2V waveform output 1Vf.s., level output/waveform output (voltage/current/active power) level output (apparent power/reactive power/power factor/ etc.) High-speed active power level output |
Import Country |
Direct Import from Japan |
Function |
[Rectification method switching] AC+DC, AC+DC Umn, AC, DC, FND, auto range, average, VT/CT setting, synchronous control, MAX/MIN, etc. |
Frequency Characteristic |
C0.1z to 100kz |
Measuring Unit |
Voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, efficiency, current integration, active power integration, integration time, voltage waveform peak value, current waveform peak value, voltage crest factor, current crest factor , time average current, time average active power, voltage ripple rate, current ripple rate |
Specifications |
[Harmonics] Synchronous frequency range: 10 Hz to 640 Hz, analysis order: up to 50th order, harmonic voltage effective value, harmonic current effective value, harmonic active power, total harmonic voltage distortion rate, total harmonic current distortion fundamental wave ratio, fundamental wave voltage, fundamental wave current, fundamental wave active power, fundamental wave apparent power, fundamental wave reactive power, fundamental wave power factor (displacement power factor), fundamental wave voltage-current phase difference, channel-to-channel voltage fundamental wave phase difference, Inter-channel current fundamental wave phase difference, harmonic voltage content rate, harmonic current content rate, harmonic active power content rate (data acquisition only with dedicated software: harmonic voltage phase angle, harmonic current phase angle, harmonic voltage current) phase difference) |
Dimension (WxDxH) |
305x132x256 mm |
Mass (Kg) |
5.6 |
Measurement Method |
Integral measurement (integration: within 10,000 hours): [Current] 6-digit display (0.00000 mAh to , polarity and total value), [Active power] 6-digit display (0.00000 mWh to , polarity and total value) |
Display Update Rate |
Approximately 5 times/s to 20 s (varies depending on the average number setting) |
Measuring Time |
Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire (voltage/current range can be set for each connection) |
