| Basic Accuracy | (Active power) ±0.1%rg.±0.1%fs(C), ±0.1%rg.±0.05%fs(45zto66zatInput<50%fs), ±0.15%rg.(45zto66zat50%fs≦Input) |
| Input Resistance | Voltage: 2MΩ Current: 520mΩ or less (1mA to 100mA range) 15mΩ or less (200mA to 20A range) (50/60Hz) |
| Power Supply | AC 100 V to 240 V50/60z30 VA |

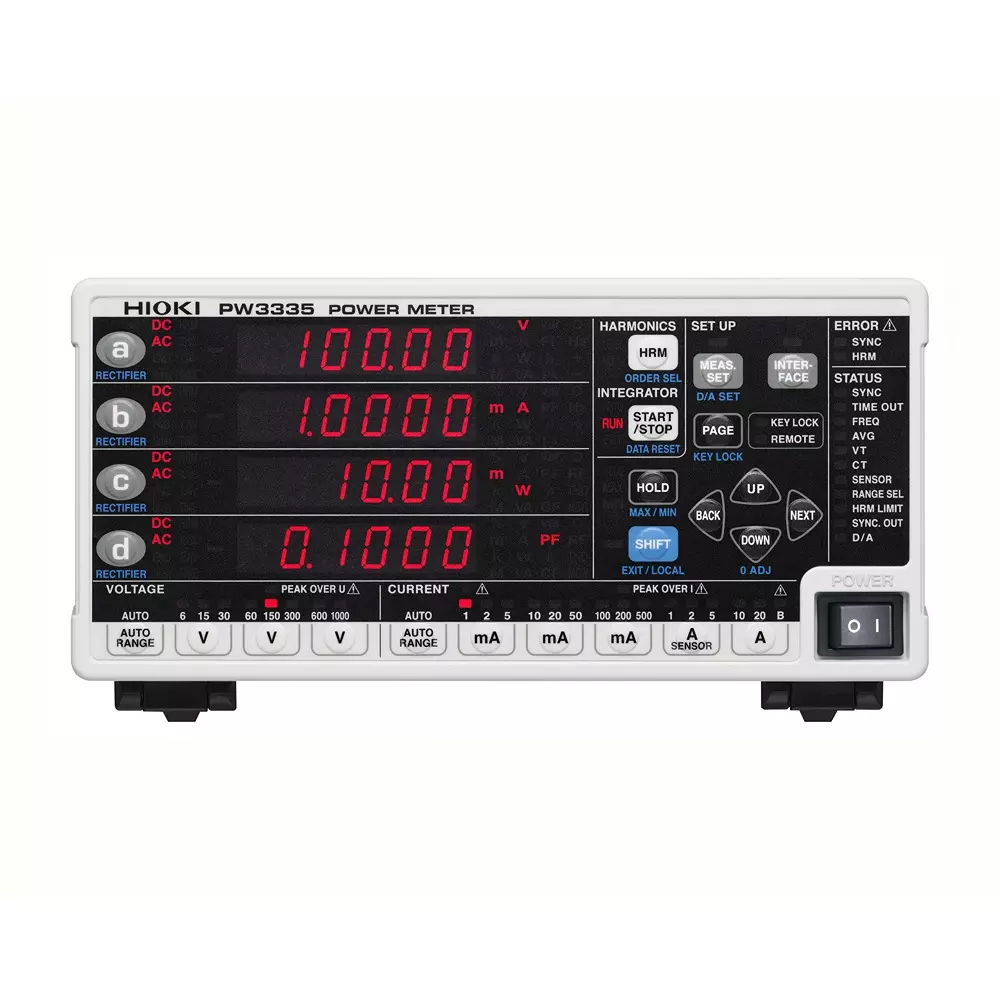

| Type of Product | Power Meter |
Basic Accuracy |
(Active power) ±0.1%rg.±0.1%fs(C), ±0.1%rg.±0.05%fs(45zto66zatInput<50%fs), ±0.15%rg.(45zto66zat50%fs≦Input) |
Input Resistance |
Voltage: 2MΩ Current: 520mΩ or less (1mA to 100mA range) 15mΩ or less (200mA to 20A range) (50/60Hz) |
Power Supply |
AC 100 V to 240 V50/60z30 VA |
Type of Product |
Power Meter |
Measurement Range |
[Voltage] AC/C 6V to 1000V 8 ranges, [Current] AC/C 1mA to 20A 14 ranges, [Power] 6.0000m to 20.000k (depending on the combination of voltage and current range), Power factor effect: 0.1%fs or less (45z to 66zPF=0) |
Interface |
LAN standard equipment RS-232C |
Model No |
PW3335 |
Country of Origin |
Japan |
Included Components |
Instruction manual x 1 Power cord x 1 Safety cover for voltage/current input terminals x 2 Safety cover mounting screws (M3 x 6) x 4 |
Monotaro ID |
52595998 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Import Country |
Direct Import from Japan |
Function |
[Rectification method switching] AC+CAC+CUmnACCFN, auto range average VT/CT setting synchronous control MAX/MIN, etc. [Logger connection] Measured values can be wirelessly sent to a logger compatible with IOKILR8410Link (other than P3335-01), (Bluetooth(R) (Use a serial conversion adapter compatible with wireless technology Ver. 1.1 or later) |
Frequency Characteristic |
C0.1z to 100kz |
Measuring Unit |
Voltage Current Active Power Apparent Power Reactive Power Power Factor Phase Angle Frequency Maximum Current Ratio Current Integration Active Power Integration Integration Time Voltage Waveform Peak Value Current Waveform Peak Value Voltage Crest Factor Current Crest Factor Time Average Current Time Average Active Power Voltage Ripple Rate Current Ripple Rate |
Specifications |
[Harmonics] Synchronous frequency range: 10z to 640z Analysis order: up to 50th harmonic voltage effective value harmonic current effective value harmonic active power total harmonic voltage distortion rate total harmonic current distortion rate fundamental voltage fundamental current Fundamental active power Fundamental apparent power Fundamental reactive power Fundamental power factor (displacement power factor) Fundamental voltage current phase difference Harmonic voltage content rate Harmonic current content rate Harmonic active power content rate, (data acquisition using dedicated software) Only: harmonic voltage phase angle harmonic current phase angle harmonic voltage current phase difference) |
Dimension (WxDxH) |
210x100x245 mm |
Mass (Kg) |
3 |
Measurement Method |
Integration measurement (integration: within 10,000 hours): Fixed range integration/auto range integration switchable, [Current] 6-digit display (0.00000mA to polarity and total value), [Active power] 6-digit display (0.00000m to polarity and total value) and total value) |
Display Update Rate |
Approximately 5 times/s to 20s (varies depending on the average number setting) |
Measuring Time |
Single-phase two-wire |
