| Basic Accuracy | (Active power) ±0.1%rg.±0.1%fs(C), ±0.1%rg.±0.05%fs(45zto66zatInput<50%fs), ±0.15%rg.(45zto66zat50%fs≦Input) |
| Input Resistance | Voltage: 2MΩ Current: 1mΩ or less (direct input) (50/60Hz) |
| Power Supply | AC 100 V to 240 V50/60z40 VA |
| Type of Product | Power Meter |
Basic Accuracy |
(Active power) ±0.1%rg.±0.1%fs(C), ±0.1%rg.±0.05%fs(45zto66zatInput<50%fs), ±0.15%rg.(45zto66zat50%fs≦Input) |
Input Resistance |
Voltage: 2MΩ Current: 1mΩ or less (direct input) (50/60Hz) |
Power Supply |
AC 100 V to 240 V50/60z40 VA |
Type of Product |
Power Meter |
Measurement Range |
[Voltage] AC/C0.15V to 1000V, [Current] Direct input: AC/C 2mA to 65A, AC/C current sensor usage example: AC/C4A to 2000A (CT6877A, typical accuracy ±0.348%), AC sensor usage example :AC10A to 5000A (CT9667-01, typical accuracy ±2.6%) |
Model No |

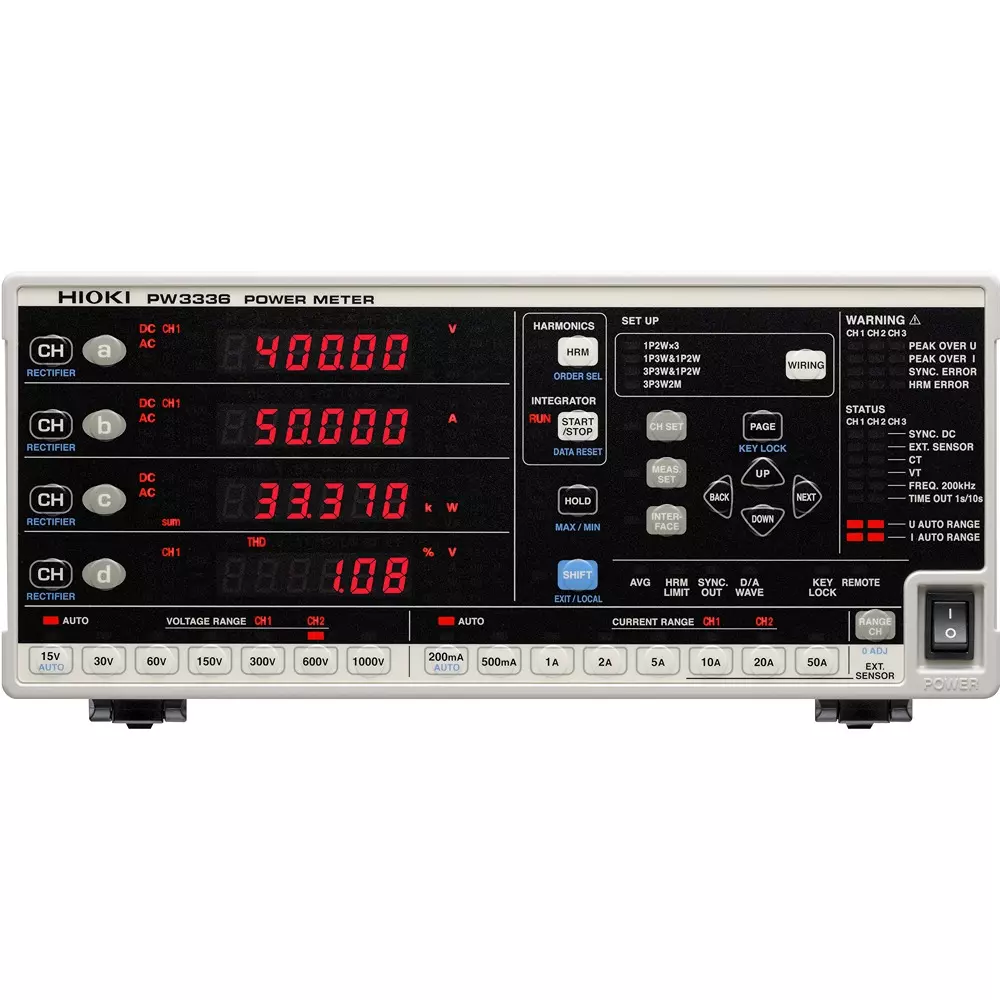

PW3336-02 |
Country of Origin |
Japan |
Included Components |
Instruction manual x 1 Measurement guide x 1 Power cord x 1 |
Monotaro ID |
52596050 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Output |
D/A: 16c (select output item from below) Level output C±2V waveform output 1Vf.s., level output/waveform output (voltage/current/active power) level output (apparent power/reactive power/power factor/ etc.) High-speed active power level output |
Import Country |
Direct Import from Japan |
Function |
[Rectification method switching] AC+CAC+CUmnACCFN, auto range average VT/CT setting synchronous control MAX/MIN, etc. |
Frequency Characteristic |
C0.1z to 100kz |
Measuring Unit |
Voltage Current Active Power Apparent Power Reactive Power Power Factor Phase Angle Frequency Efficiency Current Integration Active Power Integration Integration Time Voltage Waveform Peak Value Current Waveform Peak Value Voltage Crest Factor Current Crest Factor Time Average Current Time Average Active Power Voltage Ripple Rate Current Ripple Rate |
Specifications |
[Harmonics] Synchronous frequency range: 10z to 640z Analysis order: up to 50th harmonic voltage effective value harmonic current effective value harmonic active power total harmonic voltage distortion rate total harmonic current distortion rate fundamental voltage fundamental current Fundamental active power Fundamental apparent power Fundamental reactive power Fundamental power factor (displacement power factor) Fundamental voltage and current Phase difference Channel voltage Fundamental phase difference Channel current Fundamental phase difference Harmonic voltage content rate Harmonic current content rate harmonic active power content (data acquisition only with dedicated software: harmonic voltage phase angle harmonic current phase angle harmonic voltage current phase difference) |
Dimension (WxDxH) |
305x132x256 mm |
Mass (Kg) |
5.2 |
Measurement Method |
Integral measurement (integration: within 10,000 hours): [Current] 6-digit display (0.00000mA to polarity and total value), [Active power] 6-digit display (0.00000m to polarity and total value) |
Display Update Rate |
Approximately 5 times/s to 20s (varies depending on the average number setting) |
Measuring Time |
Single-phase, two-wire, single-phase, three-wire, three-phase, three-wire (voltage/current range can be set for each connection) |
