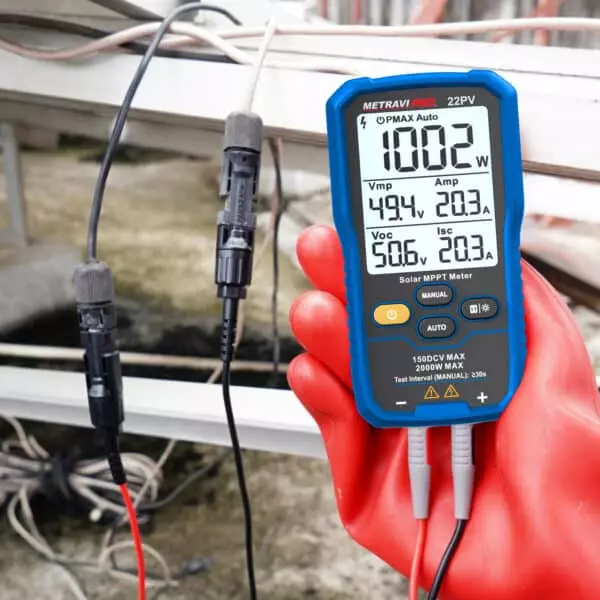

Metravi Solar MPPT Meter with 2000 W PMax and ≤800W ±(1.0% + 5) Accuracy, PRO 22PV

Name: Metravi Solar MPPT Meter with 2000 W PMax and ≤800W ±(1.0% + 5) Accuracy, PRO 22PV
Brand: Metravi
SKU: TES.POW.647523234
Price: 34805 INR
Availability: InStock

Visit the Metravi Store

EMI starts at ₹3092/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Power Supply	AAA 1.5 V × 3 Alkaline Batteries
Application	Solar PV module and string performance testing Commissioning and maintenance of rooftop and utility-scale solar plants Fault detection, mismatch analysis, and degradation checks Performance comparison before and after cleaning or repairs
Type of Product	Solar MPPT Meter

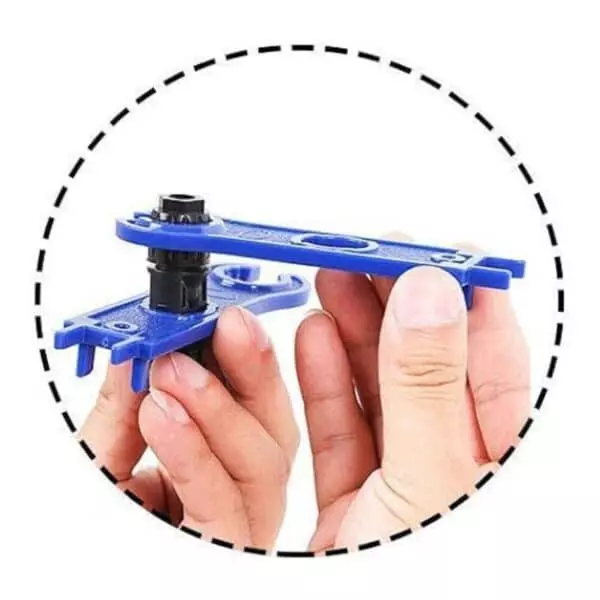

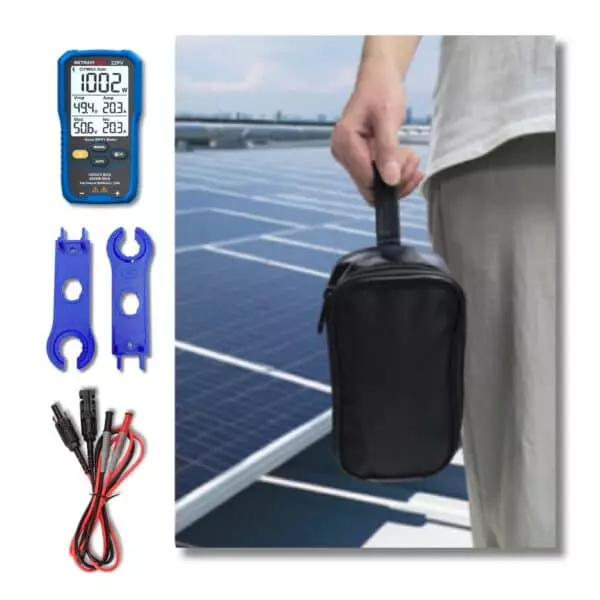

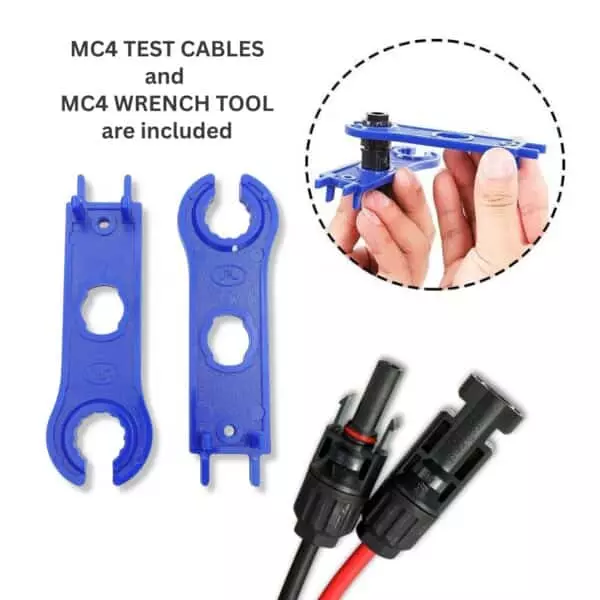

Package Contains	Solar MPPT Meter, MC4 Dedicated Test Leads, Standard MC4 Dedicated Wrench Tool, User Manual, Carrying Case

More Metravi Power Meters and Analyzers products More Power Meters and Analyzers products

1 Year

7 Days Return Policy

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Power Supply	AAA 1.5 V × 3 Alkaline Batteries
Application	Solar PV module and string performance testing Commissioning and maintenance of rooftop and utility-scale solar plants Fault detection, mismatch analysis, and degradation checks Performance comparison before and after cleaning or repairs
Type of Product	Solar MPPT Meter
Package Contains	Solar MPPT Meter, MC4 Dedicated Test Leads, Standard MC4 Dedicated Wrench Tool, User Manual, Carrying Case
Color	Blue-Black
Resolution	0.1 W
Accuracy	≤800 W ±(1.0%+5)
Features	Pmax up to 1000W/2000W High Accuracy IP55 protection for outdoor use Anti-reverse Polarity and Input Protection Overload indication (OL) Auto power-off after approx. 10 minutes
Model No	PRO 22PV
Protection	Input Protection: Forward/reverse protection, Anti-mistake input, positive and negative Temperature Protection: Long term temperature measurement exceeding 60 degrees, over temperature protection stops testing
Country of Origin	India
Maximum Power	2000 W
Indication	Overload Indication
Name of Manufacturer/Packer/Importer	METRAVI
Open Circuit Voltage	150 V, Accuracy: ±(1.0%+5), Resolution: 0.1 V
Auto Shutoff	About 10 minutes
Short Circuit Current	45 A, Accuracy: ±(1.5%+5), Resolution: 0.1 A
Warranty Details	1 Year Against Manufacturing Defects
Warranty Duration	1 Year
Maximum Power Current	45 A, Accuracy: ±(1.0%+5), Resolution: 0.1 A
Maximum Power Voltage	150 V, Accuracy: ≥810 W±(1.5%+5), Resolution: 0.1 V
Sampling	3 times per sec
