| Display Type | Large LCD (52 x 66 mm) |
| Operating Temperature | 18°C to 28°C |
| Type of Product | Solar MPPT Meter |
| Weight | Approx. 154 g |
Display Type |
Large LCD (52 x 66 mm) |
Operating Temperature |
18°C to 28°C |
Type of Product |
Solar MPPT Meter |
Weight |
Approx. 154 g |
Package Contains |

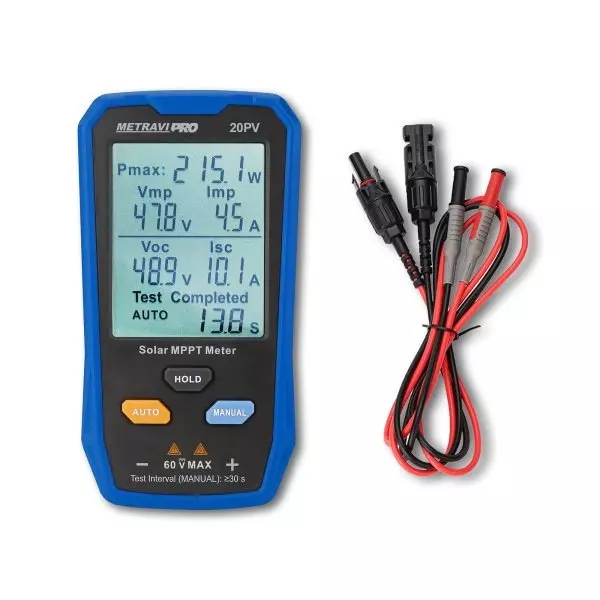

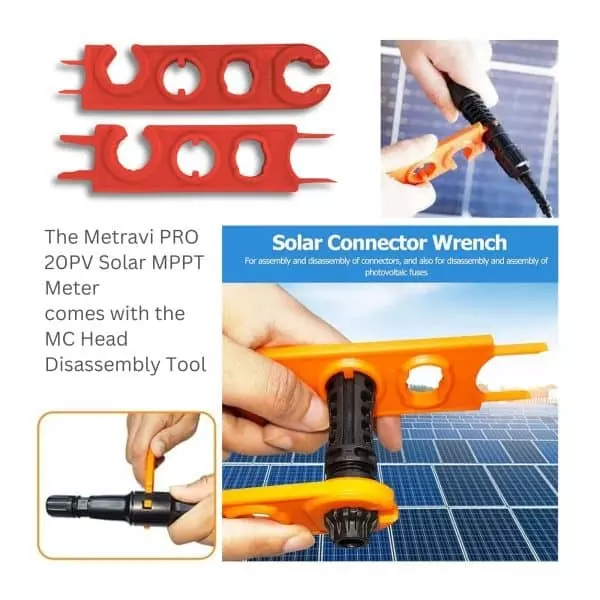

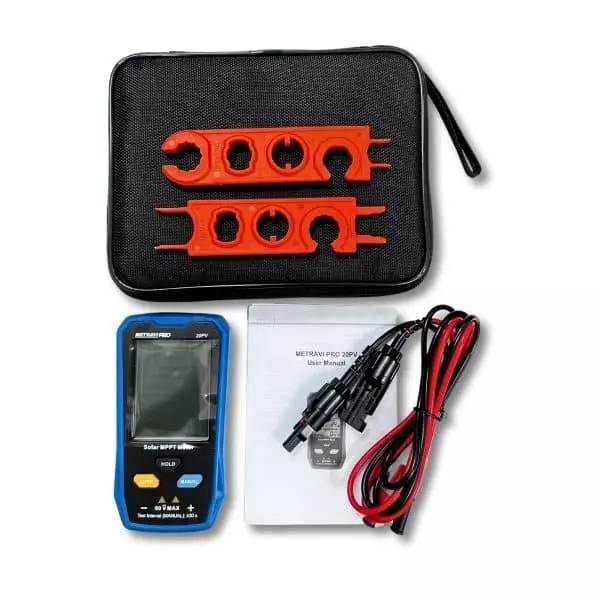

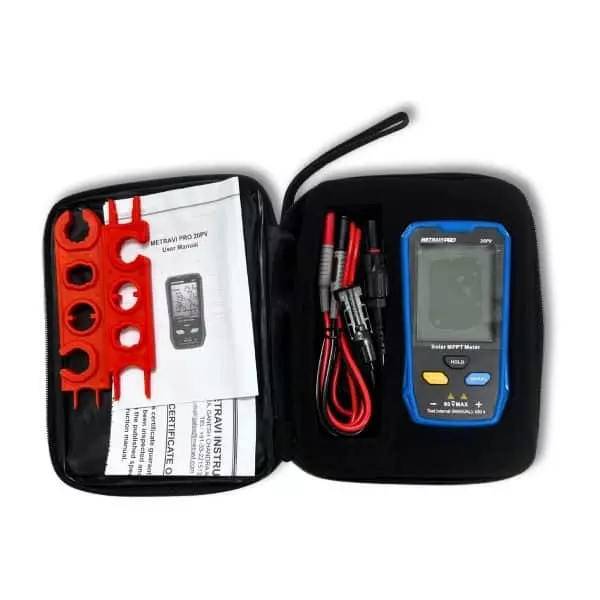

1 x Solar MPPT Meter, 1 x Carrying Case, 2 x MC4 Spanners, 1 x User Manual, 1 x Test Cable Set (MC4 to Alligator Clips). |
Certification |
CE, Pollution Degree 2, RoHS, CAT 0 60V, cETLus |
Color |
Blue-Black |
Dimension |
142 x 76 x 22 mm |
Features |
Maximum Power Test (Pmax): 5 - 800W Peak Power Voltage (Vmp): 12 - 60V Peak Power Current (Imp): 0 - 35A Open Circuit Voltage (Voc): 12 - 60V Short Circuit Current (Isc): 0 - 35A Large screen and multiple result display: A single measurement that displays all essential test values can significantly enhance work efficiency. No batteries needed, powered by the solar panel: There is no requirement for batteries as the measurement can be effortlessly performed for extended periods. Equipped with MC4 test lead: With the MC4 connector already included, there is no need for additional solar panel connectors. This enables quick and efficient measurements to be performed effortlessly. Portable and convenient: With its portable and lightweight design, this meter provides operators with convenience and ease of use, making it an incredibly versatile and indispensable tool for a wide range of tasks. Certifications: CE, cETLus, RoHS |
Model No |
PRO 20PV |
Protection |
Over-current protection, Over-power protection, Over-temperature protection, Over-voltage protection, Protection against reverse polarity connections |
Country of Origin |
India |
Maximum Power |
Measurement Range: 5 - 800 W, Accuracy: ±(1.0%＋10), Resolution: 0.1 W, |
Name of Manufacturer/Packer/Importer |
METRAVI |
Open Circuit Voltage |
12 - 60 V |
Function |
Data Hold |
Indicator Type |
Over Range |
Short Circuit Current |
0 - 35 A, Accuracy: ±(1.5%＋5), Resolution: 0.1 A |
Test Mode |
Manual / Auto |
Warranty Details |
1 Year Against Manufacturing Defects |
Warranty Duration |
1 Year |
Drop Resistance |
1 m |
Maximum Power Current |
0 - 35 A, Accuracy: ±(1.5%＋5), Resolution: 0.1 A |
Operating Altitude |
≤ 2000 m |
Maximum Power Voltage |
Range: 12 - 60 V, Accuracy: ±(1.5%＋5), Resolution: 0.1 V |
Peak Power Voltage |
12 - 60 V |
