| Relative Humidity | 95 % RH Non-Condensing |
| Size | 96 X 96 X 54 mm |
| Power Supply | 100 to 270 V AC (VL1 & N) |
| Display | 4 Digit , 3 Line 7 Seg. 0.56 inch (14.22 mm) Red LED |
Relative Humidity |
95 % RH Non-Condensing |
Size |
96 X 96 X 54 mm |
Power Supply |
100 to 270 V AC (VL1 & N) |
Display |
4 Digit , 3 Line 7 Seg. 0.56 inch (14.22 mm) Red LED |
Storage Temperature |
0 to 55°C |
Phase |
3 Phase |

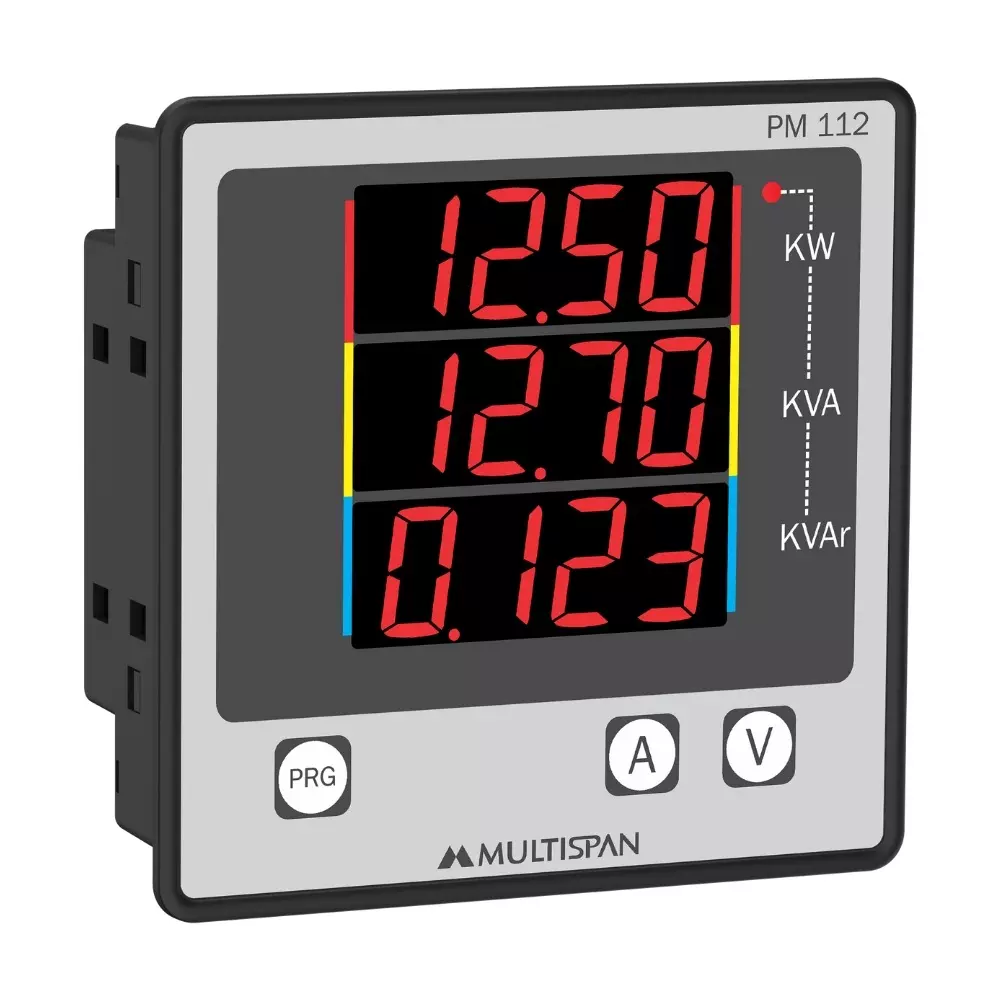

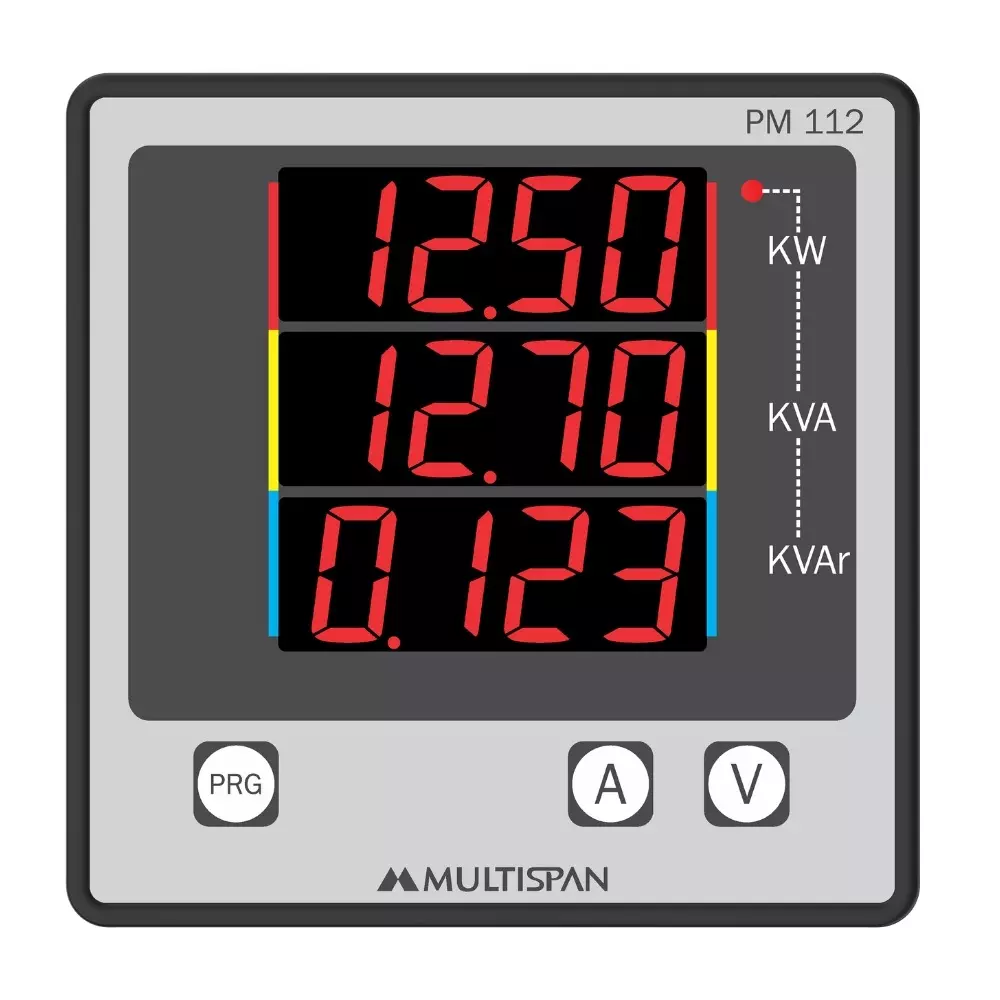

Type of Product |
Power Analyzer |
Model No |
PM-112 |
Frequency Range |
45.0 to 65.0 Hz |
Power |
0.000 - 9999 kW, 0.000 - 9999 kVA, 0.000 - 9999 kVAr |
Country of Origin |
India |
Working Temperature |
0 to 55°C |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Panel Cutout |
92 (H) x 92 (W) mm |
Protection Level |
IP-65 (Front side As per IS/IEC 60529 : 2001) |
Burden |
3 VA |
CT Primary |
UP to 9999 A (Programmable) |
Key |
PRG , A, Volt |
Input Signal |
3Ø 4 Wire |
System PF |
0.100 - 1.000 |
