| Contact Configuration | DPDT |
| Coil Resistance | 190 Ω |
| No. of Pole | 2 |

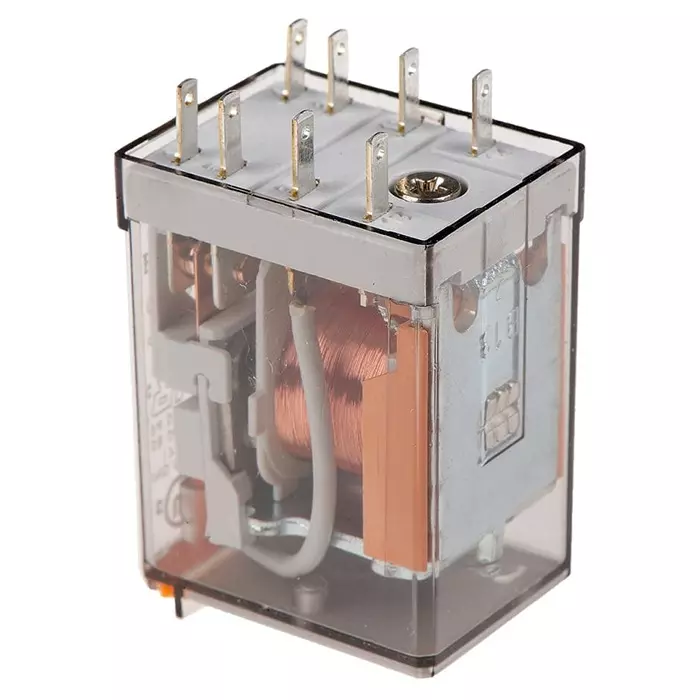

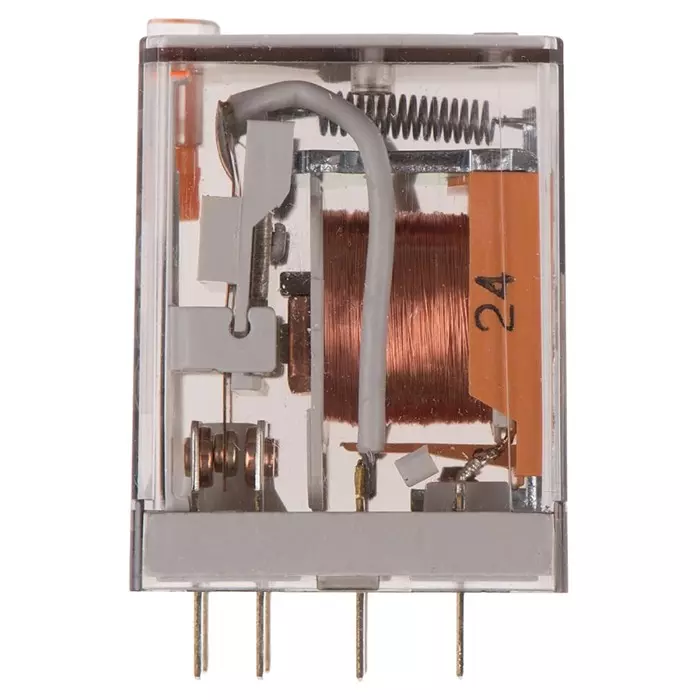

| Type of Product | Power Relay |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Contact Configuration |
DPDT |
Coil Resistance |
190 Ω |
No. of Pole |
2 |
Type of Product |
Power Relay |
Application |
General Purpose |
Mounting Type |
Plug In |
Series |
55 Series |
Coil Voltage |
24 V AC |
Height |
37.2 mm |
Length |
27.7 mm |
Terminal Type |
Quick Connect |
Latching |
No |
Switching Current |
10 A |
Depth |
20.7 mm |
Coil Power Consumption |
1.5 W |
Country of Origin |
Italy |
Isolation Coil To Contact |
4 kV |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Switching Power AC |
2.5 kVA |
Maximum Switching Voltage (AC) |
400 V AC |
Manufacturer Part Number |
55.32.8.024.0040 |
