| Contact Configuration | 3PDT |
| Coil Resistance | 290 Ω |
| No. of Pole | 3 |

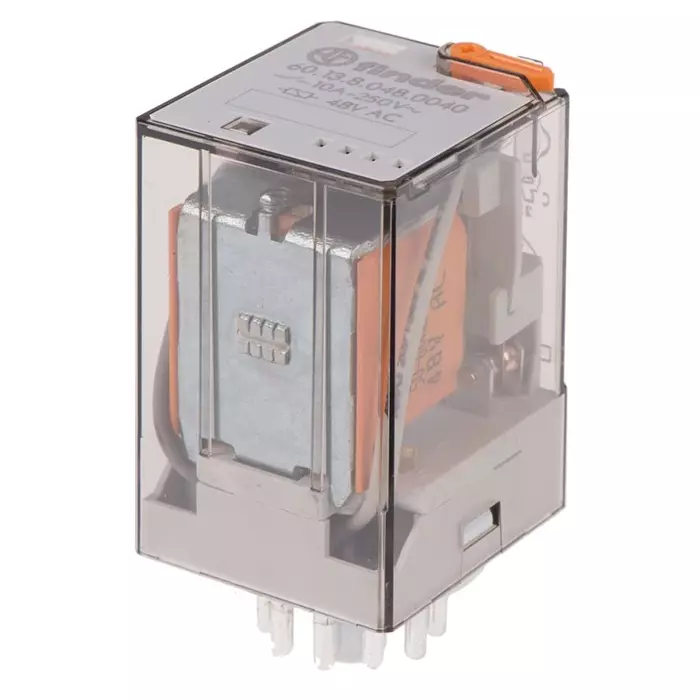

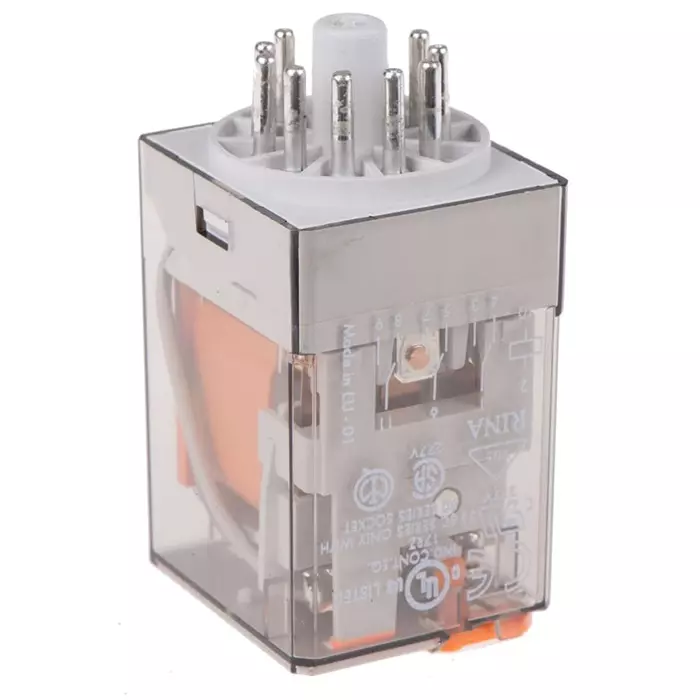

| Type of Product | Power Relay |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Contact Configuration |
3PDT |
Coil Resistance |
290 Ω |
No. of Pole |
3 |
Type of Product |
Power Relay |
Application |
General Purpose |
Mounting Type |
Plug In |
Series |
60 Series |

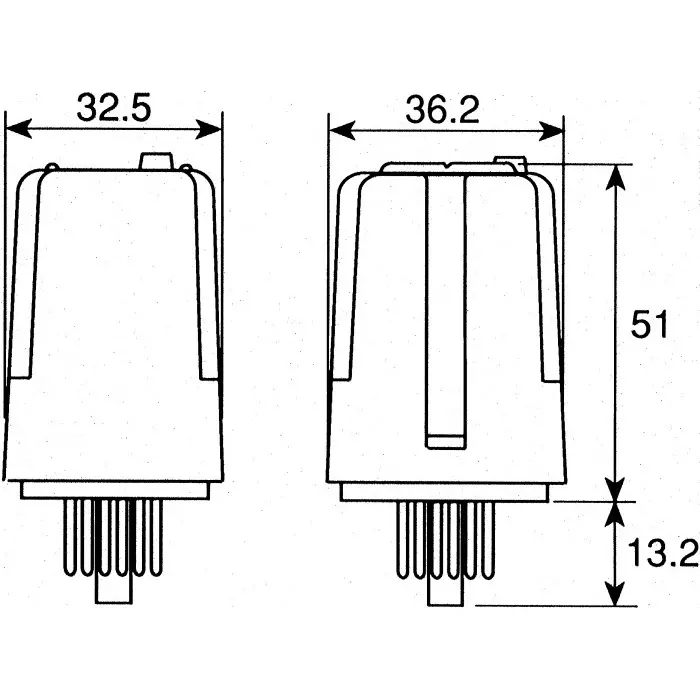

Dimension |
32.5x54.2x36.4 mm |
Coil Voltage |
48 V AC |
Height |
54.2 mm |
Length |
32.5 mm |
Terminal Type |
PCB Pin |
Latching |
No |
Switching Current |
10 A |
Depth |
36.4 mm |
Coil Power Consumption |
1.3 W |
Country of Origin |
Italy |
Isolation Coil To Contact |
3.6 kV |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Switching Power AC |
2.5 kVA |
Maximum Switching Voltage (AC) |
400 V AC |
Manufacturer Part Number |
60.13.8.048.0040 |
Standards Met |
CCC, CE, cLUus, CSA, EAC, ENEC03, LR, RINA, VDE |
Operating Cycle |
200000 Cycles |
