| Contact Configuration | DPST-2NO |
| Coil Resistance | 6250 Ω |
| No. of Pole | 3 |

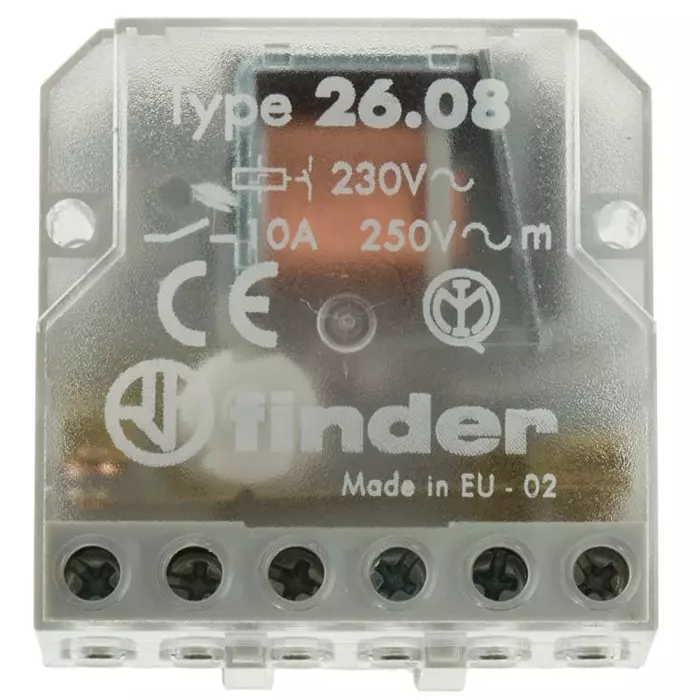

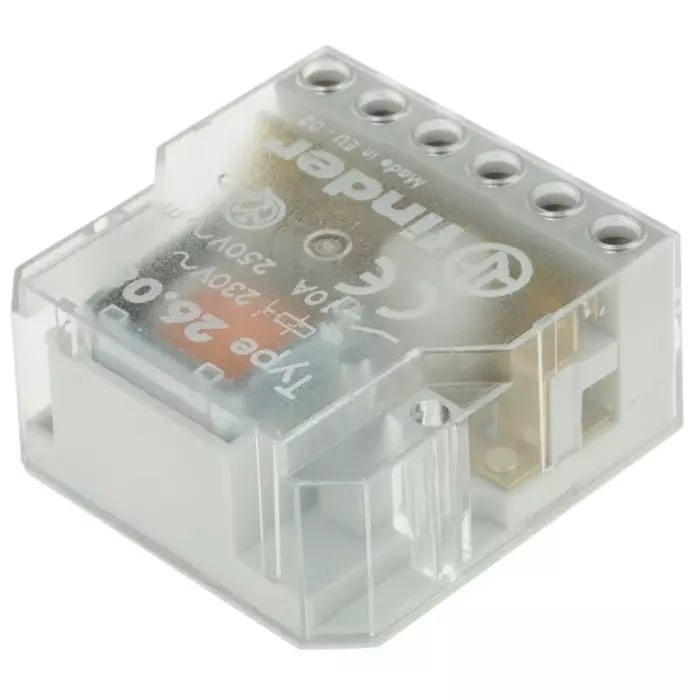

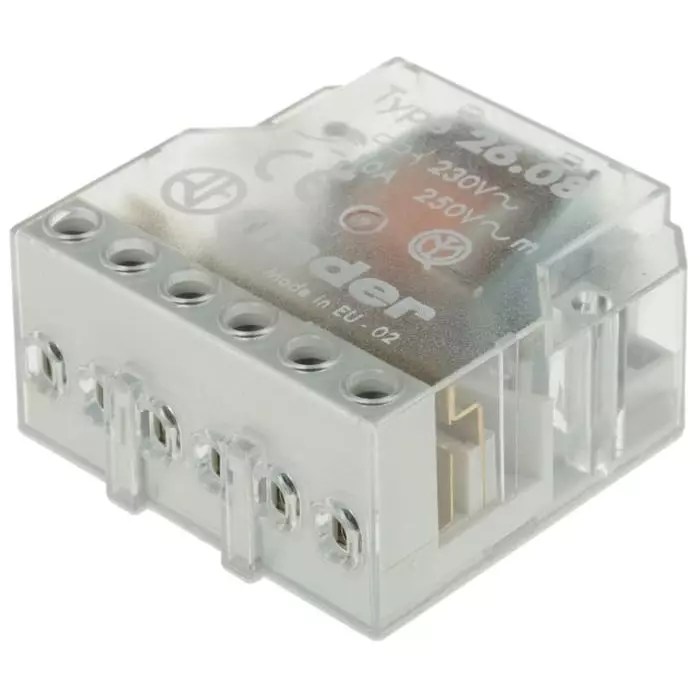

| Type of Product | Modular Step Relay |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Contact Configuration |
DPST-2NO |
Coil Resistance |
6250 Ω |
No. of Pole |
3 |
Type of Product |
Modular Step Relay |
Mounting Type |
Panel Mount |
Series |
26 Series |
Coil Voltage |
230 V AC |
Height |
46.6 mm |
Length |
45 mm |
Terminal Type |
Screw |
Latching |
No |
Switching Current |
10 A |
Depth |
22 mm |
Coil Power Consumption |
4.5 W |
Country of Origin |
Italy |
Isolation Coil To Contact |
4 kV |
Maximum Operating Temperature |
+40°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Switching Power AC |
2.5 kVA |
Maximum Switching Voltage (AC) |
400 V AC |
Manufacturer Part Number |
26.08.8.230.0000 |
Operating Cycle |
100000 (Electrical) Cycles, 300000 (DC/AC Mechanical) Cycles |
