| Contact Configuration | SPST |
| Coil Resistance | 720 Ω |
| No. of Pole | 1 |
| Type of Product | Power Relay |
Contact Configuration |
SPST |
Coil Resistance |
720 Ω |
No. of Pole |
1 |
Type of Product |
Power Relay |
Application |
Power |
Contact Material |
Silver Alloy |
Mounting Type |
PCB Mount |
Coil Voltage |
12 V DC |
Height |
15 mm |
Length |
20.3 mm |
Terminal Type |
PCB Pin |
Latching |
No |
Switching Current |
5 Amp |
Depth |
7 mm |
Coil Power Consumption |
200 mW |
Country of Origin |
United Kingdom |
Isolation Coil To Contact |
10 kV |
Life Expectancy |
100x10³ Operations |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
Fujitsu |
Maximum Switching Power AC |
1.25 kVA |
Maximum Switching Power DC |
150 W |
Maximum Switching Voltage DC |
30 V DC |
Product Code |
7903322 |
Manufacturer Part Number |

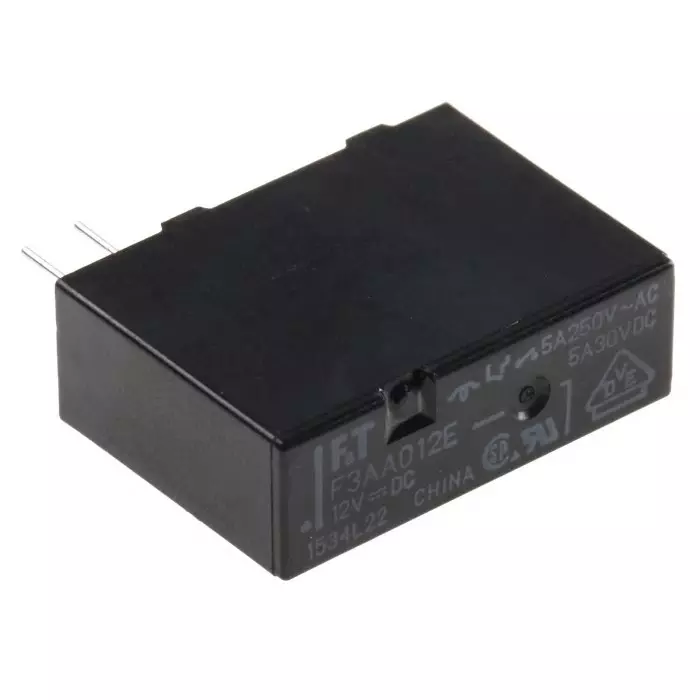

FTR-F3AA012E-HA |
Maximum Switching Voltage AC |
277 V AC |
