Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 100 |
| Power Consumption | 2.5 VA or less |
| Withstand Voltage | 2000VAC For 1 minute Between External Terminals And Case Between Power Supply Terminals And Input Terminals Between Power Supply Terminals And Output Terminals Between Input Terminals And Output Terminals |
| Monotaro ID | 24414328 |
Mass (g) |
About 100 |
Power Consumption |
2.5 VA or less |
Withstand Voltage |
2000VAC For 1 minute Between External Terminals And Case Between Power Supply Terminals And Input Terminals Between Power Supply Terminals And Output Terminals Between Input Terminals And Output Terminals |
Monotaro ID |
24414328 |
Rated Insulation Voltage (V) |
AC600 |
Type of Product |

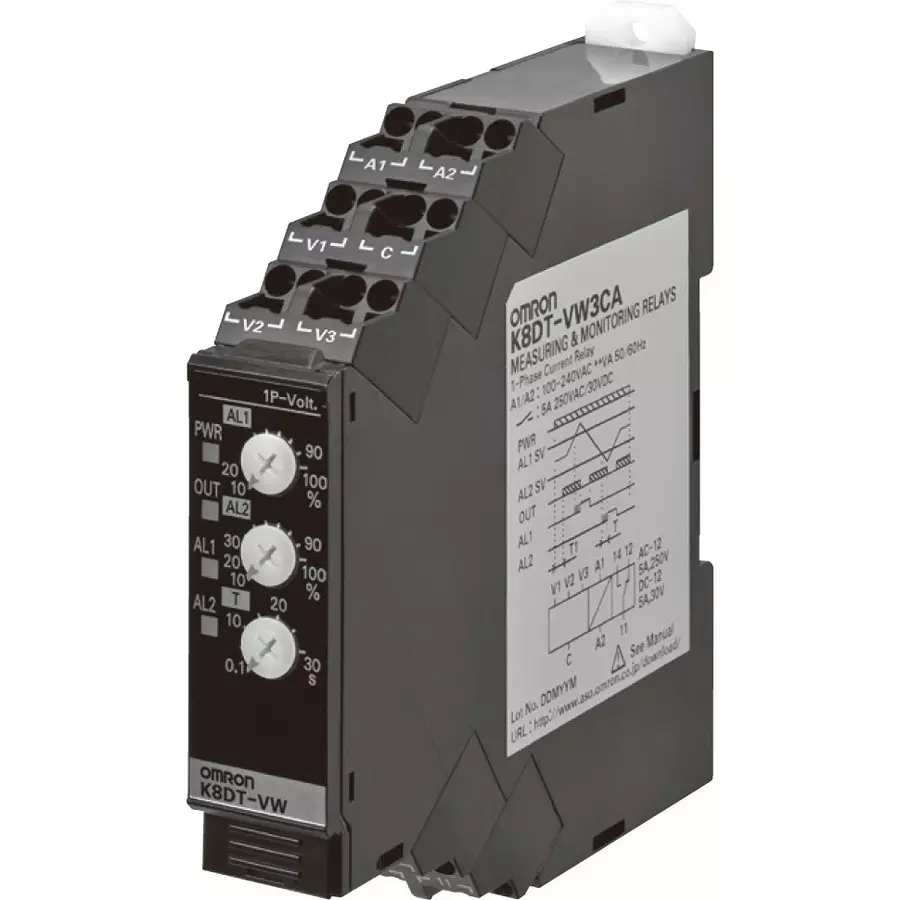

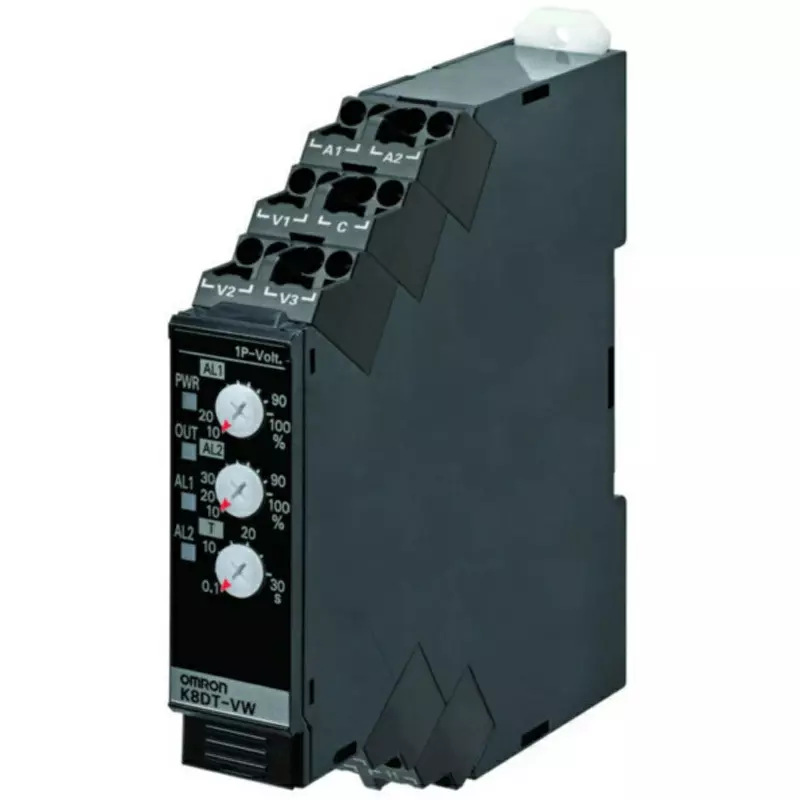

Single-Phase Over/Under Voltage Relay |
Model No |
K8DT-VW3CA |
Applicable Standard |
EN 60947-5-1 Installation Environment: Pollution Degree 2, Overvoltage Category III |
Protection Class |
Terminal: IP20 |
Type of Sign |
Din Rail Mounting, Screw Mounting |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Suitable For |
(Wire Type) Stranded Wire, Solid Wire, Ferrule Terminal (Cross-Sectional Area) 0.25 to 1.5 mm (AWG24 to 16) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Output Type |
Relay (1c) |
Width (mm) |
17.5 |
LED Color |
PWR: Green, OUT: Yellow, AL1: Red, AL2: Red |
Rating |
(Relay Output Contact) Rated Load: AC 250 V 5 A, DC 30 V 5 A (Resistive Load), AC 250 V 1 A (Inductive Load), DC 48 V 0.2 A (Inductive Load) Minimum Applicable Load: DC 5 V, 10 mA (Reference Value) Mechanical Life: 10 Million Times Electrical Life: (AC 250 V/DC 30 V 5 A) 50,000 Times, (AC 250 V/ DC 30 V 3 A) 100,000 Times |
Input Power |
AC 100 to 240 V |
