| Mass (g) | About 35 g |
| Terminal Shape | Plug-In Terminal |
| CR Circuit | Included |
| Operating Temperature Range | -55~60°C (No Condensation or Freezing) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 35 g |
Terminal Shape |
Plug-In Terminal |
CR Circuit |
Included |
Operating Temperature Range |
-55~60°C (No Condensation or Freezing) |
Contact Configuration |
4c |
Rated Voltage (V) |
AC100/110 |
No. of Pole |
4 |
Connection Type |
Standard Type |
Power Consumption |
Approx. 0.9 to 1.3 (60 Hz) |
Insulation Resistance |
100 mΩ or more (Measured with the DC500 V Insulation Resistance Meter at the Same Location as the Withstand Voltage) |
Withstand Voltage |
Between Coil and Contact, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts of the Same Polarity: AC1000 V/min 50/60 Hz |
Monotaro ID |
35080534 |

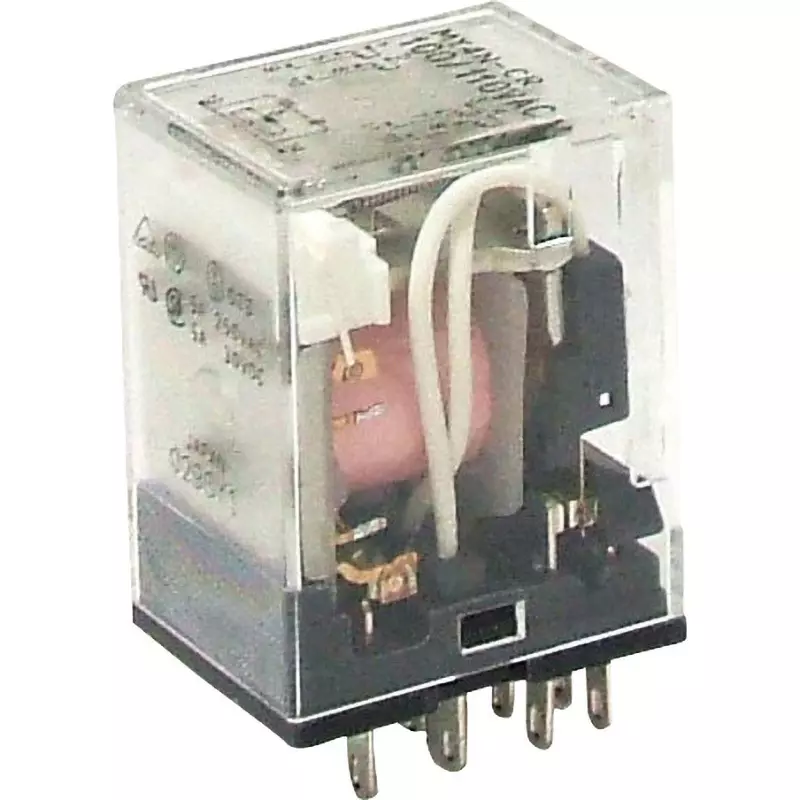

Type of Product |
Mini Power Relay |
Model No |
MY4-CR AC100/110 |
Maximum contact current (A) |
3 A |
Applicable Standard |
(CSA) Standard Number: C22.2 No.0, No.14 File No.: LR31928, (LR)98/10014, (UL) Standard Number: UL508 File No.: E41515, (VDE)112467UG, (Other) Compliance Standards: Electrical Appliance and Material Safety Law Compliant Products |
Country of Origin |
JAPAN |
With or Without Diode |
None |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

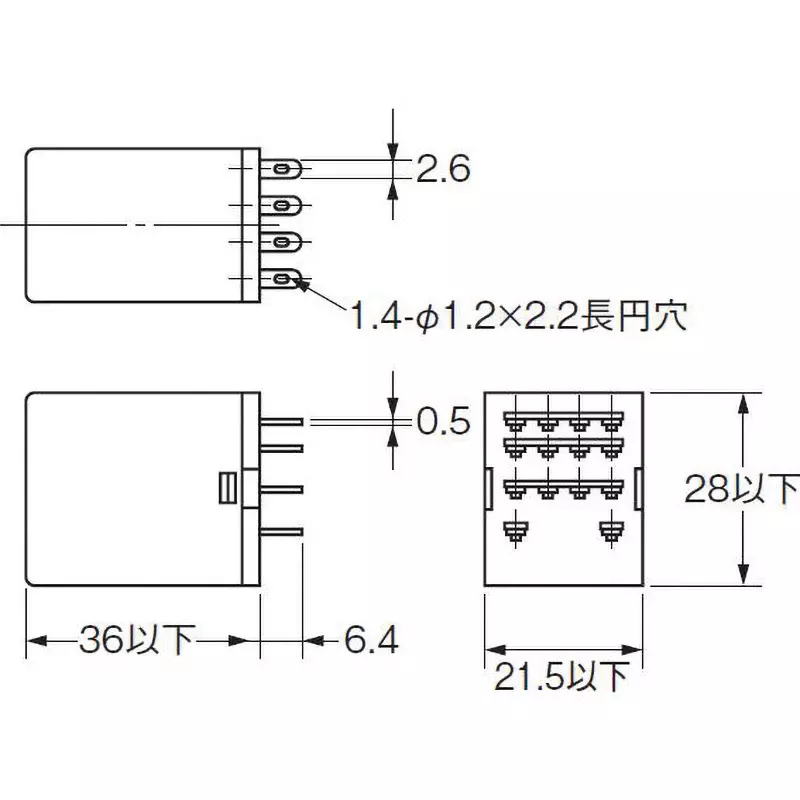

Outer Dimensions (W x D x H) (mm) |
21.5 or less × 42.4 or less × 28 or less |
