Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 2 |
| Terminal Shape | Printed circuit board terminal |
| Return Voltage | More than 10 |
| Contact Configuration | 1C Contact |
Mass (g) |
About 2 |
Terminal Shape |
Printed circuit board terminal |
Return Voltage |
More than 10 |
Contact Configuration |
1C Contact |
Rated Voltage (V) |
DC24 |
No. of Pole |
1-Pole |
Monotaro ID |
8588054 |
Operating Voltage |
80% or less |
Type of Product |

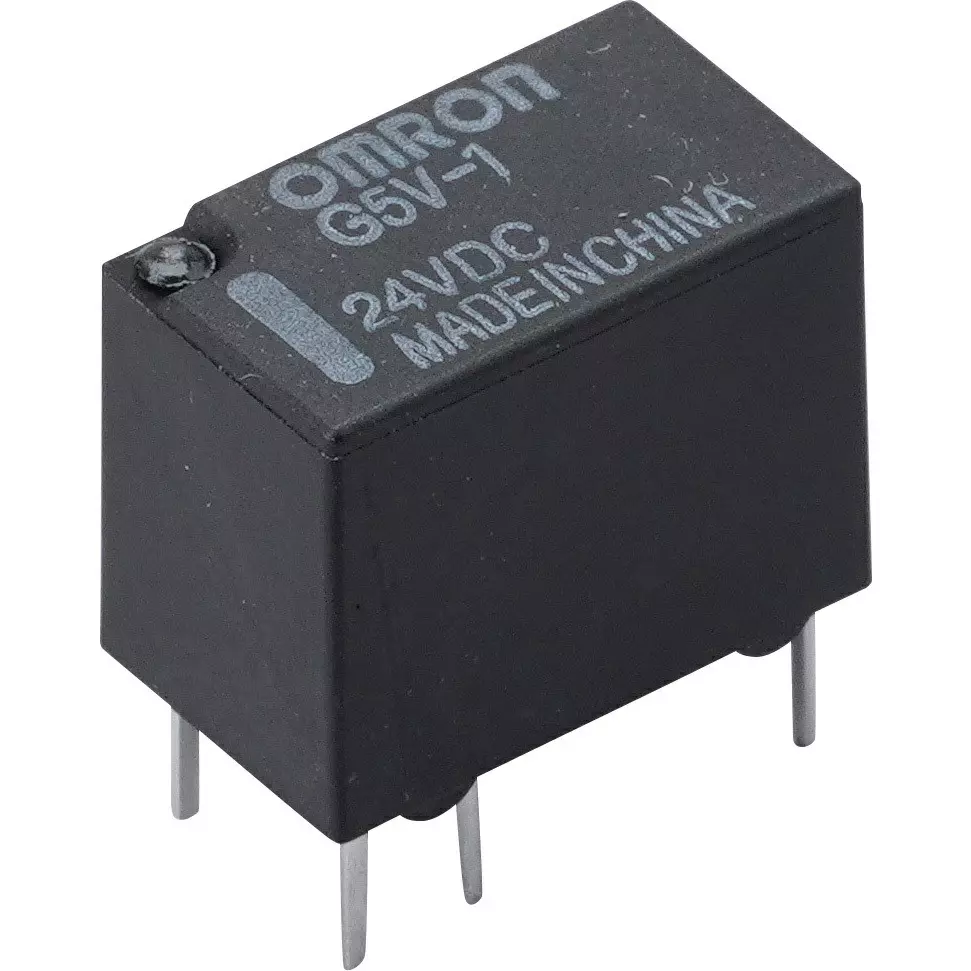

Micro Relay (Small, High-Sensitivity Single-Pole Signal Relay) |
Standard |
RoHS Directive, UL60950, UL508, CSA (C22.2 No.0, No.14, No.950) |
Model No |
G5V-1 DC24 |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Series |
G5V-1 Series |
Power Consumption (mW) |
About 150 |
Protection Class |
Plastic seal type |
Coil Voltage |
DC24 V |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 to 10Hz Single amplitude 1.65mm (double amplitude 3.3mm) |
Vibration Resistance (Destruction) |
10 to 55 to 10Hz Single amplitude 1.65mm (double amplitude 3.3mm) |
Outer Dimensions |
7.5x12.5x10 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-40~+70 (no freezing or condensation) |
Manufacturer Part Number |
G5V-1 DC24 |
Contact Resistance (ohm) |
100 or less (DC1V 10mA voltage drop method) |
Insulation Resistance (MOhm) |
1000 or more |
