| Mass (g) | About 40 g |
| Terminal Shape | Plug-In Terminal |
| CR Circuit | None |
| Operating Temperature Range | -25~40°C (No Condensation or Freezing) [-25~55°C When Current is 4A or less] |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 40 g |
Terminal Shape |
Plug-In Terminal |
CR Circuit |
None |
Operating Temperature Range |
-25~40°C (No Condensation or Freezing) [-25~55°C When Current is 4A or less] |
Contact Configuration |
2c |
Rated Voltage (V) |
AC24 |
No. of Pole |
2 |
Connection Type |
Standard Type |
Power Consumption |
About 1.0-1.2 (60 Hz) |
Withstand Voltage |
Between Coil and Contact, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts of the Same Polarity: AC1000 V/min 50/60 Hz |
Monotaro ID |
35080586 |
Type of Product |

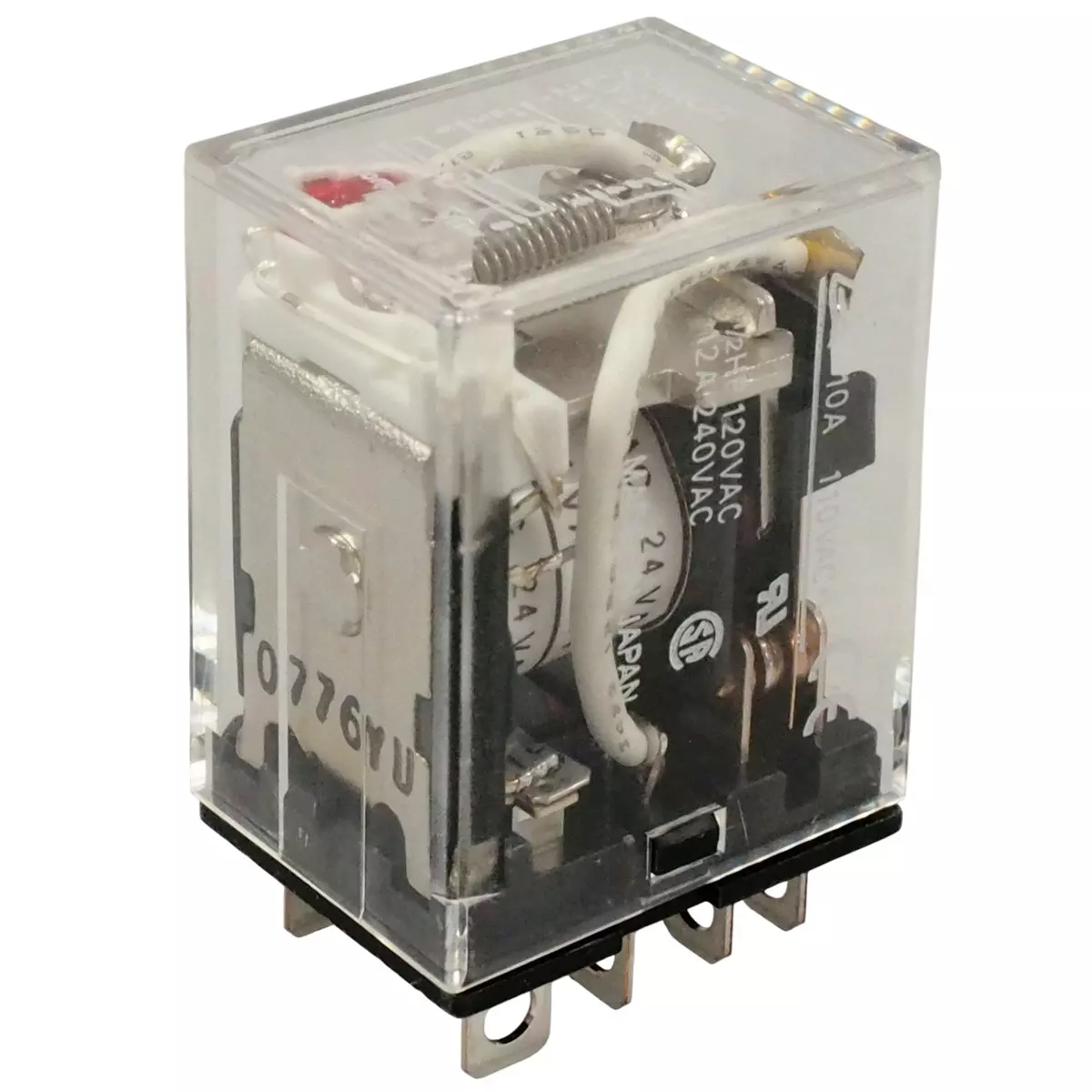

Bi-Power Relay |
Model No |
LY2N AC24 |
Current Rating |
10 A |
Classification |
Built-In Operation Indicator |
Maximum contact current (A) |
Resistive Load: 10 A, Inductive Load: 10 A |
Shape |
LY2N |
Applicable Standard |
(UL) Standard Number: UL508 File No.: E41643, (CSA) Standard Number: C22.2 No.0, No.14 File No.: LR31928, (TUV) R50030064, (SEV) 98.5 50071.02, (Other) Compliance Standards: Electrical Appliance and Material Safety Law Compliant Products |
Protection Class |
In a Case |
Country of Origin |
Japan |
With or Without Diode |
None |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
