| Mass (g) | About 100 |
| Power Consumption | 2.5 VA or less |
| Withstand Voltage | 2000VAC for 1 minute Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals |
| Monotaro ID | 24414084 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 100 |
Power Consumption |
2.5 VA or less |
Withstand Voltage |
2000VAC for 1 minute Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals |
Monotaro ID |
24414084 |
Rated Insulation Voltage (V) |
AC600 |
Type of Product |

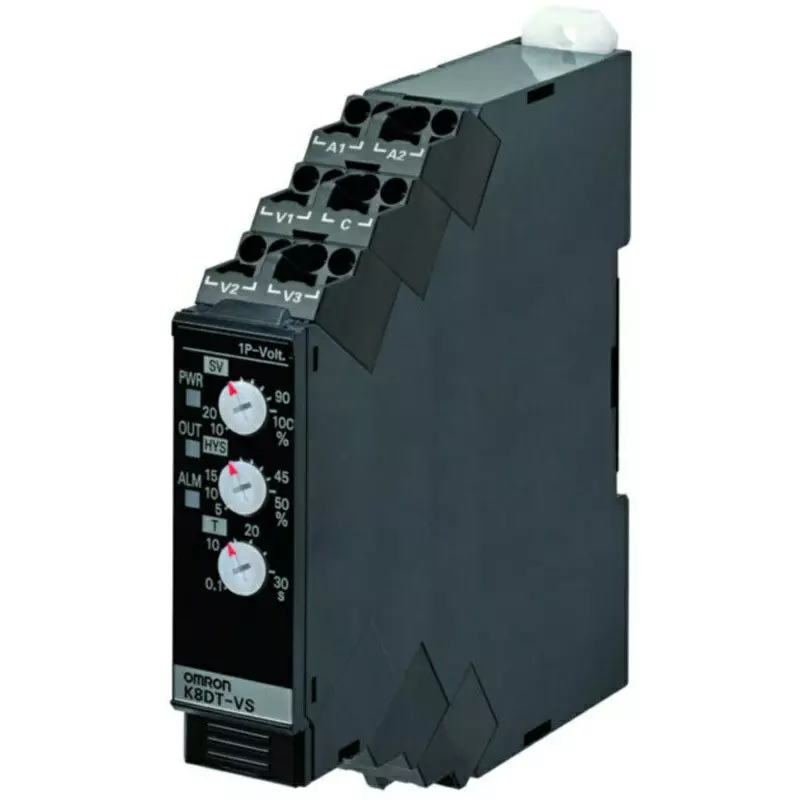

Single-Phase Voltage Relay |
Applicable Standard |
EN 60947-5-1 Installation environment: Pollution degree 2, Overvoltage category III |
Protection Class |
Terminal: IP20 |
Type of Sign |
DIN rail mounting, screw mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions |
17.5x90x90 mm |
Overload Withstand |
115% of the maximum range input 125% 10 seconds (within a range not exceeding 600 VAC) |
Suitable For |
(Wire type) Stranded wire, solid wire, ferrule terminal (cross-sectional area) 0.25 to 1.5 mm ² (AWG24 to 16) |
Case Material |
PC UL94-V0 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage |
AC100 to 240 |
Output Type |
Relay (1c) |
Storage Temperature |
-25 to +65℃ |
Width (mm) |
17.5 |
Manufacturer Part Number |
K8DT-VS2CA |
Insulation Resistance (MOhm) |
20 or more Between all external terminals and the case Between all power supply terminals and all input terminals Between all power supply terminals and all output terminals Between all input terminals and all output terminals |
Rating |
(Relay output contact) Rated load: AC250V 5A, DC30V 5A (resistive load), AC250V 1A (inductive load), DC48V 0.2A (inductive load) Minimum applicable load: DC5V, 10mA (reference value) Mechanical life: 10 million times Electrical life: (AC250V/DC30V 5A) 50,000 times, (AC250V/DC30V 3A) 100,000 times |
Exterior Color |
(Case) N1.5 |
Input Power |
AC100 to 240 V |
Altitude (m) |
2000 or less |
