Ships within 19 days
Model No
View
View
View
View
| Contact Configuration | 1C |
| Coil Resistance | 3840 Ω |
| Monotaro ID | 40800954 |

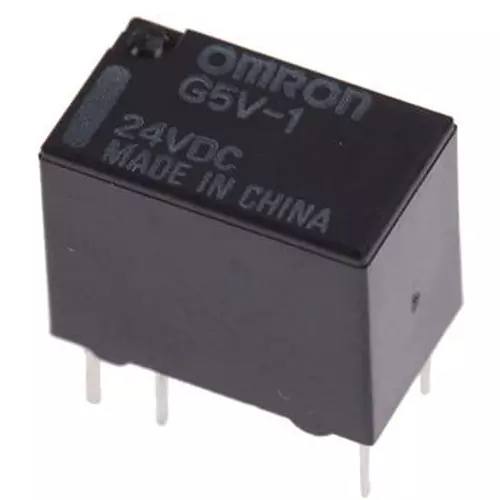

| Type of Product | Micro Relay (Small, High-Sensitivity Single-Pole Signal Relay) |
Contact Configuration |
1C |
Coil Resistance |
3840 Ω |
Monotaro ID |
40800954 |
Type of Product |
Micro Relay (Small, High-Sensitivity Single-Pole Signal Relay) |
Application |
signal |
Model No |
G5V-1 24DC |
Series |
G5V-1 Series |
RoHS Directive |
Correspondence |
Coil Voltage |
DC 24 V |
Terminal Type |
Through hole |
Switching Current |
1 Amp |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions, Length L x Width W x Height H (mm) |
12.5x7.5x10 |
Mounting position |
Board mounting |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Specifications |
UL, CSA, FCC part 68 compatible. G5 V-1 series. Completely sealed structure High sensitivity SPDT, nominal coil power 150 mW Ultra miniature, 12.5x7.5x10 mm (L)xWxH) |
Operating Temperature (c) |
-40 to +70 |
