| Mass (g) | About 2 |
| Terminal Shape | Printed circuit board terminal |
| Contact Configuration | 2c |
| Function | (Relay) Single stable type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 2 |
Terminal Shape |
Printed circuit board terminal |
Contact Configuration |
2c |
Function |
(Relay) Single stable type |
No. of Pole |
2-pole |
Monotaro ID |
41198983 |
Type of Product |
Surface Mount Relay |
Standard |
UL, CSA standard, BSI (EN62368-1) certification |

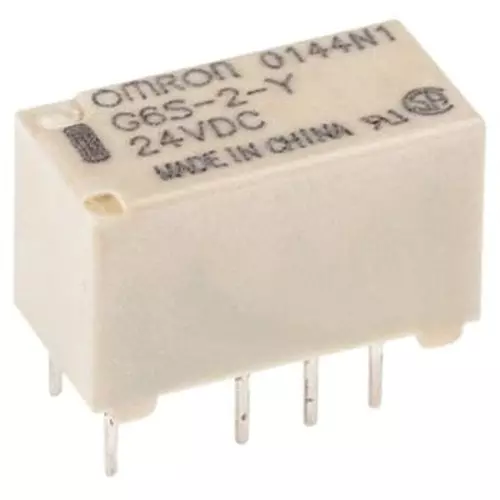

Model No |
G6S-2-Y 24DC |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Protection Class |
Plastic seal type |
Height (mm) |
9.1999999999999993 |
Type of Sign |
Board mounting |
Length (mm) |
15 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 to 10Hz Single amplitude 1.65 mm (double amplitude 3.3 mm) |
Shock Resistance (Malfunction) |
750m/s² |
Vibration Resistance (Destruction) |
10 to 55 to 10 Hz, single amplitude 2.5 mm (double amplitude 5 mm) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Width (mm) |
7.5 |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40 to +70 (with no icing or condensation) |
Contact Resistance (ohm) |
75 or less (DC1V 10mA voltage drop method) |
Insulation Resistance (MOhm) |
1000 mohm or more (with DC500 V mega) |
Rated Coil Voltage |
DC24 |
