Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 35 g |
| Terminal Shape | Plug-In Terminal |
| CR Circuit | None |
| Operating Temperature Range | -25~60°C (No Condensation or Freezing) |
Mass (g) |
About 35 g |
Terminal Shape |
Plug-In Terminal |
CR Circuit |
None |
Operating Temperature Range |
-25~60°C (No Condensation or Freezing) |
Contact Configuration |
4C |
Rated Voltage (V) |
AC100/110 |
Contact Resistance |
100 mΩ or less (DC5 V 1 A Voltage Drop Method) |
No. of Pole |
4 Pole |
Connection Type |
Standard Type |
Power Consumption |
Approx. 0.9 to 1.3 (60 Hz) |
Insulation Resistance |
100 mΩ or more (Measured with the DC500 V Insulation Resistance Meter at the Same Location as the Withstand Voltage) |
Withstand Voltage |
Between Coil and Contact, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts of the Same Polarity: AC700 V/min 50/60 Hz |
Monotaro ID |
39088926 |
Type of Product |
Mini Power Relay |
Model No |
MY4ZN-CBG AC100/110 |
Series |
MY4Z Series |
Classification |
Standard Type |
Operation Ambient Temperature |
-25°C to 60°C (No Freezing or Condensation) |
Maximum contact current (A) |
1 A |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
With or Without Diode |
None |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

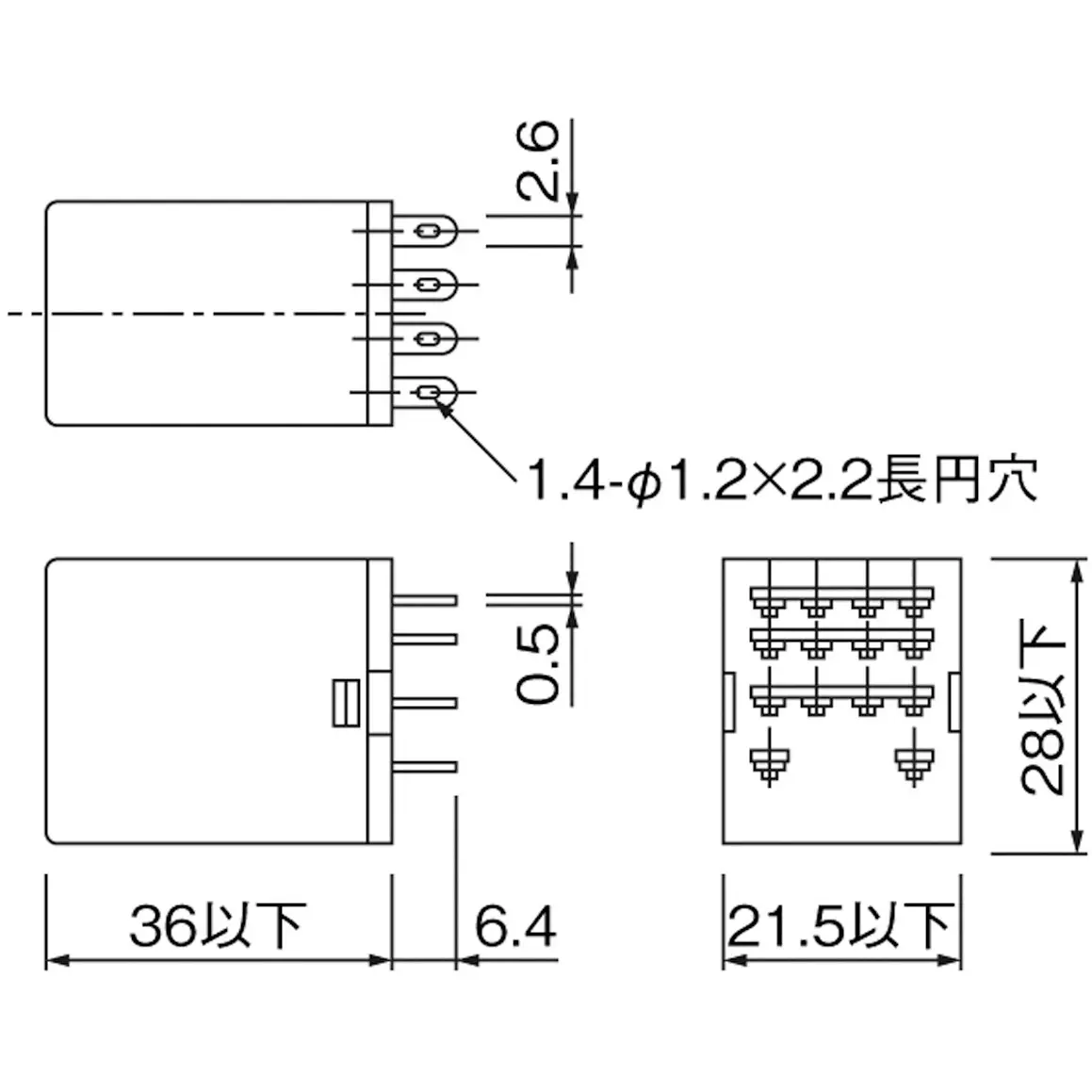

Outer Dimensions (W x D x H) (mm) |
21.5 or less × 42.4 or less × 28 or less |
