Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 160 g |
| Terminal Shape | Screw Terminal |
| Return Voltage | Ratio to Rated Voltage: 30% or more (60 Hz)/25% or more (50 Hz) |
| Operating Temperature Range | -10~55°C (No Condensation or Freezing) |
Mass (g) |
About 160 g |
Terminal Shape |
Screw Terminal |
Return Voltage |
Ratio to Rated Voltage: 30% or more (60 Hz)/25% or more (50 Hz) |
Operating Temperature Range |
-10~55°C (No Condensation or Freezing) |
Contact Configuration |
2c |
Rated Voltage (V) |
AC100/110 |
Contact Resistance |
25 mΩ or less (DC5 V 1 A Voltage Drop Method) |
No. of Pole |
2 |
Power Consumption |
At Startup: About 4.1, Rating: About 3.5 |
Insulation Resistance |
100 mΩ or more (Measured with the DC500 V Insulation Resistance Meter at the Same Location as the Withstand Voltage) |
Monotaro ID |
46645216 |
Operating Voltage |
Rated Voltage: 80% or less |
Type of Product |
Power Relay |
Model No |

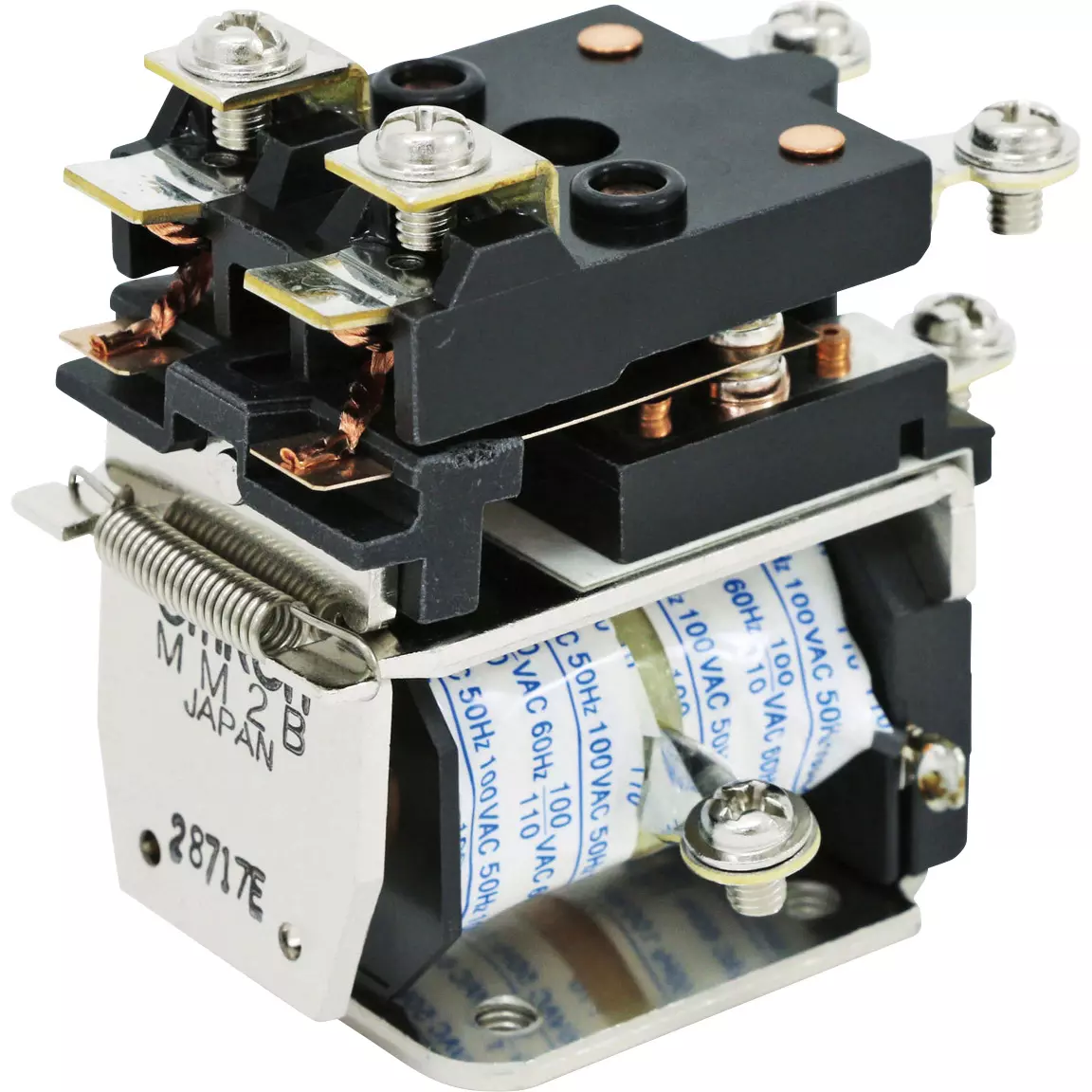

MM2B-AC100/110 |
Ambient Humidity to Use |
5~85%RH |
Series |
MM2 Series |
Classification |
Standard Type |
Operation Ambient Temperature |
-10°C to +55°C (With No Icing or Condensation) |
Shape |
Exposure Type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55°C to 10 Hz, Single Amplitude 0.75 mm (Double Amplitude 1.5 mm) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
