Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 4.5 |
| Terminal Shape | Printed Circuit Board Terminal |
| Contact Configuration | 1A1B |
| Function | Single Stable Type |
Mass (g) |
About 4.5 |
Terminal Shape |
Printed Circuit Board Terminal |
Contact Configuration |
1A1B |
Function |
Single Stable Type |
Type |
Power relay |
Rated Voltage (V) |
DC 24 |
No. of Pole |
2 Pole |
Monotaro ID |
8588264 |
Type of Product |
Power Relay |
Standard |
UL, CSA standard certified standard product |
Model No |

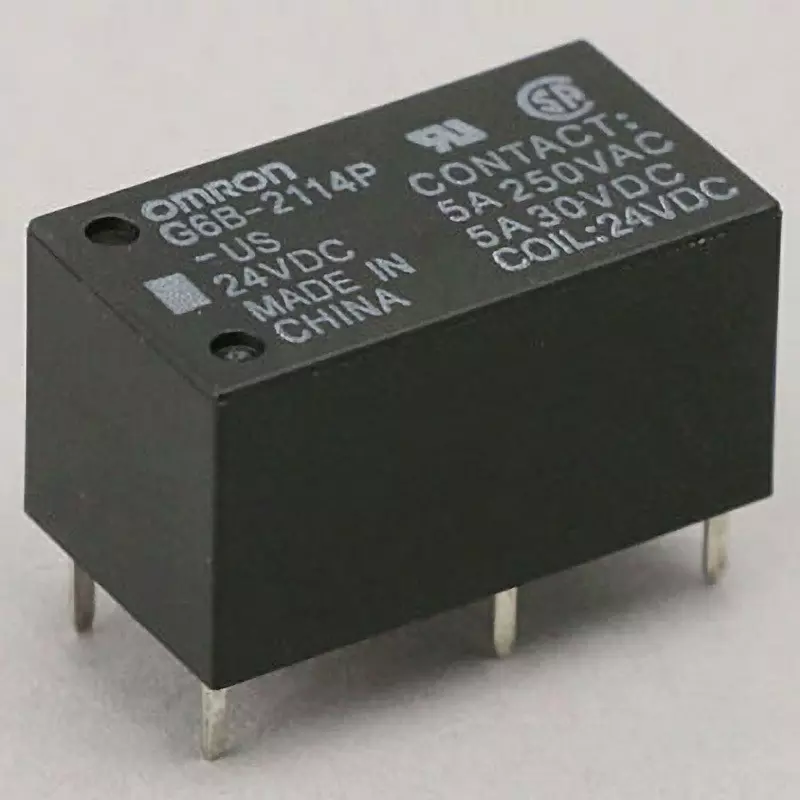

G6B-2114P-US DC24V |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Classification |
Standard type |
Terminal Fitting Type |
Dedicated type for PCB mounting |
Power Consumption (mW) |
About 300 |
Protection Class |
Plastic seal type |
Coil Voltage |
DC24 V |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to +70 (with no icing or condensation) |
Manufacturer Part Number |
G6B-2114P-US DC24V |
Contact Resistance (ohm) |
30 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
1000 or more (DC500V) |
Specifications |
Standard type |
Installation Altitude (m) |
Printed Circuit Board Mounting Type |
Looking for bulk pricing or different specifications?
