| Mass (g) | About 2.7 |
| Terminal Shape | Printed circuit board terminal |
| Contact Configuration | 1c |
| Function | Single staple type |
Mass (g) |
About 2.7 |
Terminal Shape |
Printed circuit board terminal |
Contact Configuration |
1c |
Function |
Single staple type |
Type |
Printed circuit board relays |
Rated Voltage (V) |
DC24 |
No. of Pole |
1 pole |
Monotaro ID |
39069247 |
Type of Product |
Micro Relay |
Standard |
UL (No.E41515), CSA (No.LR31928) standard certified standard product |
Model No |

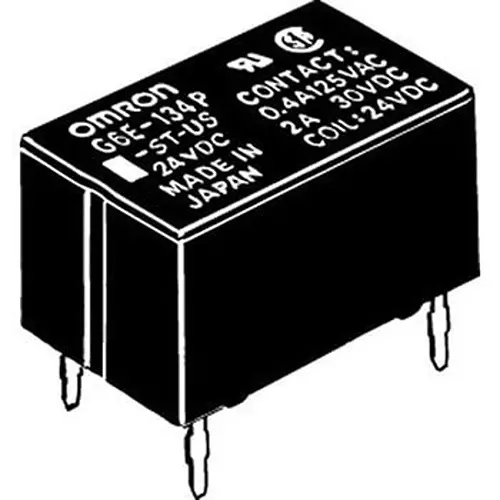

G6E-134P-US-U DC24 |
Shock Resistance |
1000m/s² |
Ambient Humidity to Use |
5 to 85%RH |
Classification |
Standard type |
Protection Class |
Plastic seal type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 to 10Hz Single amplitude 1.65 mm (double amplitude 3.3 mm) |
Shock Resistance (Malfunction) |
300m/s² |
Vibration Resistance (Destruction) |
10 to 55 to 10 Hz, single amplitude 2.5 mm (double amplitude 5 mm) |
Terminal Structure |
Printed circuit board terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
-40 to +70 (with no icing or condensation) |
Contact Resistance (ohm) |
50 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
1000 mohm or more (with DC500 V mega) |
Specifications |
Ultrasonic cleaning compatible type |
