| Mass (g) | About 35 g |
| Terminal Shape | Plug-In Terminals |
| CR Circuit | None |
| Operating Temperature Range | -55~60°C (No Condensation or Freezing) |
Mass (g) |
About 35 g |
Terminal Shape |
Plug-In Terminals |
CR Circuit |
None |
Operating Temperature Range |
-55~60°C (No Condensation or Freezing) |
Contact Configuration |
4C |
Rated Voltage (V) |
DC100/110 |
No. of Pole |
4 Pole |
Connection Type |
Standard Type |
Power Consumption |
About 0.9 |
Withstand Voltage |
Between Coil and Contact, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts of the Same Polarity: AC1000 V/min 50/60 Hz |
Monotaro ID |
2493075 |
Type of Product |

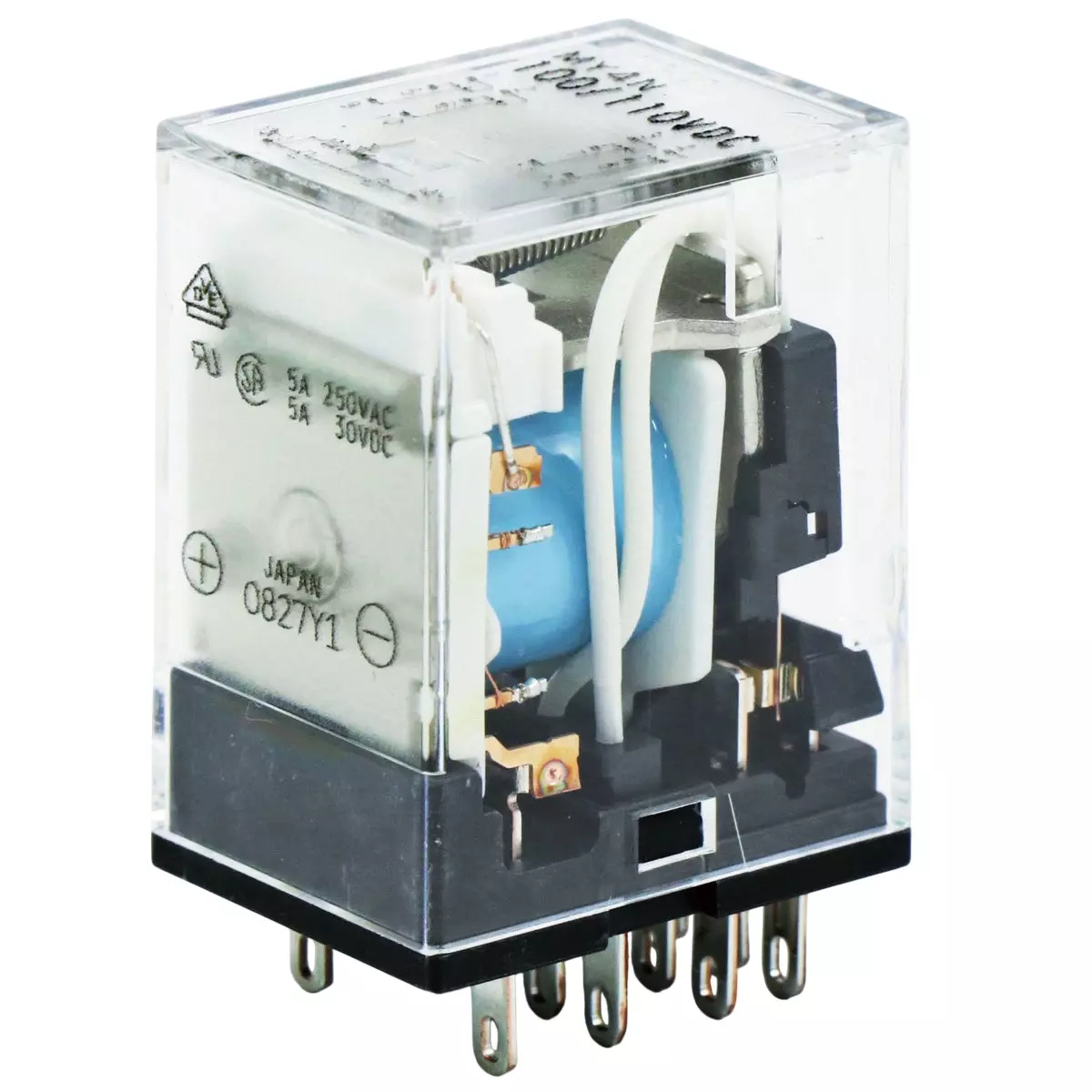

Mini Power Relay |
Model No |
MY4N DC100/110 |
Series |
MY4 Series |
Maximum contact current (A) |
3 A |
Applicable Standard |
(CSA) Standard Number: C22.2 No.0, No.14 File No.: LR31928, (LR)98/10014, (UL) Standard Number: UL508 File No.: E41515, (VDE)112467UG, (Other) Compliance Standards: Electrical Appliance and Material Safety Law Compliant Products |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
With or Without Diode |
None |
No. Of Pin |
14 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
With or Without Indication Lamp |
Included |
Notes |
Since We Cannot Accept Returns, We Will Change to Ordering As Soon As Stock Runs Out |
