| Mass (g) | About 40 g |
| Terminal Shape | Plug-In Terminal |
| CR Circuit | None |
| Operating Temperature Range | -25~40°C (No Condensation or Freezing) [-25~55°C When Current is 4A or less] |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 40 g |
Terminal Shape |
Plug-In Terminal |
CR Circuit |
None |
Operating Temperature Range |
-25~40°C (No Condensation or Freezing) [-25~55°C When Current is 4A or less] |
Contact Configuration |
2c |
Rated Voltage (V) |
AC12 |
Contact Resistance |
50 mΩ or less (DC5 V 1 A Voltage Drop Method) |
No. of Pole |
2 |
Power Consumption |
About 1.0-1.2 (60 Hz) |
Insulation Resistance |
100 mΩ or more (Measure the Same Part as the Withstand Voltage with a DC500 V Insulation Resistance Meter) |
Monotaro ID |
46633657 |

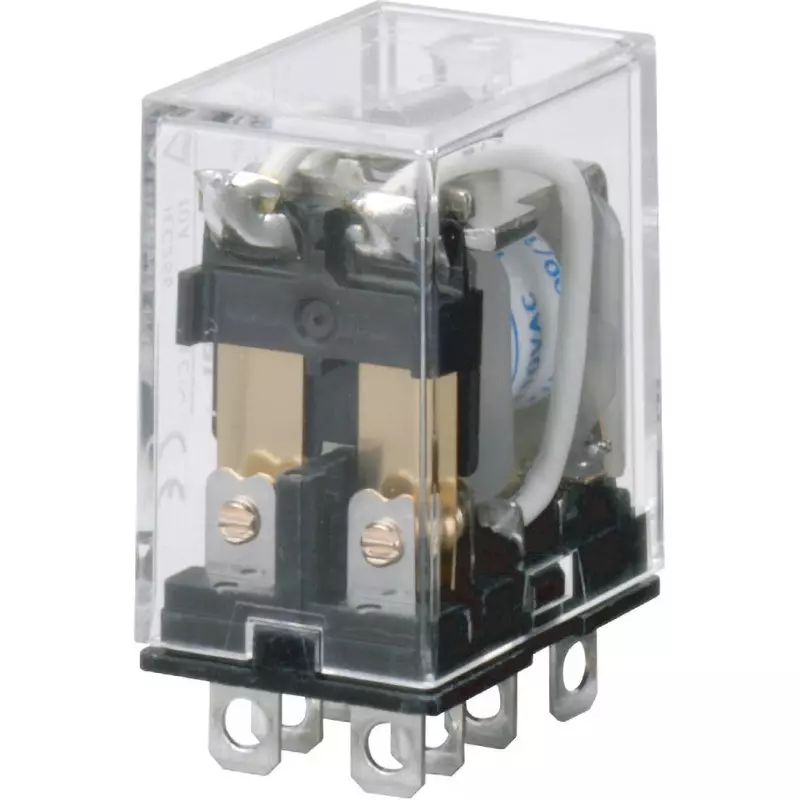

Type of Product |
Bi-Power Relay |
Model No |
LY2N-AC12 |
Classification |
Built-In Operation Indicator |
Operation Ambient Temperature |
-25°C to 40°C (With No Icing or Condensation) <br> -25°C to 55°C ° C when current is 4A or less |
Shape |
LY2N |
Protection Class |
In a Case |
Country of Origin |
JAPAN |
Operation Indicator |
LED |
With or Without Diode |
None |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less × 42.4 or less × 28 or less |
