Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 17 |
| Terminal Shape | Printed circuit board terminal |
| Return Voltage | 30% or more of the rated voltage |
| Contact Configuration | 2C |
Mass (g) |
About 17 |
Terminal Shape |
Printed circuit board terminal |
Return Voltage |
30% or more of the rated voltage |
Contact Configuration |
2C |
Mechanical Durability |
10 million times or more (opening/closing frequency 18,000 times/h) |
Type |
Power Relay |
Contact Resistance |
less than 50 |
No. of Pole |
2 Poles |
Insulation Resistance |
1000 or more (Measure the same part as the withstand voltage with a DC500V insulation resistance meter) |
Monotaro ID |
47914677 |
Operating Voltage |
80% or less of rated voltage |
Type of Product |
Power Relay |
Model No |

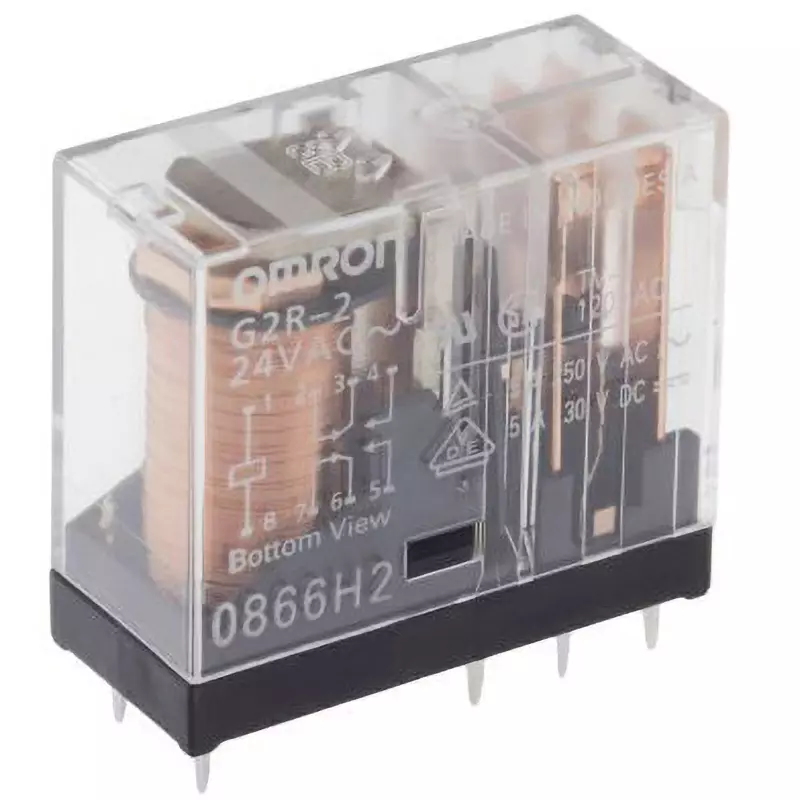

G2R224AC |
Contact Material |
Silver |
Electrical Durability |
100,000 times or more (rated load opening / closing frequency 1800 times / h) |
Protection Class |
Flux resistant type (T + type is closed type) |
Height (mm) |
25.5 |
Length (mm) |
29 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions, Length L x Width W x Height H (mm) |
29x13x25.5 |
Ambient Humidity (% RH) |
5 to 85 |
Protection |
Standard type |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-40 to +70 (no freezing or condensation) |
Category |
Power Relay |
