Ships within 19 days
Model No
View
View
View
View
| Diode | None |
| Terminal Shape | Plug-in terminals |
| CR Circuit | None |
| Return Voltage | (Set voltage) 80% or less |
Diode |
None |
Terminal Shape |
Plug-in terminals |
CR Circuit |
None |
Return Voltage |
(Set voltage) 80% or less |
Contact Configuration |
2C |
Type |
Power relay |
Contact Resistance |
50 mΩ or less (DC5V 1A voltage drop method) |
No. of Pole |
2 |
Connection Type |
Standard type |
Insulation Resistance |
100 mΩ (Measure the same part of the withstand voltage with a DC500V insulation resistance meter) |
Monotaro ID |
39088393 |
Type of Product |

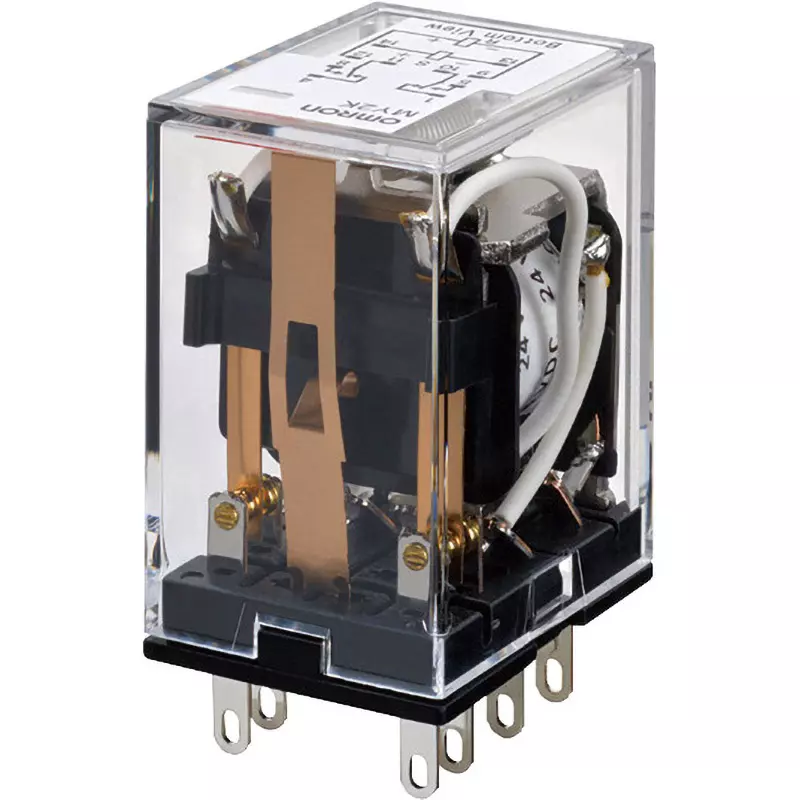

Mini Power Relay |
Rated Voltage |
AC 24 V |
Model No |
MY2K AC24 |
Shock Resistance |
1000 m/s |
Ambient Humidity to Use |
5-85%RH |
Classification |
Latching type (coil latching) |
Operation Ambient Temperature |
-55 to 60 ℃ (no freezing or condensation) |
Shape |
MY2K |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
Mass |
About 30 g |
Outer Dimensions |
21.5x28x36 mm |
Number of Pin Terminals |
10 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
